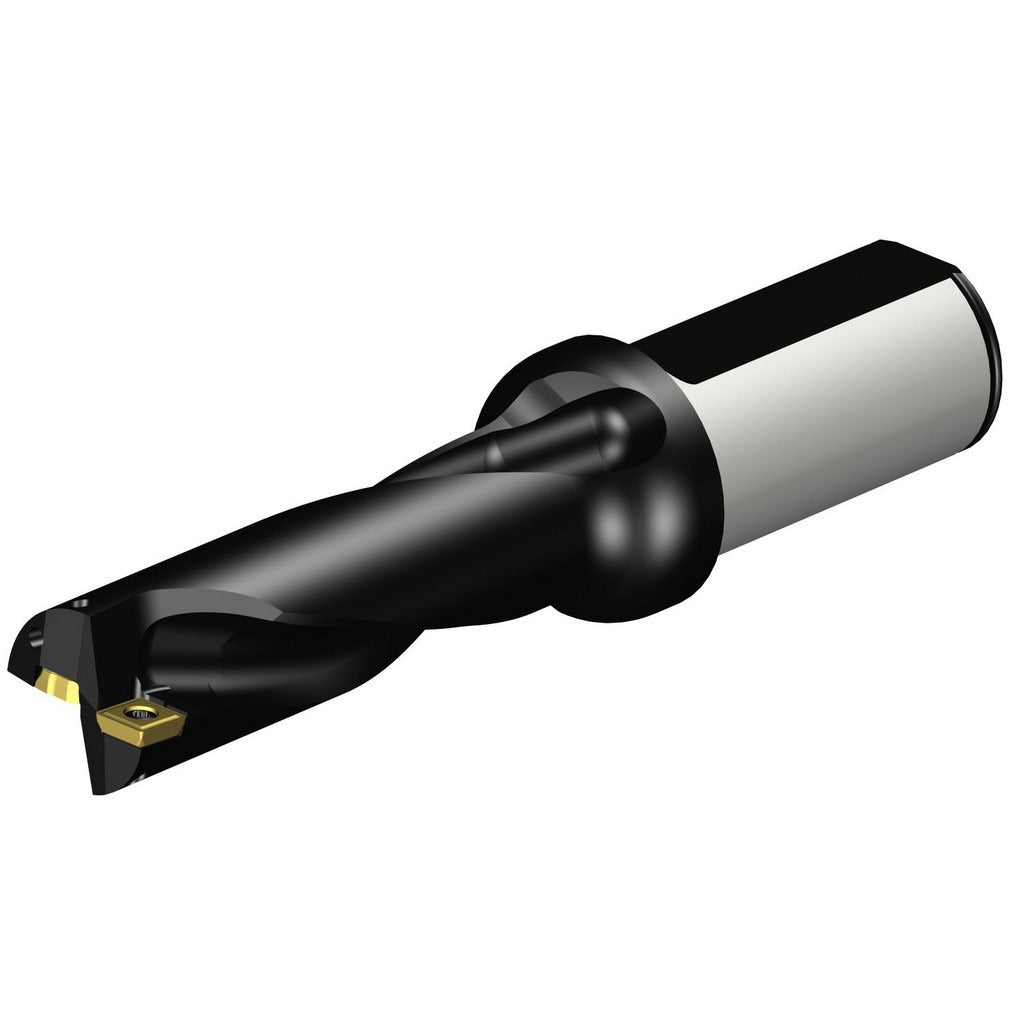

Sandvik Coromant 5723776 Indexable Insert Drill 1.062in 3xd

Product Description

The SANDVIK COROMANT 5723776 is a straight-shank indexable insert drill designed for accurate, high-productivity hole-making in metal cutting applications. The body accepts two indexable inserts in the CoroDrill 880 style (A880..LXxx-03) and delivers a maximum drill depth of 3.3134 inches at a 3xD depth-to-diameter ratio. The drill diameter measures 1.062 inches (26.97 mm), and the 1.25 inch straight cylindrical shank provides solid, repeatable tool holding in standard drill chucks or hydraulic holders. Coolant-through capability supports chip evacuation and tool life in demanding materials. The steel body construction keeps weight at 1.59 pounds.

This indexable insert drill is suited for production machining environments in job shops, manufacturing facilities, and aerospace or general metalworking operations. It is intended for right-hand cutting and operates with a 3xD depth ratio, making it appropriate for through-holes and blind holes in the short-to-medium depth range. The flute length of 3.9665 inches and body length of 3.345 inches support consistent chip clearance through the cut. Machinists and CNC operators working with vertical machining centers, horizontal mills, or drill presses will find this tool a direct-fit option for the CoroDrill 880 insert platform.

Key Features

• 3xD depth-to-diameter ratio with a maximum drill depth of 3.3134 inches
• Compatible with CoroDrill 880 A880..LXxx-03 insert style, takes 2 inserts
• Coolant-through design aids chip evacuation and extends insert life
• Right-hand cutting direction for standard spindle rotation
• 1.25 inch straight cylindrical shank fits common toolholding systems
• Steel body construction at 1.59 pounds for rigid, low-vibration performance

Compatibility

Designed for use with CoroDrill 880 series indexable inserts in the A880..LXxx-03 drill style, accepting insert size 0.1181 inches (3.00 mm). Specific machine compatibility depends on toolholder bore diameter and spindle interface; verify shank diameter and length against your toolholder specification before installation.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the control is in a safe state before mounting or removing the tool. Verify that the toolholder bore matches the 1.25 inch shank diameter and that insert pockets are clean and undamaged before seating new inserts. Follow the tooling manufacturer's insert clamping procedure and confirm runout with a dial indicator before production cuts.
