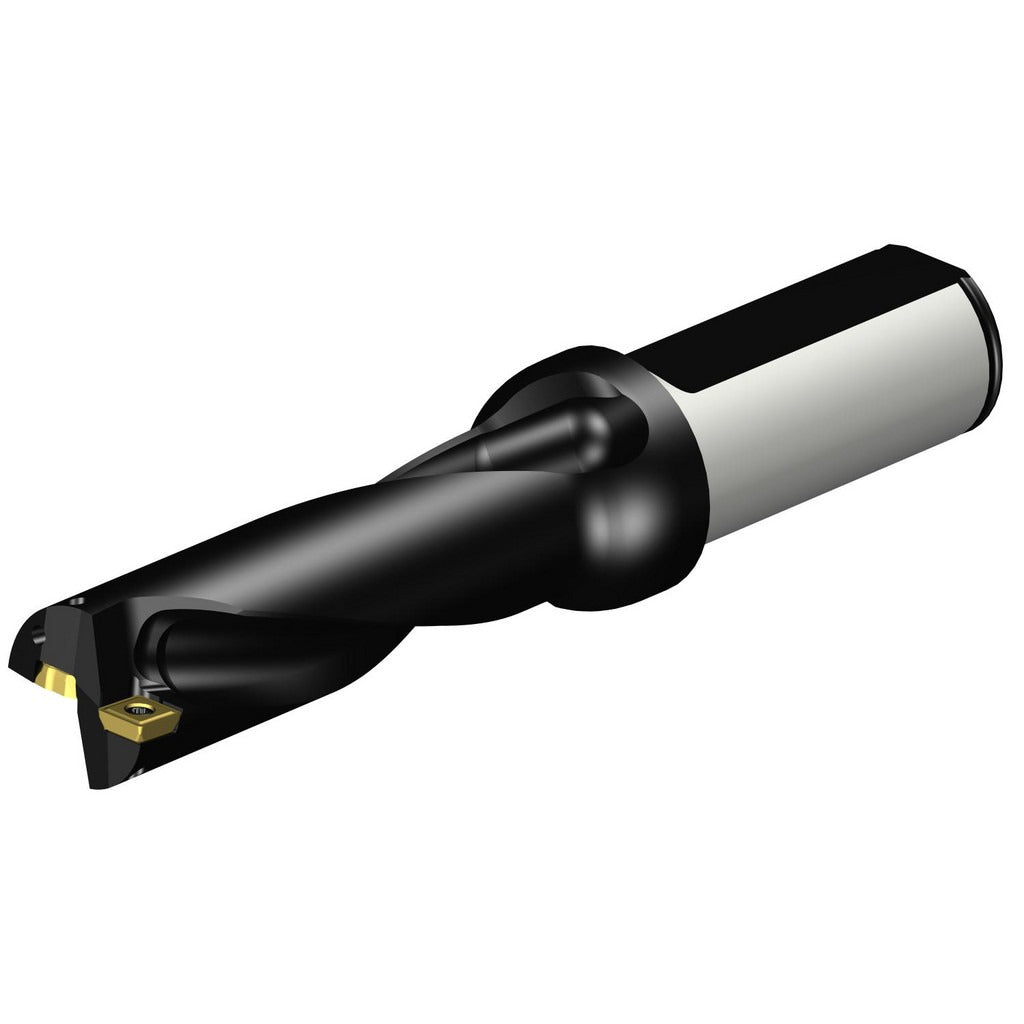

Sandvik Coromant 5723682 Indexable Insert Drill 3xd

Product Description

The SANDVIK COROMANT 5723682 is a straight-shank indexable insert drill designed for high-productivity hole-making in metal cutting applications. Built to the CoroDrill 880 series standard, it accommodates two indexable inserts in the A880..LXxx-03 drill style configuration, allowing quick insert changes without removing the tool body from the machine. The drill body is constructed from steel and delivers a maximum drill diameter of 23.80mm (0.9646 inches) with a 3xD depth-to-diameter ratio, producing holes up to 2.9515 inches deep. Internal coolant-through capability directs cutting fluid directly to the cutting zone, extending insert life and improving chip evacuation. This tool is intended for use by machinists and tooling technicians in CNC turning and machining center environments.

This indexable insert drill is suited for industrial metal cutting operations where repeatable hole quality and rapid insert indexing are priorities. The 1-inch straight cylindrical shank fits standard toolholders used on CNC machining centers and drilling machines. Right-hand cutting direction is standard. With a flute length of 3.4994 inches (88.89mm) and a body length of 2.9530 inches (75.01mm), the tool is configured for 3xD drilling cycles in steel, cast iron, and similar workpiece materials typical of job shop and production machining environments.

Key Features

• 3xD drill depth-to-diameter ratio for deep hole capability in a single pass
• Takes 2 indexable inserts in A880..LXxx-03 drill style for fast changeovers
• Coolant-through design directs fluid to cutting edges for improved chip evacuation and insert life
• 1-inch straight cylindrical shank for compatibility with standard CNC toolholders
• Right-hand cutting direction; steel tool body for rigidity and durability
• Insert size of 0.1102 inches (2.80mm) for precise cutting edge geometry

Compatibility

Compatible with A880..LXxx-03 series indexable drill inserts. Designed as a direct-fit tool body for CoroDrill 880 series inserts in this size class. Verify insert size and drill style designation against your insert inventory before ordering.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with CNC toolholder setup procedures. Ensure the machine spindle is fully stopped and locked out before mounting or dismounting the tool body. Secure the straight shank in a collet or hydraulic toolholder to the toolholder manufacturer's specified clamping procedure. Confirm coolant-through passages are clear and the machine coolant system is connected before initiating a drilling cycle.
