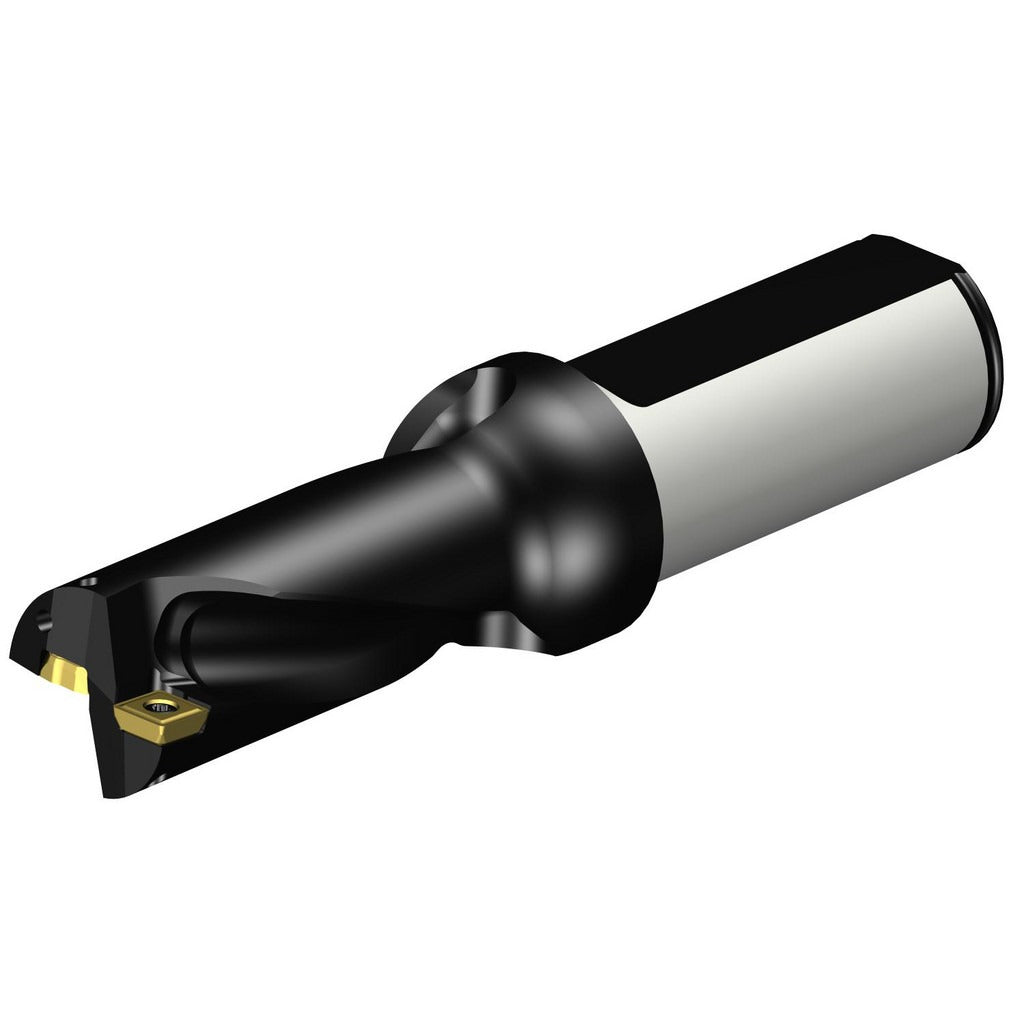

Sandvik Coromant 5723674 Indexable Insert Drill 2xd

Product Description

The SANDVIK COROMANT 5723674 is a 2xD indexable insert drill built for high-productivity hole-making in metal cutting applications. It accepts two indexable inserts in the A880..LXxx-02 drill style configuration and features a 1-inch straight cylindrical shank. The maximum drill diameter is 23.80 mm (0.9646 inches), with a maximum drill depth of 2.0146 inches. Flute length measures 2.5894 inches (65.77 mm), and the body is constructed from steel. Coolant-through capability supports chip evacuation and thermal management at the cutting zone. This drill body is designed for right-hand cutting direction and is appropriate for use in CNC machining centers and turning centers where repeatable, replaceable insert tooling is preferred over solid-carbide drills.

This indexable insert drill is suited for production machining environments where hole diameters in the range of 23.80 mm are required and where insert changeability reduces downtime compared to regrind tooling. The 2xD depth-to-diameter ratio targets applications requiring moderate depth holes with high positional accuracy. It is installed by machinists and CNC operators in manufacturing, job shop, and aerospace or general metalworking environments. Compatible insert style is A880..LXxx-02, and the drill takes 2 inserts total per tool body.

Key Features

• 2xD drill depth-to-diameter ratio for moderate-depth hole making with stability
• Accepts 2 indexable inserts in A880..LXxx-02 style for fast, in-machine insert changes
• Coolant-through design aids chip flushing and cutting-edge temperature control
• Straight cylindrical shank (1 inch diameter) for direct spindle or chuck mounting
• Right-hand cutting direction; steel tool body construction
• Maximum drill depth range of 2.0000 to 3.0000 inches supports a range of setup configurations

Compatibility

Compatible with indexable inserts in drill style A880..LXxx-02 with an insert size of 0.1102 inches (2.80 mm). This tool body is part of the CoroDrill 880 series.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Before mounting, verify that the machine spindle is fully stopped and all energy sources are locked out per shop safety procedures. The 1-inch straight cylindrical shank should be secured in a clean, properly sized collet or hydraulic chuck to the machine tool manufacturer's retention specifications. Confirm coolant-through passages are clear and that the correct A880..LXxx-02 inserts are seated and torqued with the appropriate Torx key before initiating a cutting cycle.
