Sandvik Coromant 5723606 Turning Insert Ccmt 2035

Product Description

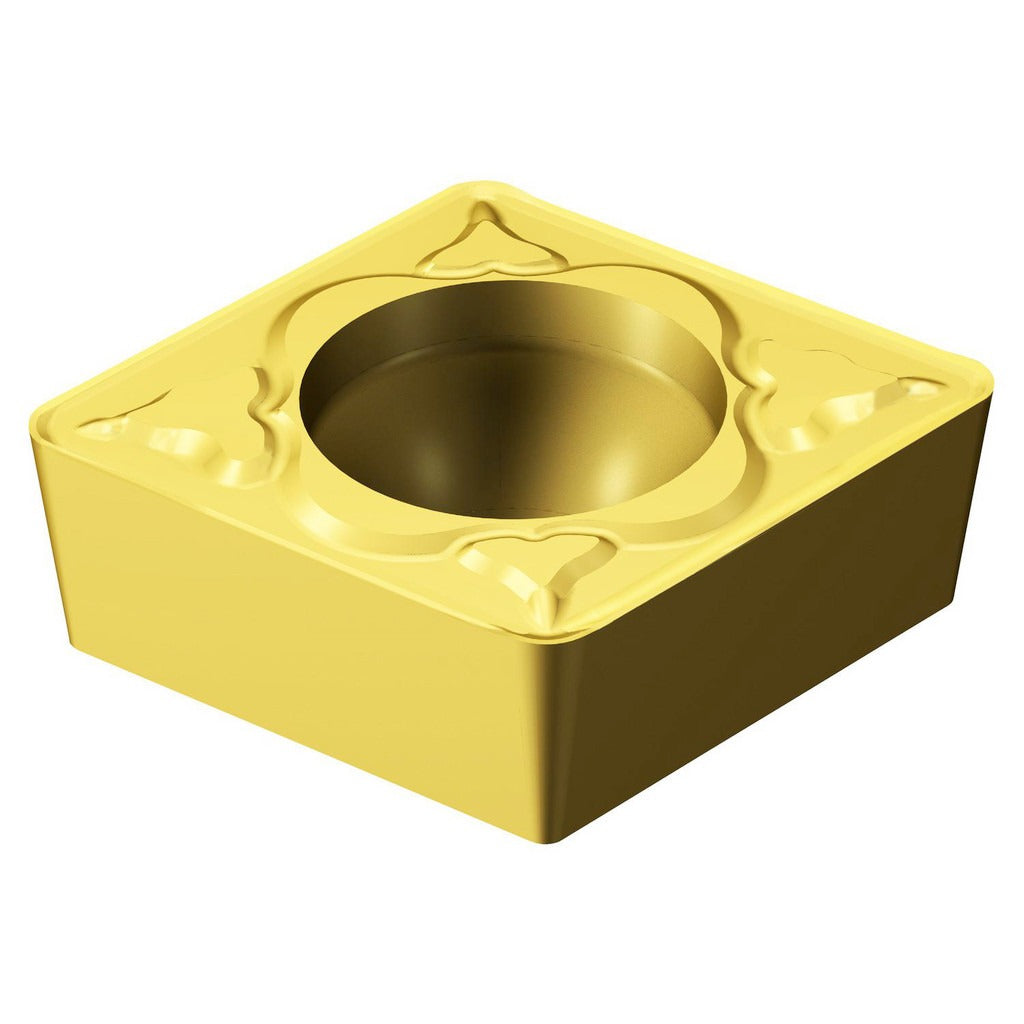

The SANDVIK COROMANT 5723606 is a CCMT-style indexable turning insert in the CoroTurn 107 series, manufactured from solid carbide and PVD-coated with TiAlN and TiN for extended tool life in demanding cutting applications. It features an 80-degree diamond insert shape, a neutral hand orientation, and a corner radius of 0.0313 inches (1/32 inch). The insert measures 0.3493 inches in length with a 0.375-inch inscribed circle diameter and a thickness of 0.1563 inches (5/32 inch). It is installed by licensed machinists and CNC technicians in lathe and turning center applications where consistent chip control and surface finish are required on stainless steel workpieces.

This insert is designed for turning stainless steel and other challenging ISO M-group materials. The MM chip breaker geometry is optimized for medium cutting conditions, providing reliable chip control across a range of feed rates and depths of cut. It is a screw-held insert with a clearance code of C and tolerance code of M, making it compatible with standard CCMT toolholders used in production turning environments, both manual and CNC. Each package contains one insert, with a minimum order quantity of 10 units.

Key Features

• PVD-applied TiAlN and TiN dual coating for heat resistance and wear protection
• MM chip breaker geometry suited for medium turning of stainless steel (ISO M workpiece group)
• 80-degree diamond insert shape (shape code C) with 7-degree relief angle
• Corner radius of 0.0313 inches for controlled surface finish
• Screw-held mounting method for positive insert location and quick indexing
• Two cutting edges per insert for cost-effective tooling use

Compatibility

Designed as a screw-held CCMT replacement insert for use with CoroTurn 107 series toolholders accepting CCMT 09 T3 08 geometry inserts. Specific toolholder compatibility should be confirmed against the ISO code CCMT 09 T3 08-MM 2035 prior to installation.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine before indexing or replacing inserts. Use the manufacturer-specified torx or hex key for the clamping screw and avoid overtightening, which can crack the insert or damage the pocket seating surface. Verify insert seating and pocket cleanliness before resuming cutting operations.
