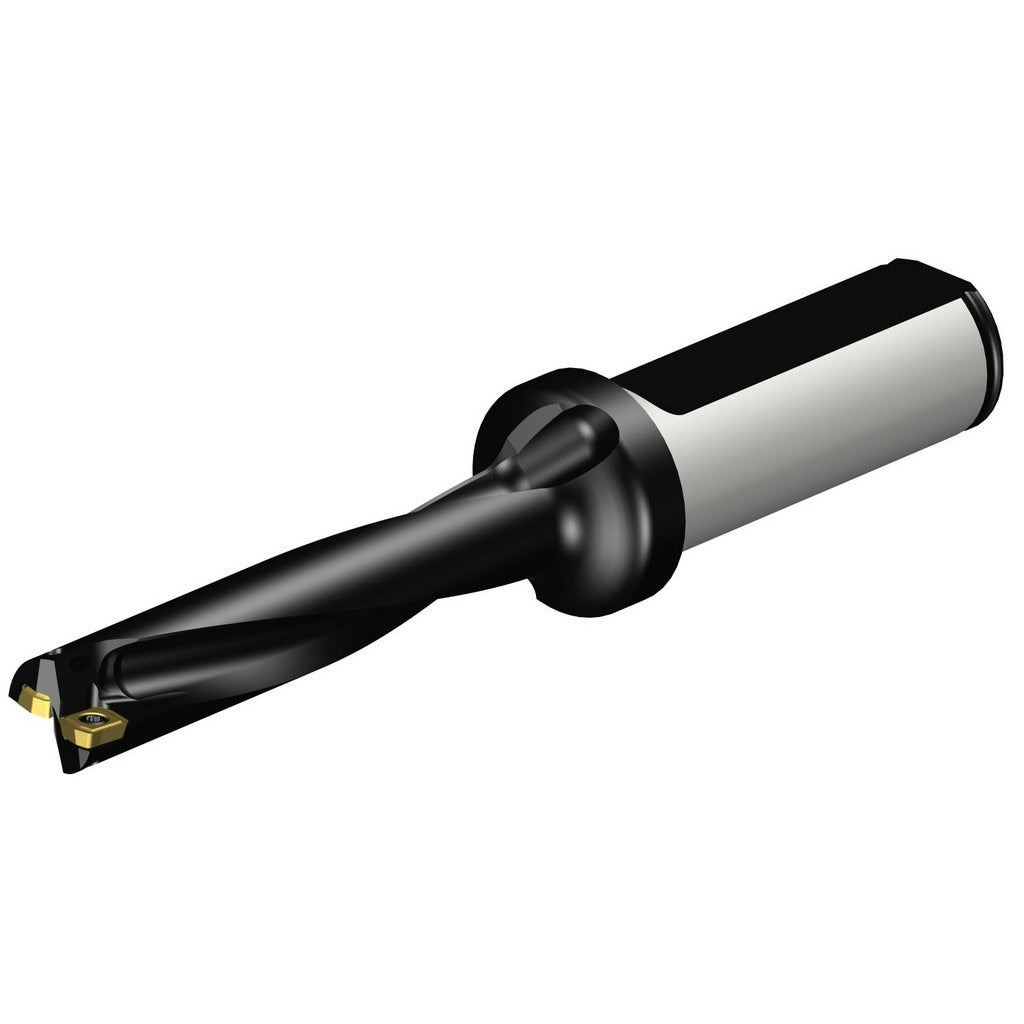

Sandvik Coromant 5723502 Indexable Insert Drill 5xd

Product Description

The SANDVIK COROMANT 5723502 is a steel-body indexable insert drill engineered for precision hole-making in metal cutting applications. Compatible with the CoroDrill 880 drill style A880..LXxx-05, this drill accepts two indexable inserts and delivers a maximum drill depth of 2.6 inches at a 5xD depth-to-diameter ratio. The 0.5197-inch maximum drill diameter and straight cylindrical shank measuring 0.75 inches make it a compact, rigid tooling solution. Coolant-through capability supports chip evacuation and thermal management during high-feed drilling operations. This tool is installed by machinists and CNC operators in production and job-shop environments.

This indexable insert drill is suited for drilling operations in ferrous and non-ferrous metals on CNC machining centers, lathes with live tooling, and manual mills where straight-shank tooling is accepted. The right-hand cutting direction and 5xD depth ratio position it for moderate-depth hole cycles without peck drilling. The coolant-through design makes it effective in applications where chip management and heat control are critical to hole quality and insert life.

Key Features

• Accepts two indexable inserts per CoroDrill 880 drill style A880..LXxx-05
• Maximum drill depth of 2.6 inches with a 5xD depth-to-diameter ratio
• Coolant-through body for improved chip evacuation and insert cooling
• Straight cylindrical shank at 0.75 inches diameter for broad machine compatibility
• Right-hand cutting direction with a flute length of 2.8843 inches
• Steel tool body construction for rigidity and durability

Compatibility

Designed for use with CoroDrill 880 indexable inserts following drill style A880..LXxx-05, using an insert size of 0.0866 inches. Accepts 2.20 mm inserts. Compatible with machines accepting a 0.75-inch straight cylindrical shank.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and locked out before mounting or removing the drill body. Use a properly sized collet chuck or end mill holder rated for the 0.75-inch shank diameter and confirm runout with a dial indicator before production drilling. Follow insert seating torque specifications provided in the SANDVIK COROMANT tooling documentation included with the assembly.
