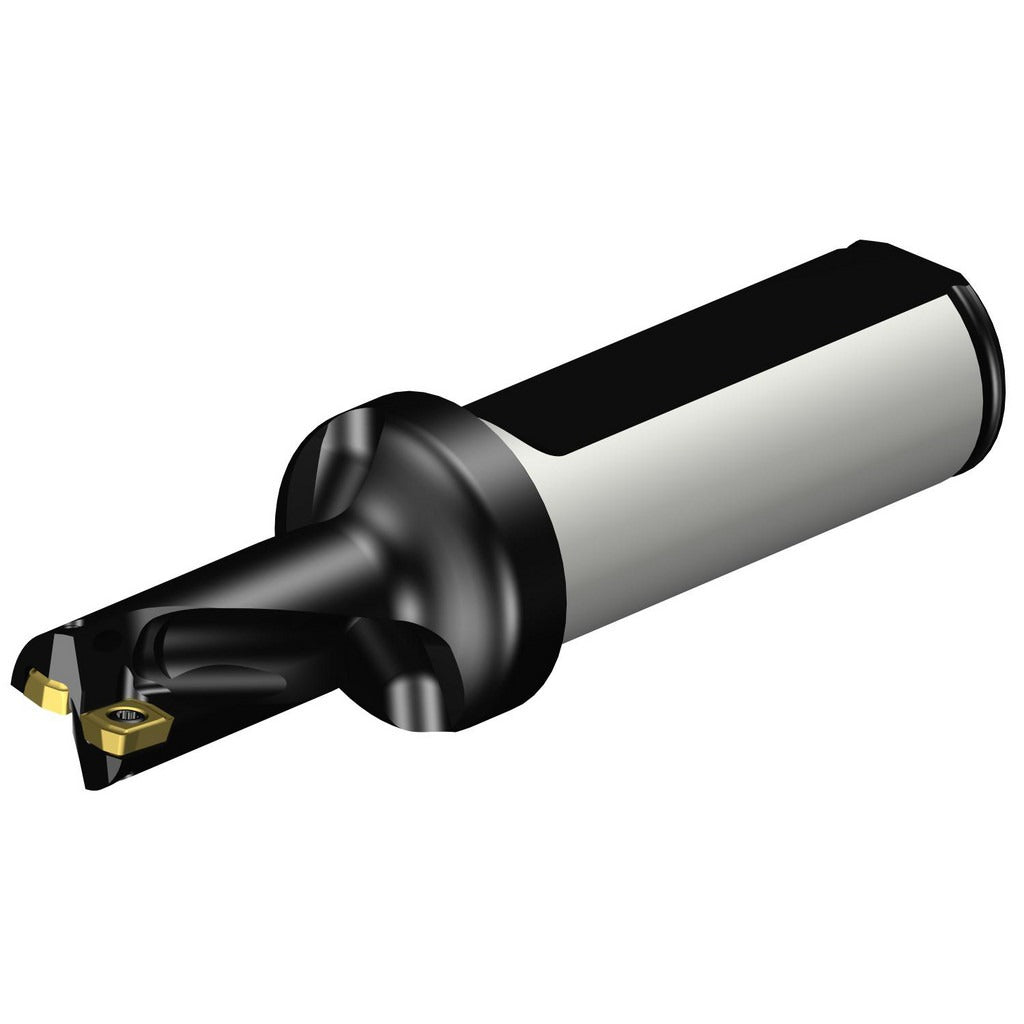

Sandvik Coromant 5723496 Indexable Insert Drill 880

Product Description

The SANDVIK COROMANT 5723496 is an indexable insert drill from the CoroDrill 880 series, designed for high-productivity drilling in metal-cutting applications. It accepts two indexable inserts and delivers a maximum drill depth of 1.1 inches at a 2xD depth-to-diameter ratio. The drill body is constructed from steel and features a 3/4-inch flange shank for rigid machine tool mounting. Coolant-through capability supports chip evacuation and thermal management during cutting. Licensed machinists and CNC operators working in production or job-shop environments are the primary users of this tooling.

This drill is suited for right-hand cutting operations on CNC machining centers and turning centers equipped with a compatible flange-style tool holder. With a maximum drill diameter of 0.52 inches and a flute length of 1.0 inch, it targets small-diameter hole-making in steel, cast iron, and similar workpiece materials. The CoroDrill 880 series platform is a widely used indexable drilling system in precision manufacturing settings, making this tool a fit for both production runs and prototype work.

Key Features

• Indexable insert design accepts two inserts, reducing tooling cost compared to solid carbide drills
• Coolant-through channels support chip evacuation and extend insert life in deep-cut applications
• Flange shank provides a rigid, repeatable connection to compatible machine tool spindles
• Right-hand cutting direction compatible with standard CNC machining center spindle rotation
• Steel drill body balances rigidity and weight for stable drilling performance
• Compatible insert grades 880-010203H-C-GR and 880-0102W04-P-GR for insert selection flexibility

Compatibility

Designed for use with CoroDrill 880 series tooling systems. Compatible inserts include 880-010203H-C-GR and 880-0102W04-P-GR. Requires a machine tool equipped with a flange-style tool holder accepting a 3/4-inch shank diameter.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the tool changer or spindle lock is engaged before mounting or removing the drill body. Verify insert seating and torque insert screws according to the insert manufacturer specifications using the correct Torx or hex key. Confirm coolant-through passages are clear and machine coolant pressure is compatible with the tooling system before initiating a cut.
