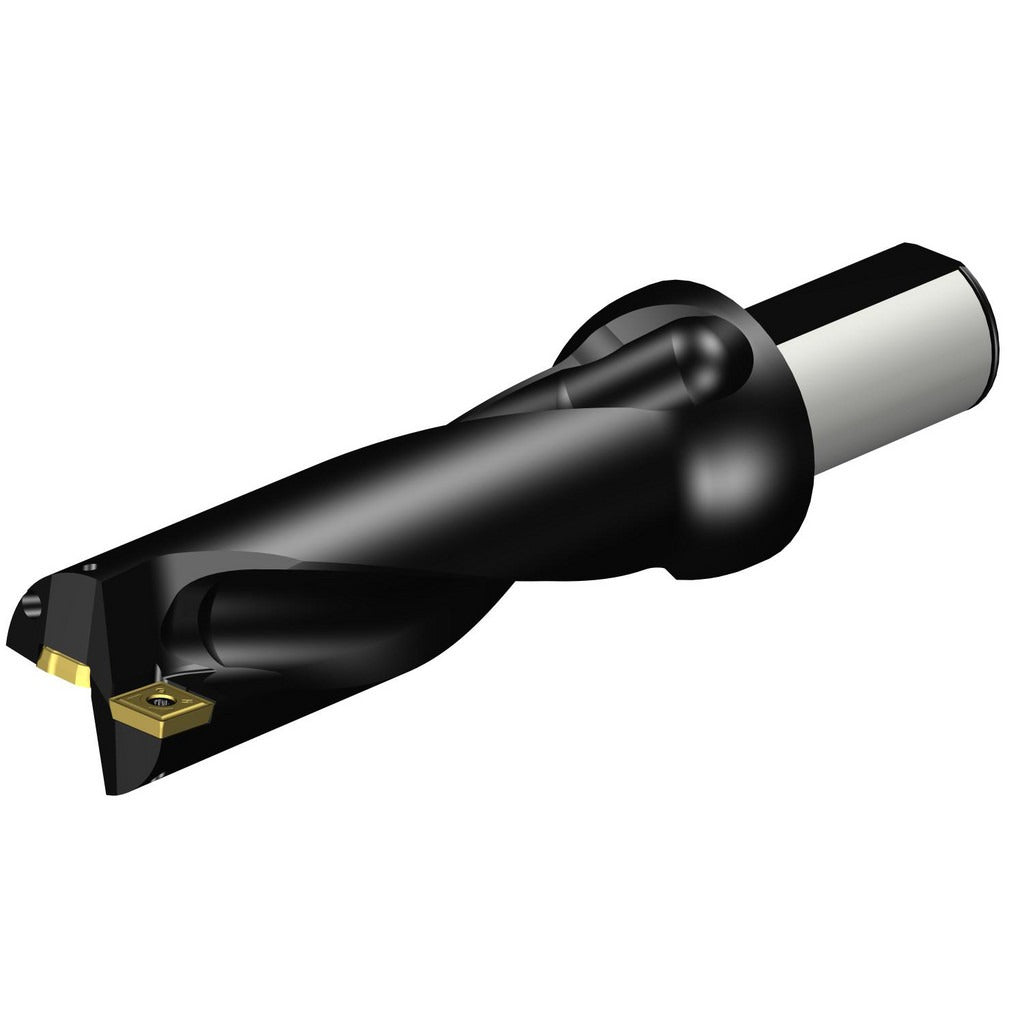

Sandvik Coromant 5723427 Indexable Insert Drill 1-7/8 in

Product Description

The SANDVIK COROMANT 5723427 is a straight-shank indexable insert drill engineered for high-productivity hole-making in metal cutting applications. The drill body accepts two indexable inserts and is built to a 3xD depth-to-diameter ratio, achieving a maximum drill depth of 5-13/16 inches at a maximum drill diameter of 1.9574 inches. The 1-1/2 inch straight cylindrical shank interfaces directly with standard drill chucks and hydraulic toolholders on CNC machining centers and lathes. The steel body is designed for coolant-through delivery, supporting chip evacuation and tool life at elevated feed rates. This drill is sized and configured for professional machinists and toolroom technicians working in production or job-shop environments.

This indexable insert drill is suited for through-hole and blind-hole drilling in ferrous and non-ferrous workpiece materials on CNC turning centers, vertical machining centers, and horizontal machining centers. The right-hand cutting direction and straight shank make it a direct fit for standard spindle tooling setups. The 3xD depth ratio and coolant-through capability support continuous cutting cycles in high-volume production settings where tool change frequency and cycle time are critical factors.

Key Features

• Maximum drill depth of 5-13/16 inches with a 3xD depth-to-diameter ratio
• Maximum drill diameter of 1.9574 inches (47.63 mm)
• Accepts two indexable inserts — compatible drill style A880..LXxx-03
• 1-1/2 inch straight cylindrical shank for standard toolholder compatibility
• Coolant-through design for active chip evacuation and thermal management
• Right-hand cutting direction; steel body construction

Compatibility

Designed for use with A880..LXxx-03 drill style indexable inserts with an insert size of 0.1772 inches (4.50 mm). No additional specific model or system compatibility data was provided in the product input.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the machine spindle fully powered down and locked out per applicable OSHA lockout/tagout procedures. Verify shank diameter and toolholder bore before mounting to avoid runout that can damage inserts or the drill body. Confirm coolant-through passages are clear and coolant pressure is within the machine and toolholder specifications before initiating a cutting cycle. Insert indexing and torque should follow the insert manufacturer torque specifications printed on the insert packaging.
