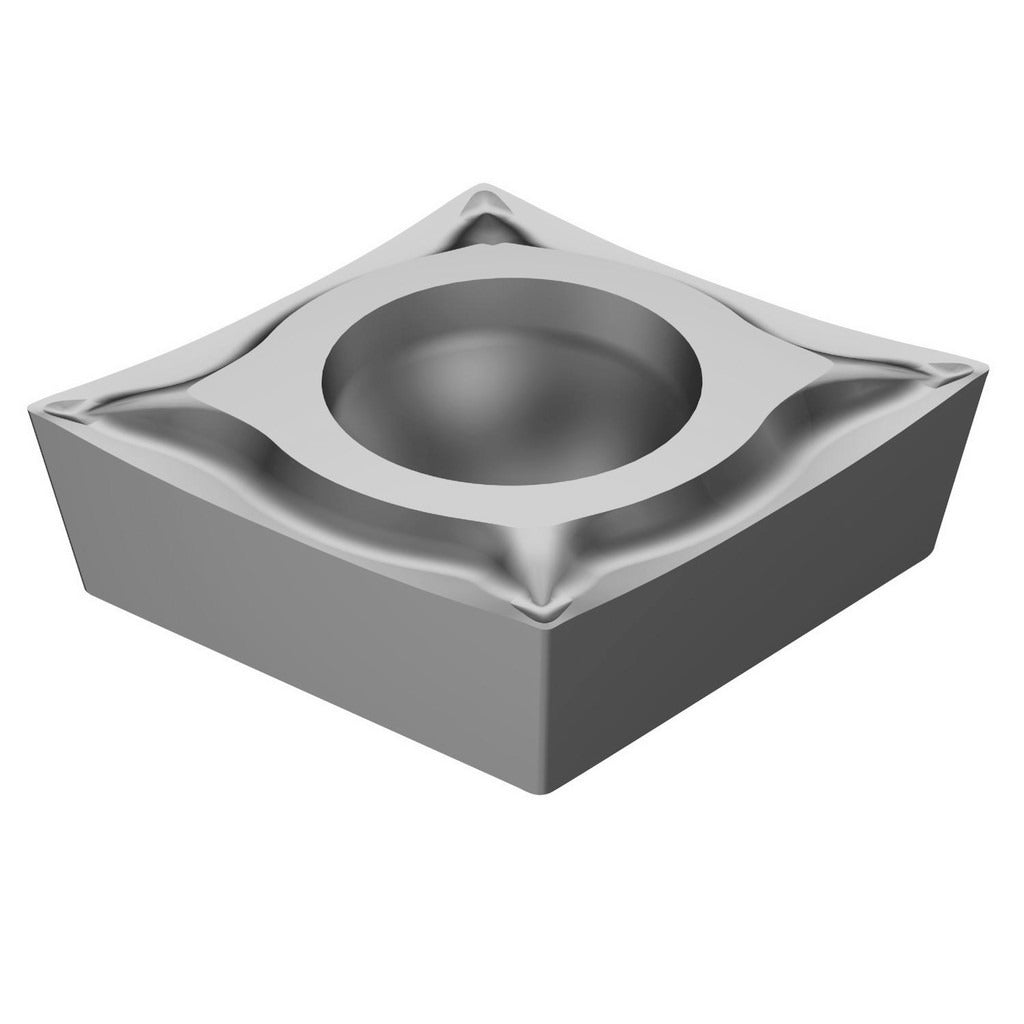

Sandvik Coromant 5723023 Ccgt Turning Insert Coroturn 107

Product Description

The SANDVIK COROMANT 5723023 is a solid carbide turning insert from the CoroTurn 107 series, designed for precision external and internal turning operations. It carries an 80-degree diamond insert shape (CCGT style) with a neutral hand orientation, a 3/8 inch inscribed circle, and a 0.0079 inch (0.20 mm) corner radius. The bright, uncoated carbide substrate in grade 5015 delivers sharp cutting edges suited for finishing cuts on steel and cast iron. The UM chip breaker geometry controls chip flow at light-to-moderate depths of cut. Licensed machinists and CNC turning center operators are the primary users of this insert.

The 5723023 insert is intended for use in CoroTurn 107 toolholders that accept CCGT-style inserts with screw-clamp holding. Primary workpiece materials are steel (ISO material code P) and cast iron (ISO material code K). Typical applications include finish turning of shafts, pins, and bores where close tolerances and surface finish quality are priorities. The uncoated carbide construction makes this grade especially effective at lower cutting speeds and in applications where coated grades may generate built-up edge.

Key Features

• 80-degree diamond insert shape (CCGT) with 7-degree relief angle for clearance on turning passes
• Grade 5015 uncoated solid carbide for sharp-edge finishing on steel and cast iron
• UM chip breaker geometry for controlled chip formation at light depths of cut
• Screw-clamp insert holding method compatible with CoroTurn 107 toolholders
• Two cutting edges per insert for extended tool life per unit
• Tolerance code G and clearance code C for consistent dimensional insert seating

Compatibility

Designed for use in SANDVIK COROMANT CoroTurn 107 toolholders that accept CCGT insert style with screw-clamp holding. ISO code CCGT 09 T3 02-UM 5015. Compatible with turning operations on steel (P) and cast iron (K) workpiece materials.

Installation Notes

Insert replacement should be performed by a qualified machinist or CNC operator with the machine at a full stop and all axes locked. Use the manufacturer-specified torx or hex key to torque the clamping screw to the toolholder specification - do not overtighten. Inspect the insert pocket and seating surface for chips or debris before seating the new insert. Verify insert orientation and hand before resuming cutting operations.
