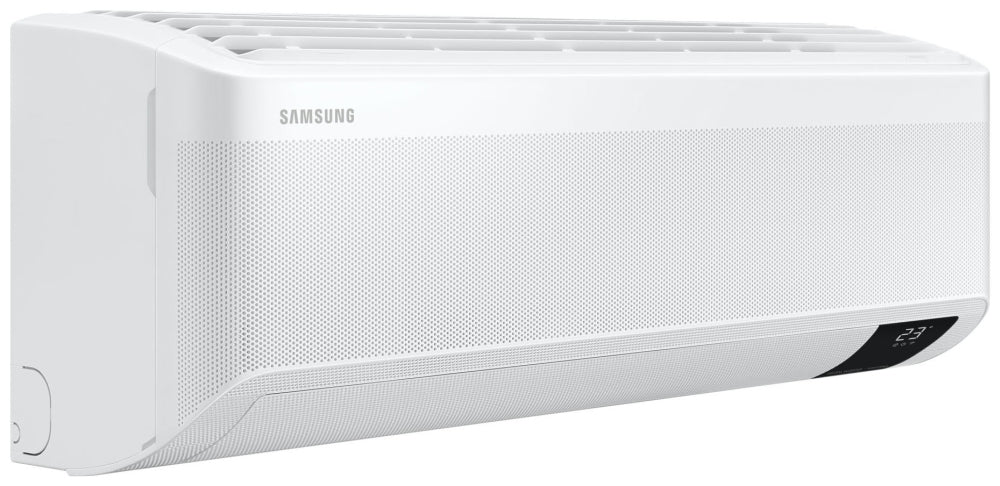

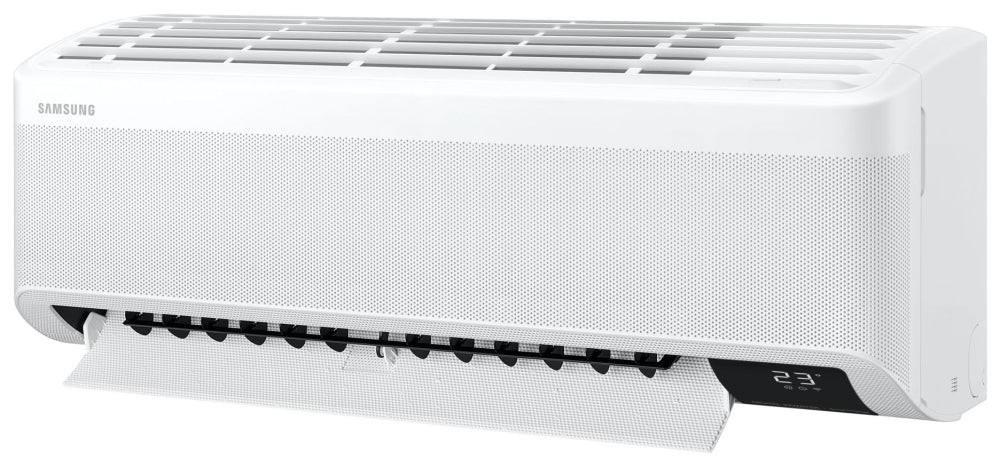

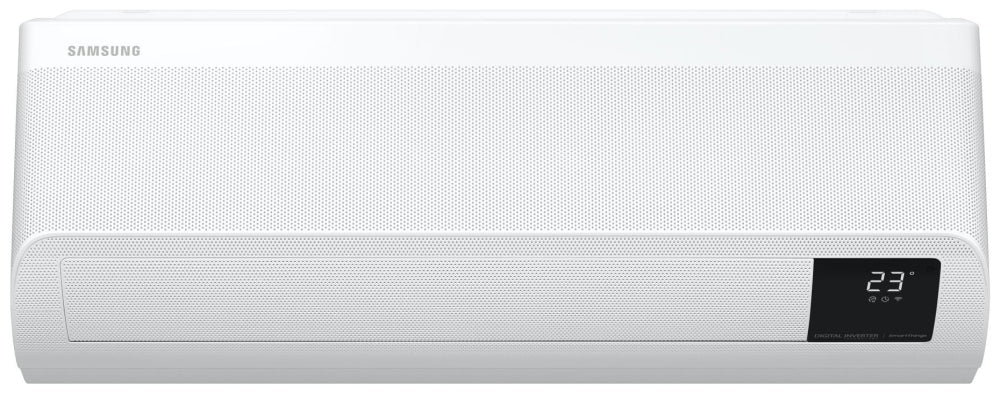

Samsung Hvac AR09TSFYBWKNCV Quantum 2.0 9k BTU Indoor Wall Evap (RNS09YBT)

Product Description

The Samsung HVAC AR09TSFYBWKNCV Quantum 2.0 is a split system indoor unit with a cooling capacity of 9000 BTU/Hour and a heating capacity of 11000 BTU/Hour. It operates on a voltage rating of 208 to 230 Volt AC and includes a line set, interconnect cable, indoor unit chassis UL94 V0 galvanized steel mounting bracket, and an infrared remote control. The unit is ETL approved and adheres to AHRI standards.

• Features Wi-Fi capability as standard
• Easy-access to wire, pipe and drain connections via access panel
• Heat exchangers with mechanically bonded fin to copper tube

Product Highlights

This Samsung HVAC indoor unit offers efficient cooling and heating with convenient features like Wi-Fi connectivity and easy installation.

Product Information

Standard Information

• Brand: SAMSUNG HVAC
• Manufacturer Part Number: AR09TSFYBWKNCV

Technical Specifications

• Brand Name: Quantum 2.0
• Manufacturer Name: Samsung HVAC
• MPN: AR09TSFYBWKNCV
• Category: HVAC/R & Fans
• Cooling Capacity: 9000 BTU/Hour
• Heating Capacity: 11000 BTU/Hour
• Energy Efficiency: 23.5 SEER/13.95 EER/12 HSPF
• Refrigerant Type: R-410A
• Airflow Rating: 371 CFM/403 CFM (Cooling/Heating, Evaporator Fan), 1589 CFM (Condenser Fan)
• Sound Level: 37 Decibel
• Pipe Connection: 1/4 Inch (Liquid), 3/8 Inch (Gas)
• Condensate Connection: 11/16 Inch Outer Diameter
• Fan Type: Cross Flow
• Voltage Rating: 208 to 230 Volt AC
• Current Rating: 5.4 Amp (Cooling), 9.1 Amp (Heating), 12 Amp (Minimum Circuit Ampacity), 9 Amp Rated Load (Compressor), 0.12/0.18 Amp Full Load (Evaporator/Condenser Fan), 20 Amp (Maximum Overcurrent Protection)
• Frequency Rating: 60 Hertz
• Number Of Phases: 1
• Power Rating: 27 Watt (Evaporator Fan), 40 Watt (Condenser Fan)
• Cooling Coefficient: 3.75
• Operating Temperature: 61 to 90 Deg F (Cooling), 81 Deg F (Heating)
• Installation: Wall Mount
• Enclosure Material: Galvanized Steel, HIPS (Casing)
• Approval: ETL
• UNSPSC Code: 40101701
• Includes: Line Set - Insulated and Flared, Interconnect Cable, Indoor Unit Chassis UL94 V0 Galvanized Steel Mounting Bracket, Infrared Remote Control
• Applicable Standard: AHRI
