Samsung Hvac AC036MXSCCC/AA Cond Unit 36000 BTU/Hour

Product Description

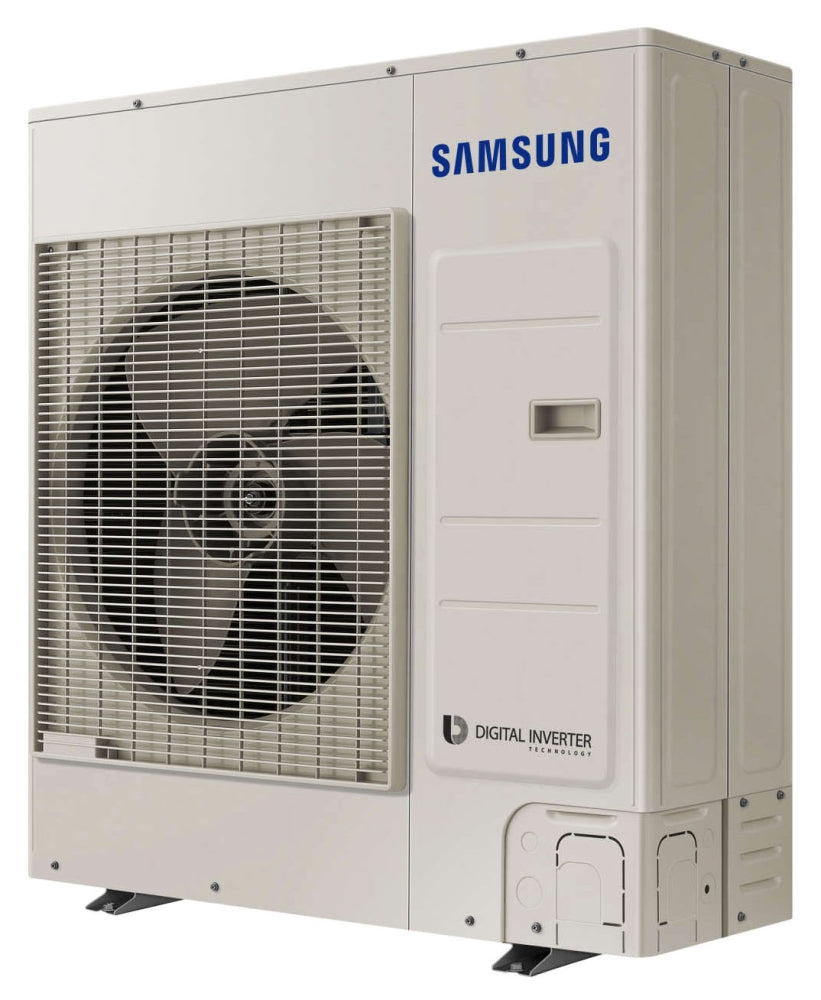

The SAMSUNG HVAC AC036MXSCCC/AA is a high-wall evaporator cooling outdoor unit. It supports low ambient cooling and low-temperature operation. The unit operates on 208 to 230 Volt AC and features a terminal block connection. Constructed with a galvanized steel enclosure and a baked-on powder-coated finish, it is designed for commercial applications.

• Auto-restart after power loss
• Equipped with snow accumulation prevention option
• Features night time quiet mode option

Product Highlights

This outdoor unit provides 36000 BTU/Hour cooling capacity and operates between 23 to 115 Deg F. It is ETL (Canada and US) approved and AHRI compliant.

Product Information

Standard Information

• Brand: SAMSUNG HVAC
• Manufacturer Part Number: AC036MXSCCC/AA

Technical Specifications

• Type: Standard, Low Ambient Cooling, Low Temperature, Deluxe
• Voltage Rating: 208 to 230 Volt AC
• Current Rating: 21 (Operating), 24 Amp (Minimum Circuit Ampacity), 16.5 Amp Rated Load (Compressor), 0.9/1.51 Amp Full Load (Evaporator/Condenser Fan), 30 Amp (Maximum Overcurrent Protection)
• Frequency Rating: 60 Hertz
• Number Of Phases: 1
• Power Rating: 58 Watt (Evaporator Fan), 164 Watt (Condenser Fan), 1.42 Kilowatt (Compressor)
• Cooling Capacity: 36000 BTU/Hour
• Connection Type: Terminal Block
• Operating Temperature: 23 to 115 Deg F
• Installation: Wall Mount
• Enclosure Material: Galvanized Steel
• Enclosure Finish: Baked on Powder Coated
• Approval: ETL (Canada and US)
• Energy Efficiency: 18 SEER/8.1 EER
• Refrigerant Type: R-410A
• Airflow Rating: 4572 CFM
• Sound Level: 54 Decibel
• Pipe Connection: 3/8 Inch (Liquid), 5/8 Inch (Gas)
• Condensate Connection: 11/16 Inch Inner Diameter for 11/16 Inch PVC
• Compressor Type: Inverter Driven Twin BLDC Rotary
• Fan Type: BLDC with Crossflow (Evaporator), BLDC (Condenser)
• Application: Commercial
• Applicable Standard: AHRI
