Samsung Hvac AC036MNTDCH/AA Air Conditioner 36000 BTU/Hr

Product Description

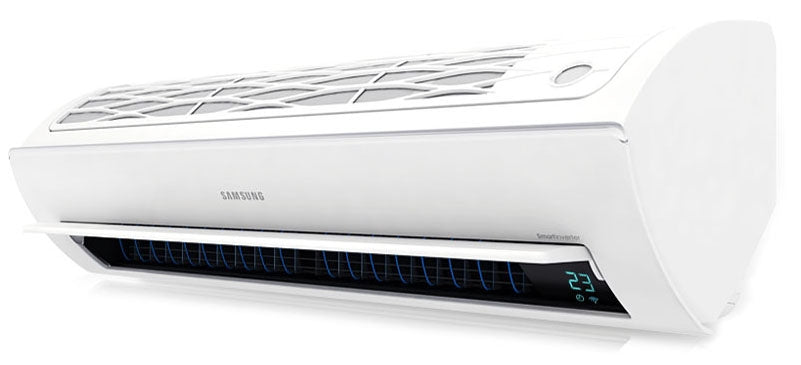

The Samsung HVAC AC036MNTDCH/AA is a high-wall evaporator split system indoor unit. Operating at 208 to 230 Volt AC, it delivers 36000 BTU/Hour cooling and 40000 BTU/Hour heating capacity. Constructed with a galvanized steel enclosure, it is designed for wall mount installation in commercial applications.

• Auto-restart after power loss
• Easy-access to wire, pipe and drain connections
• Mechanically bonded fin to copper tube heat exchanger

Product Highlights

This Samsung HVAC unit features a removable EEPROM, soft-start to reduce current demand, and ETL (Canada and US) approval.

Product Information

Standard Information

• Brand: SAMSUNG HVAC
• Manufacturer Part Number: AC036MNTDCH/AA

Technical Specifications

• Approval: ETL (Canada and US)
• Cooling Capacity: 36000 BTU/Hour
• Cooling Coefficient: 2.84
• Current Rating: 18.5 Amp (Cooling), 23 Amp (Heating), 23.2 Amp (Minimum Circuit Ampacity), 17 Amp Rated Load (Compressor), 0.9/0.96 Amp Full Load (Evaporator/Condenser Fan), 35 Amp (Maximum Overcurrent Protection)
• Enclosure Material: Galvanized Steel
• Frequency Rating: 60 Hertz
• Installation: Wall Mount
• Number Of Phases: 1
• Operating Temperature: 61 to 90 Deg F (Cooling), 80 Deg F (Heating)
• Power Rating: 58 Watt (Evaporator Fan), 250 Watt (Condenser Fan)
• Voltage Rating: 208 to 230 Volt AC
• Heating Capacity: 40000 BTU/Hour
• Energy Efficiency: 20 SEER/12.9 EER/10.4 HSPF
• Refrigerant Type: R-410A
• Airflow Rating: 830 CFM (Evaporator Fan), 3040 CFM (Condenser Fan)
• Sound Level: 51 Decibel
• Pipe Connection: 3/8 inch (Liquid), 5/8 Inch (Gas)
• Condensate Connection: 11/16 Inch Outer Diameter
• Application: Commercial
• Applicable Standard: AHRI
