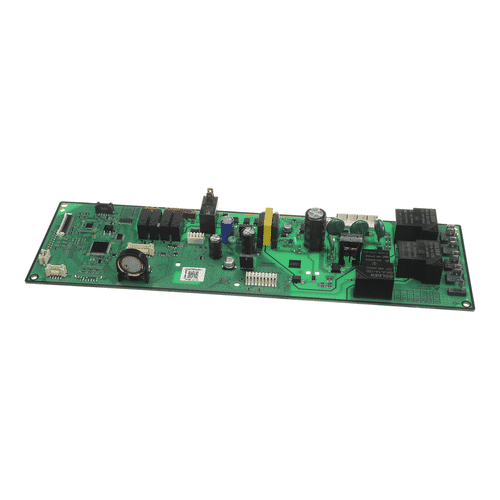

Samsung dg94-05220f Eeprom Pcb Assembly

Product Description

The SAMSUNG dg94-05220f is an EEPROM PCB assembly designed for use in Samsung home appliances. This board serves as the electrically erasable programmable read-only memory module, storing critical operational data and settings that the appliance's main control system depends on during normal function. It is a direct OEM Samsung part, sourced through Samsung Parts and Accessories, and is typically installed by appliance technicians during diagnostic repair or component-level board replacement procedures.

This assembly is used in Samsung home appliance applications where the EEPROM memory board requires replacement due to data corruption, board failure, or component damage. It is suited for residential appliance repair scenarios. Technicians working on Samsung appliances should verify the part number against the unit's service label before ordering to confirm fitment.

Key Features

• OEM Samsung EEPROM PCB assembly for accurate data storage and system operation
• Direct replacement part sourced from Samsung Parts and Accessories
• Stores appliance operational parameters and settings critical to control system function
• Designed for component-level board repair rather than full control board replacement

Compatibility

Designed as an OEM-style replacement EEPROM PCB assembly for Samsung home appliances. Verify the part number against the appliance service label or wiring diagram to confirm compatibility before installation.

Installation Notes

Installation should be performed by a qualified appliance technician. Disconnect power to the appliance at the circuit breaker or by unplugging the unit before servicing any PCB components. Handle the EEPROM board carefully to avoid electrostatic discharge damage — use proper ESD precautions including a grounded wrist strap. Consult the appliance service manual for board location, connector orientation, and any required recalibration steps after replacement.

Technical Specifications

• Component Type: EEPROM PCB Assembly
• Part Category: Home Appliance PCB

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: dg94-05220f
