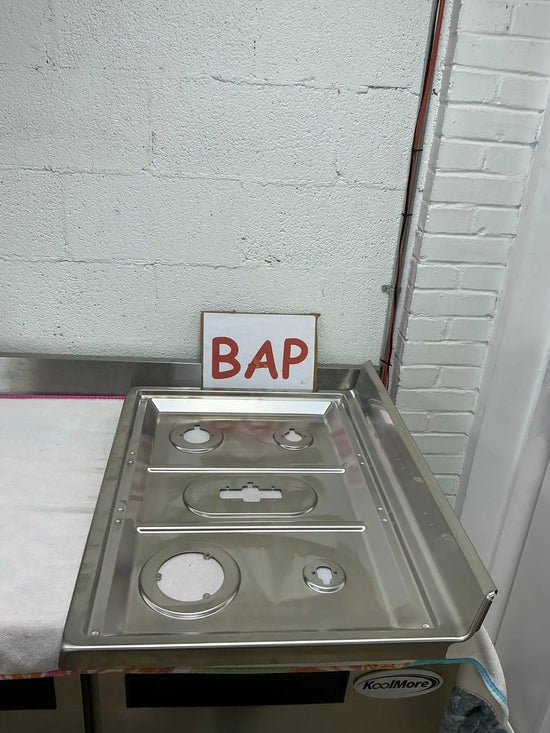

Samsung dg94-04116a Range Frame Module Assembly

Product Description

The SAMSUNG dg94-04116a is a range frame module assembly designed to provide structural support within the NX60 range. It mounts and aligns internal components, holding panels, controls, and related parts in proper position during operation. The frame is constructed to handle thermal expansion and operating pressure across repeated heating cycles. Proper alignment of this assembly reduces vibration, maintains dimensional stability, and supports consistent range performance. Installation is typically performed by appliance service technicians as part of a structural or chassis repair.

This frame module assembly is intended for use in Samsung NX60 series residential ranges. It serves as the backbone for internal component mounting, making it a necessary replacement when the original frame is damaged, warped, or misaligned. Technicians performing cooktop panel replacements, control module service, or structural repairs will encounter this assembly as a core component of the range chassis.

Key Features

• Provides rigid structural support for internal range components
• Designed to accommodate heat expansion during repeated cooking cycles
• Attaches to factory mounting points for precise alignment
• Reduces operational vibration and maintains dimensional stability
• OEM replacement assembly for the Samsung NX60 range platform

Compatibility

Designed as an OEM replacement frame module assembly for the Samsung NX60 series range.

Installation Notes

Installation of this frame module assembly should be performed by a qualified appliance service technician. Disconnect the range from electrical power and shut off any gas supply before beginning disassembly. Standard hand tools are typically required to access factory mounting points. Ensure all panels and controls are properly reseated and aligned before restoring power or gas service.
