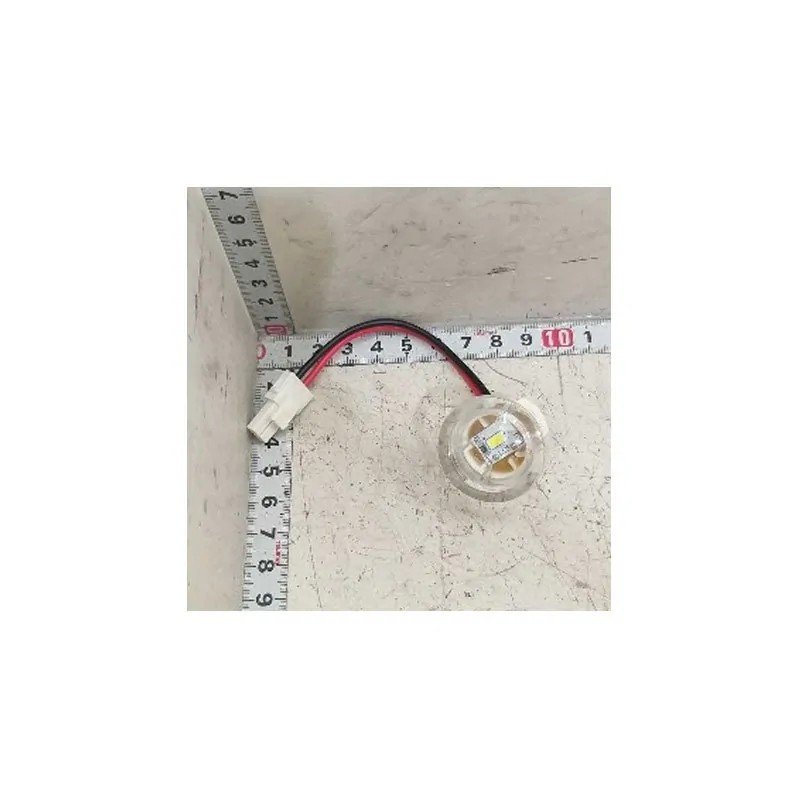

Samsung dd96-00057b Led Lamp Assembly

Product Description

The SAMSUNG dd96-00057b is an OEM LED lamp assembly designed as a direct replacement lighting component for Samsung refrigerators. This assembly operates on 5 volts DC and draws 45 milliamps of current through a 47-ohm resistor, producing a white-light output suited to interior refrigerator illumination. Licensed appliance technicians and experienced DIYers install this part to restore proper cabinet lighting when the original LED fails or becomes damaged. The FR-4 substrate construction indicates a fiberglass-reinforced PCB-mounted LED configuration, which is common in modern refrigerator interior lighting systems.

This LED lamp assembly is intended for use in Samsung residential refrigerator models where the factory interior lighting requires replacement. It is a direct OEM Samsung component, meaning it is manufactured to the same electrical and physical specifications as the original part installed at the factory. It is appropriate for service calls where the refrigerator interior light fails to illuminate or flickers under normal operating conditions.

Key Features

• OEM Samsung LED lamp assembly for direct factory-spec replacement
• Operates at 5 volts DC with 45 milliamp current draw
• 47-ohm resistor integrated into the circuit for current regulation
• White light output for clear interior refrigerator illumination
• FR-4 fiberglass PCB substrate construction for durability

Compatibility

Designed as an OEM-style replacement LED lamp assembly for compatible Samsung refrigerator models. Verify fitment against the full model number of the unit being serviced before installation.

Installation Notes

This part is typically installed by a qualified appliance technician. Disconnect the refrigerator from its power source before removing the existing lamp assembly or handling any electrical components. Handle the PCB assembly carefully to avoid contact with the LED or circuit traces. Confirm the replacement assembly seats fully into its connector before restoring power.

Technical Specifications

• Operating Voltage: 5 volts DC
• Current Draw: 45 milliamps
• Resistor Value: 47 ohms
• Light Color: White
• PCB Material: FR-4 fiberglass

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: dd96-00057b
