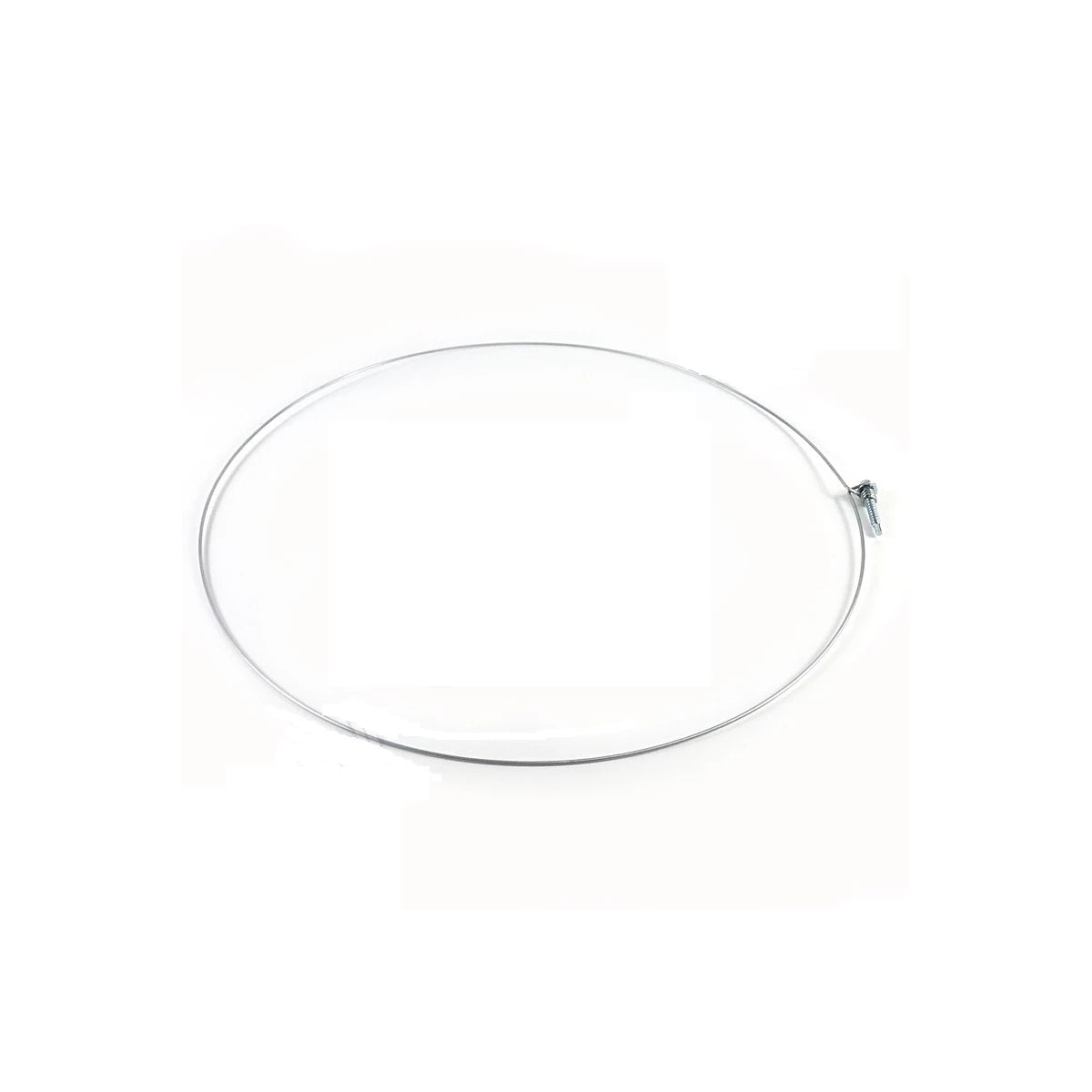

Samsung dc97-14618a Assembly Clamp Diaphragm

Product Description

The SAMSUNG dc97-14618a is an OEM replacement assembly clamp diaphragm designed for Samsung washing machine applications. This component secures the door boot seal to the outer tub and front panel, maintaining a watertight barrier during the wash and spin cycles. Proper diaphragm clamping prevents water leaks around the door opening and helps protect internal drum components from moisture damage. This part is typically handled by appliance service technicians during door seal or boot replacement procedures.

This clamp diaphragm assembly is used in Samsung front-load washing machine configurations where the door boot seal requires secure retention against the tub and door opening. It is a common replacement item during boot seal service calls, typically needed when the original clamp has lost tension, corroded, or broken during a prior repair. The part restores a proper seal fit without requiring full drum disassembly.

Key Features

• OEM-specification clamp assembly for precise fit and retention force
• Secures door boot diaphragm seal to tub and front panel
• Prevents water leakage around the door opening during operation
• Direct replacement reduces diagnostic and installation time

Compatibility

Designed as an OEM-style replacement clamp diaphragm assembly for Samsung front-load washing machines. Confirm fitment against the unit model number before installation.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect the washing machine from electrical power and shut off the water supply before beginning any service work. A flat-blade screwdriver or spring clamp tool is typically used to seat and tension the clamp during reinstallation of the door boot seal. Verify the clamp is fully seated around the entire perimeter of the boot before restoring power.

Technical Specifications

• Part Type: Assembly Clamp Diaphragm

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: dc97-14618a
