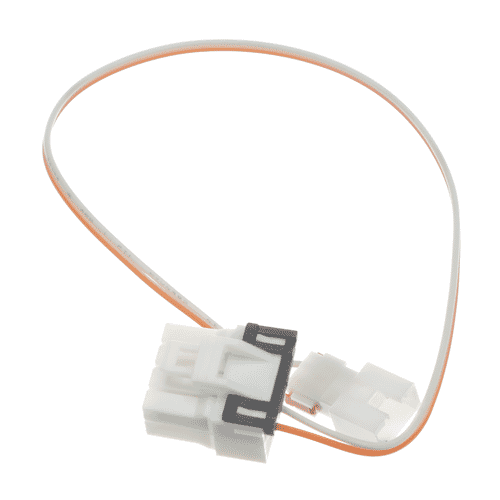

Samsung da96-01265d Wire Harness Switch

Product Description

The SAMSUNG da96-01265d is an OEM assembly wire harness switch designed for use in Samsung refrigeration units. This component serves as the electrical interconnect between the switch assembly and the main control circuit, transmitting signals that govern compartment functions such as bucket or door-activated switching. It is installed by appliance service technicians during diagnostic repair or component replacement procedures. The harness maintains signal integrity across the switch circuit and is built to OEM dimensional and electrical tolerances for direct fitment.

This wire harness switch assembly is suited for residential Samsung refrigerator applications where the original harness has failed, sustained damage, or requires replacement as part of a larger switch assembly service. It is the correct replacement when the bucket switch circuit shows an open or intermittent connection. Technicians replacing the switch assembly should inspect this harness as part of the complete repair.

Key Features

• OEM Samsung replacement wire harness for switch circuit applications
• Designed for bucket switch or compartment-activated switch integration
• Maintains OEM electrical tolerances for reliable signal transmission
• Direct-fit replacement requiring no modification to existing wiring

Compatibility

Designed as an OEM-style replacement wire harness switch assembly for Samsung refrigeration appliances. Verify fitment against the unit model number before installation.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect the refrigerator from its power source before accessing any internal wiring or switch components. Ensure all connectors are fully seated and latched before restoring power. Handle the harness carefully to avoid stressing the connector terminals during routing.

Technical Specifications

• Part Type: Assembly Wire Harness Switch
• Application: Refrigeration switch circuit

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: da96-01265d
