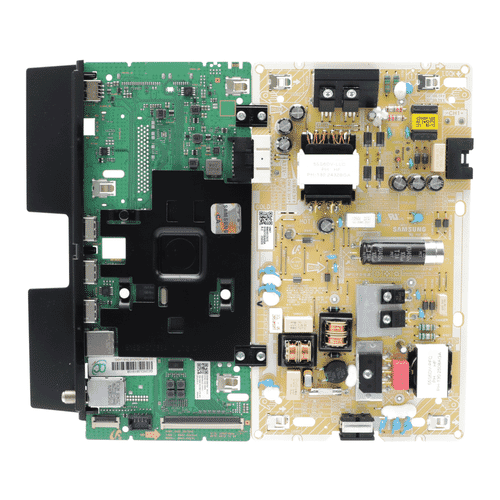

Samsung bn96-58676a Main Board Assembly 55 Inch

Product Description

The SAMSUNG bn96-58676a is a main board assembly designed as a direct OEM replacement component for Samsung display and television systems. This board serves as the primary processing unit within the display chassis, managing core signal processing, input handling, and system control functions. It is a factory-specified part intended for use by qualified electronics service technicians performing board-level repairs on Samsung display panels. The part references the UDU7000 platform with LGD 55-inch panel designation, making it specific to that display family and generation.

This main board assembly is used in the repair and servicing of Samsung display units built on the UDU7000 chassis with a 55-inch LGD panel configuration. It is a direct replacement for failed or damaged main boards in units carrying the VD55 designation. Service technicians performing warranty or out-of-warranty repairs on affected units will find this part appropriate for restoring full system functionality. It is not a universal board and is intended strictly for the compatible chassis variant noted.

Key Features

• OEM Samsung main board assembly for direct replacement use
• Designed for the UDU7000 chassis platform with LGD 55-inch panel
• Handles primary signal processing and system control functions
• Exact fit replacement reduces calibration and configuration concerns
• Factory-specified part number ensures correct board revision

Compatibility

Designed for Samsung display units built on the UDU7000 platform with a 55-inch LGD panel, VD55 designation, as indicated by the OEM part reference.

Installation Notes

Main board replacement should be performed by a qualified electronics service technician familiar with ESD precautions and board-level display repair procedures. Disconnect all power to the unit before opening the chassis or handling any internal components. Handle the board only by its edges to avoid damage from electrostatic discharge. Verify the replacement board matches the exact part number and board revision before installation.

Technical Specifications

• Application: UDU7000 LGD 55-inch display platform, VD55
• Assembly Type: Main board (P-Main)

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: bn96-58676a
