Samsung bn94-17254m Tv Main Pcb Assembly

Product Description

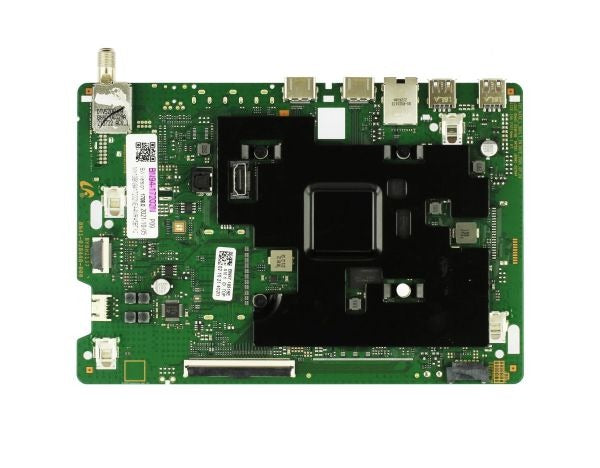

The SAMSUNG bn94-17254m is a main PCB assembly designed to serve as the central processing board in compatible Samsung display units. It manages signal input handling, image processing, audio routing, and power sequencing operations. The board coordinates communication between the screen panel, power supply module, and external interface connections. Mounted in the rear case of the display chassis, it integrates with internal wiring harnesses to maintain synchronized operation across all major subsystems. This part is typically installed by qualified electronics repair technicians working on flat-panel television service.

This main board assembly is intended for use in compatible Samsung flat-panel television platforms where the original board has failed or become damaged. Typical failure symptoms that prompt replacement include loss of picture, no audio output, failure to power on, or erratic input switching behavior. The board handles core display functions and is not a peripheral or secondary component.

Key Features

• Central processing board managing image processing and audio routing
• Handles signal input selection and power sequencing operations
• Coordinates communication between display panel, power module, and interface ports
• Designed for rear-chassis mounting with internal wiring harness integration
• OEM part number ensures direct fitment in compatible Samsung display platforms

Compatibility

Designed as an OEM-style replacement main PCB assembly for compatible Samsung flat-panel television units. No specific model compatibility data was provided in the product input. Verify the part number against the original board label before ordering.

Installation Notes

Installation should be performed by a qualified electronics repair technician familiar with flat-panel display service procedures. Disconnect the television from mains power and allow capacitors to discharge fully before opening the rear chassis. Handle the PCB by its edges to avoid electrostatic discharge damage to sensitive components. Reconnect all internal wiring harnesses and ribbon cables securely before restoring power.
