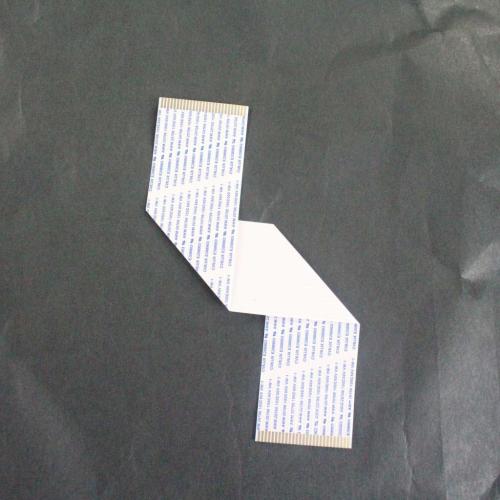

Samsung ah96-03185d Ffc Cable

Product Description

The SAMSUNG ah96-03185d is a flat flexible cable (FFC) designed for internal signal and power routing within Samsung HVAC and electronic assemblies. FFC cables serve as low-profile interconnects between circuit boards, control panels, and display modules inside split-system indoor units and other Samsung electronics. This cable maintains signal integrity across flexible connection points where rigid wiring is not practical. Installation is typically performed by a qualified HVAC technician or electronics service professional during a board-level component repair or unit reassembly.

This FFC cable is suited for use in Samsung residential and light-commercial indoor air handler or mini-split assemblies where flat flexible interconnects are required between internal PCB assemblies, display boards, or control modules. It is used when the original cable is damaged, kinked, or has failed due to repeated flexing over the service life of the unit.

Key Features

• Flat flexible cable construction allows routing in tight, low-clearance internal spaces
• Designed for board-to-board or board-to-display signal interconnection
• OEM Samsung part number ensures dimensional and pin-count match to original
• Suitable for use during board-level repairs on Samsung HVAC equipment

Compatibility

Designed as an OEM-style replacement FFC cable for Samsung HVAC and electronic assemblies. No specific model compatibility data was provided; consult the Samsung parts reference for confirmed fitment by indoor unit model number.

Installation Notes

FFC cable replacement should be performed by a qualified technician familiar with board-level electronic service. Disconnect all power to the unit at the breaker before opening the indoor unit cabinet or accessing internal PCB assemblies. Handle the cable carefully to avoid tears along the conductor traces, and ensure the locking ZIF or LIF connector tab is fully released before removing or inserting the cable. Refer to Samsung service documentation for the correct cable orientation and connector engagement procedure.

Technical Specifications

• Cable Type: Flat Flexible Cable (FFC)

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: ah96-03185d
