Samsung AC012DNNDCG/AA WindFree Mini Cassette 1.48 kW (4-Way) CNG12NDD

Product Description

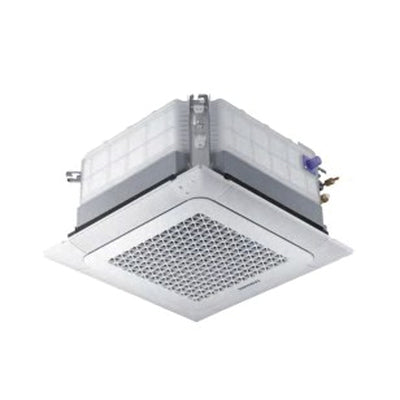

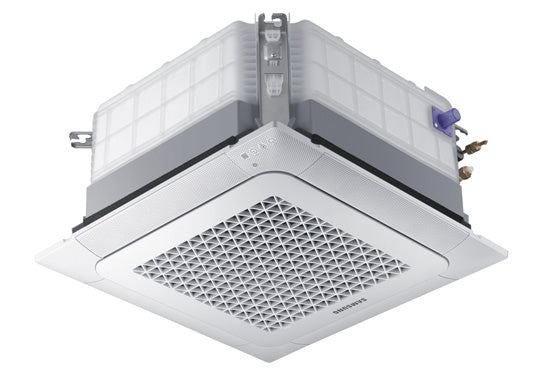

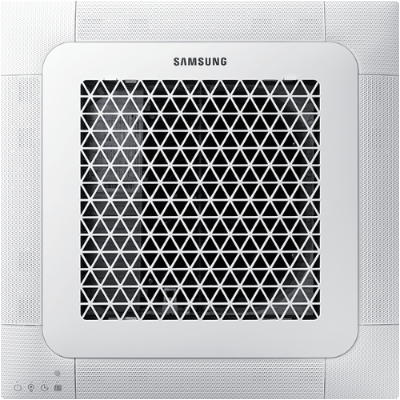

Samsung AC012DNNDCG/AA is a WindFree mini 4-way ceiling cassette indoor unit delivering 1.48 kW cooling (12,000 BTU/h) and 1.8 kW heating (14,000 BTU/h). It operates on 208�230 V single-phase power with 0.3 A input, uses R-32 refrigerant, and provides 226�325 cfm airflow at 34 dBA. The unit includes an integral condensate pump, built-in Wi_Fi adapter on the fascia, washable filter and motorized louvers for multi-zone systems.

• Capacity and electrical: 1.48 kW cooling (12,000 BTU/h), 1.8 kW heating (14,000 BTU/h); 208�230 V, 1 phase, 0.3 A; 226�325 cfm airflow; 34 dBA sound level.
• Operational features: WindFree micro-hole airflow mode, integral condensate pump with up to 29 inch lift and float switch, built-in Wi_Fi adapter, washable filter, LED display and infrared receiver.
• Installation and compatibility: Flared connection size 3/8 x 1/4 in line set, compatible with Samsung R-32 FJM multi-zone outdoor units (outdoor EEV required), compact ceiling cassette dimensions and turbo BLDC fan.

Product Highlights

WindFree micro-hole airflow; integral condensate pump (29 inch lift); built-in Wi_Fi; R-32 refrigerant; compact 4-way ceiling cassette for multi-zone systems.

Product Information

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: CNG12NDD
