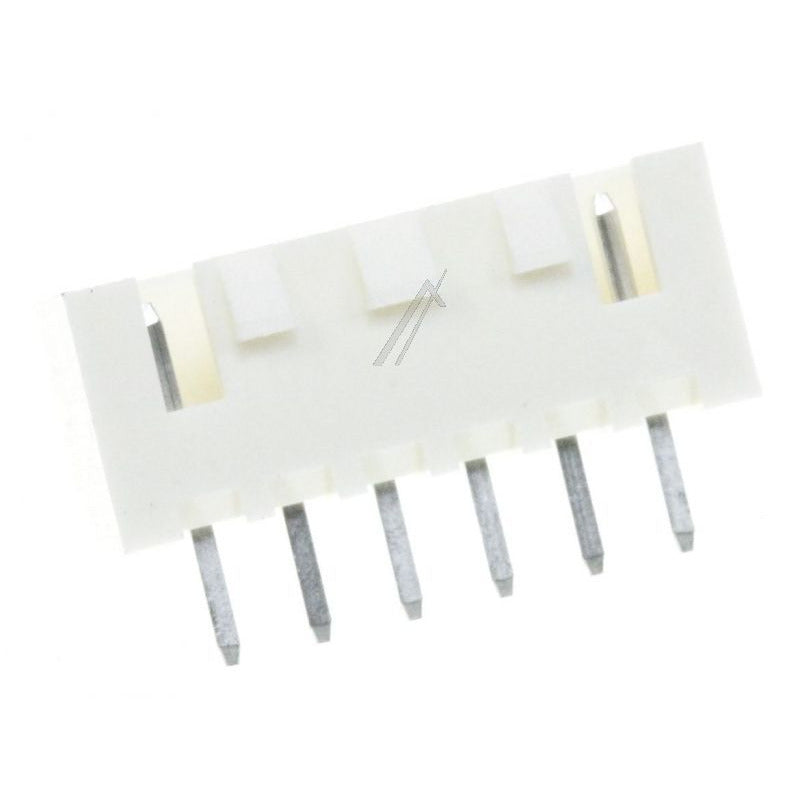

Samsung 3711-001038 Header Board to Cable

Product Description

The SAMSUNG 3711-001038 is a header board to cable connector used to establish an electrical interconnect between a circuit board header and a wiring harness within Samsung HVAC or appliance systems. This component carries signal or power between the control board and downstream components, maintaining the integrity of the electrical circuit. Licensed HVAC technicians and electronic service technicians typically source this part during board-level repairs or when replacing damaged wiring harnesses in Samsung equipment.

This connector is suited for service and repair applications where the existing header board to cable connection has failed, become corroded, or been physically damaged. It is used during component-level board repair in residential and light commercial Samsung systems where maintaining the original wiring harness interface is required.

Key Features

• Direct board-to-cable interface designed for Samsung control board header connections
• Maintains signal and power continuity between the control board and connected components
• OEM part number 3711-001038 ensures correct fitment within the intended Samsung system
• Compact form factor suited for installation in space-constrained enclosures

Compatibility

Designed as an OEM-style replacement connector for Samsung systems requiring a header board to cable interface. No specific model compatibility data was provided in the product listing.

Installation Notes

Installation should be performed by a qualified technician familiar with board-level electrical service. Disconnect and lock out all power to the unit before handling any internal wiring or connector components. Ensure the connector is fully seated and latched before restoring power. Follow applicable NEC guidelines when servicing electrical enclosures and control boards.

Technical Specifications

• Component Type: Header Board to Cable Connector

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: 3711-001038
