Samsung 2401-003139 Electrolytic Capacitor 1000MFD 25V

Product Description

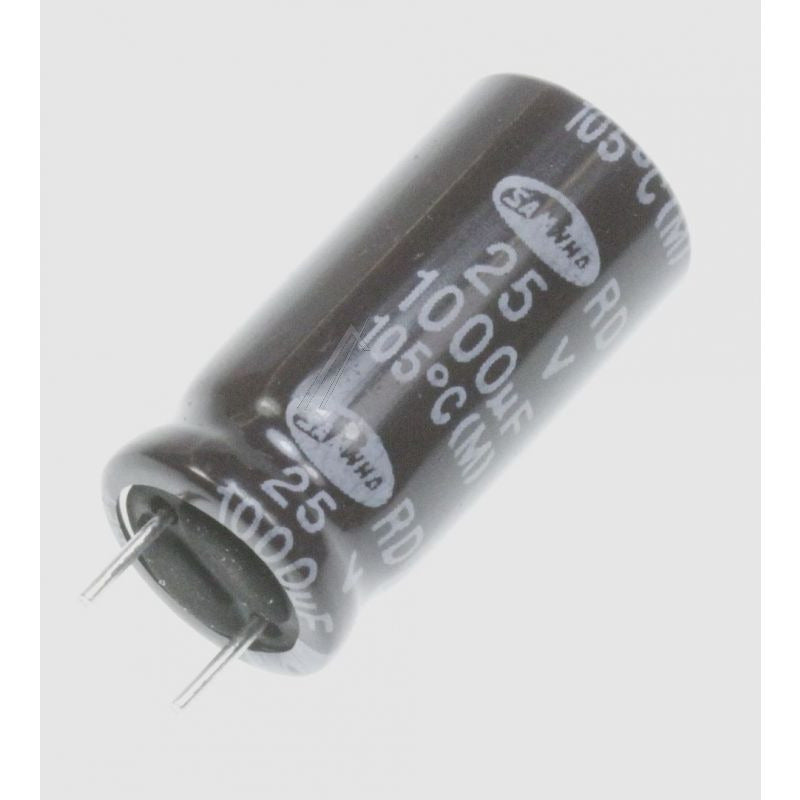

The SAMSUNG 2401-003139 is an electrolytic capacitor rated at 1000 microfarads (MFD) and 25 volts, with a tolerance of plus or minus 20 percent. Built to a 10 x 20 mm cylindrical form factor with a 5 mm lead pitch, this component is designed for through-hole (TP) mounting on printed circuit boards. It carries an operating temperature range from -55 degrees F on the low end, making it suitable for demanding electronics environments. Service technicians and electronics repair professionals install this part as a direct replacement in consumer electronics assemblies, including Samsung television boards and similar PCB-based platforms.

This capacitor is commonly found in power supply circuits and filter stages within Samsung consumer electronics products. It is used in both original assembly production and as a replacement component during board-level repair. Electronics repair technicians working on Samsung television chassis and related circuit boards will find this part appropriate for restoring proper capacitor function where the original component has failed due to age, heat stress, or power surge damage.

Key Features

• 1000 MFD capacitance with plus or minus 20 percent tolerance
• 25-volt rating suitable for low-voltage DC filter and power supply circuits
• 10 x 20 mm cylindrical body with 5 mm lead pitch for standard through-hole PCB mounting
• Operating temperature range starting at -55 degrees F for wide thermal compatibility
• OEM Samsung part for direct board-level replacement

Compatibility

Designed as an OEM Samsung replacement capacitor for consumer electronics circuit boards, including Samsung television power supply and main board assemblies where a 1000 MFD, 25-volt through-hole electrolytic capacitor is specified.

Installation Notes

Board-level capacitor replacement should be performed by a qualified electronics technician. Disconnect and fully discharge the device from all power sources before beginning any PCB work, as capacitors can retain charge after power is removed. Observe correct polarity when installing the replacement capacitor, as reversing polarity on an electrolytic capacitor can cause component failure or damage to the board. Use appropriate soldering equipment and follow safe PCB rework practices throughout the procedure.

Technical Specifications

• Capacitance: 1000 MFD
• Tolerance: plus or minus 20 percent
• Voltage Rating: 25 volts
• Body Dimensions: 10 x 20 mm
• Lead Pitch: 5 mm
• Mounting Type: Through-Hole (TP)
• Operating Temperature (Low): -55 degrees F

Standard Information

• Brand: SAMSUNG
• Manufacturer Part Number: 2401-003139
