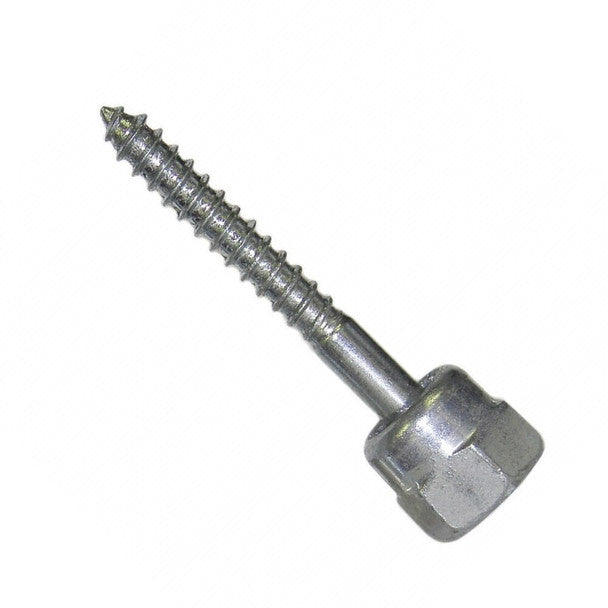

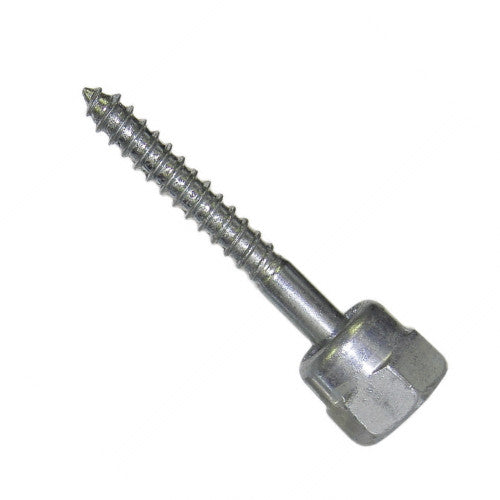

Sammy Screw 8008957 Sammy Screw 3/8 Vertical Threaded Rod Anchor for Wood

Product Description

The Sammy Screw 8008957 is a three eighths inch vertical threaded rod anchor suitable for wood applications. This anchor allows for a straightforward installation method, attaching directly to wood structures at a ninety-degree angle. Using a nut driver, it provides a secure hold for hanging threaded rods efficiently.

• Designed specifically for vertical mounting onto wood.

• Utilizes a three eighths inch rod size for compatibility.

• Fastens with a one quarter inch by two inch screw.

Product Highlights

This rod anchor is ideal for use in residential and commercial wood constructions, providing sturdy support and easy installation.

Product Information

Standard Information

• Brand: Sammy Screw

• MPN: 8008957

Technical Specifications

• Substrate: Wood

• Mount Style: Vertical

• Rod Size: 3/8-16

• Substrate Fastener Size: 1/4 x 2

• Drive: Sammy's #14 (Black) Nut Driver (8113910)

• Anchor Diameter: 1/4

• Material: Steel

• Finish: Electro-Zinc

• Head: 5/8 AF End-Drilled

• Grade: C1022 screw, C1010 cap

• Type: Rod Anchor

• Product Family: Sammy's Wood 3/8 Rod

• Ultimate Pullout: 1760 lb (Fir)

• UL Maximum Pipe Size: 2-1/2

• UL Test Load: 850 lb

• UL Minimum Wood Thickness: 1-1/2

• UL Approved: EX5098

• FM Max Pipe Size: 4

• FM Test Load: 1475 lb

• FM Minimum Thickness: 1.500

• FM Approved: 3020935

• Quantity: 1
