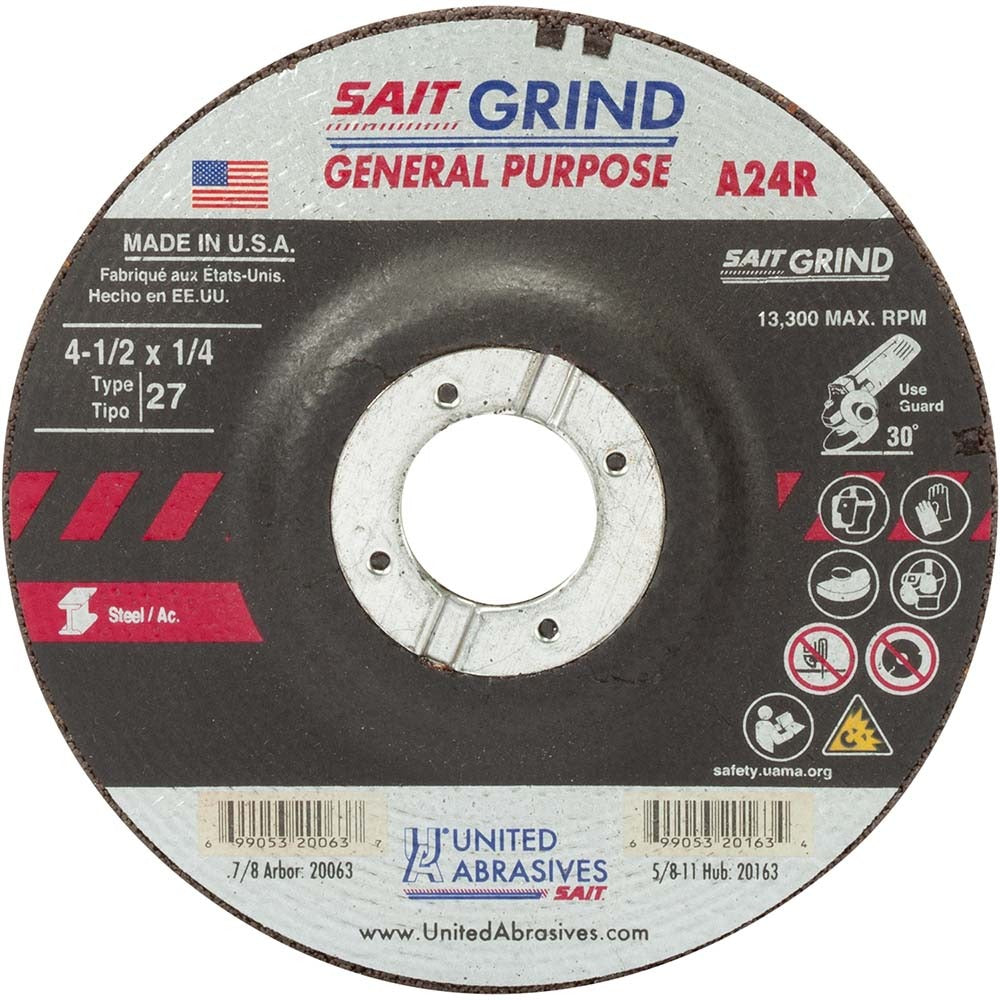

Sait 20060 Type 27 Grinding Wheel 4.5in 24 Grit Aluminum Oxide

Product Description

The SAIT 20060 is a Type 27 depressed center grinding wheel designed for aggressive stock removal on ferrous metals. It measures 4.5 inches in diameter with a 0.25 inch thickness and a 0.875 inch arbor hole, making it a standard fit for most 4.5 inch angle grinders. The wheel uses aluminum oxide abrasive bonded with a resinoid bond rated at hardness code N (medium). At 24 grit, it falls in the very coarse grade range, which is suited for fast material removal rather than finishing. Maximum operating speed is 13,300 RPM. The wheel is reinforced for added durability under lateral load during grinding. Fabricators, welders, pipefitters, and ironworkers are the primary installers of this consumable.

This wheel is built for use on ferrous metal applications including carbon steel, stainless steel, iron, and high tensile alloys. It is a common consumable in structural steel fabrication shops, pipeline work, weld prep, and general metalworking environments. The Type 27 depressed-center profile allows the operator to work at a low angle to the workpiece, improving contact and reducing fatigue during extended grinding passes. It fits standard angle grinders equipped with a 0.875 inch arbor.

Key Features

• 24 grit aluminum oxide abrasive for very coarse, high-removal-rate grinding
• Type 27 depressed center profile for low-angle grinding applications
• Resinoid bond with medium hardness rating (code N) for consistent performance on hard metals
• Reinforced construction for resistance to lateral stress during use
• 13,300 maximum RPM rating compatible with standard 4.5 inch angle grinders
• Rated for ferrous metal, stainless steel, iron, and high tensile alloy applications

Compatibility

Designed for use with angle grinders accepting a 4.5 inch diameter, 0.875 inch arbor Type 27 grinding wheel. Rated material applications include ferrous metal, high tensile alloy, iron, stainless steel, and steel.

Installation Notes

This wheel is installed and changed by the operator using the angle grinder wrench supplied with the tool. Always power down and unplug or de-energize the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before each use and never operate above the marked maximum RPM. Appropriate PPE including a face shield, gloves, and hearing protection is required during grinding operations.
