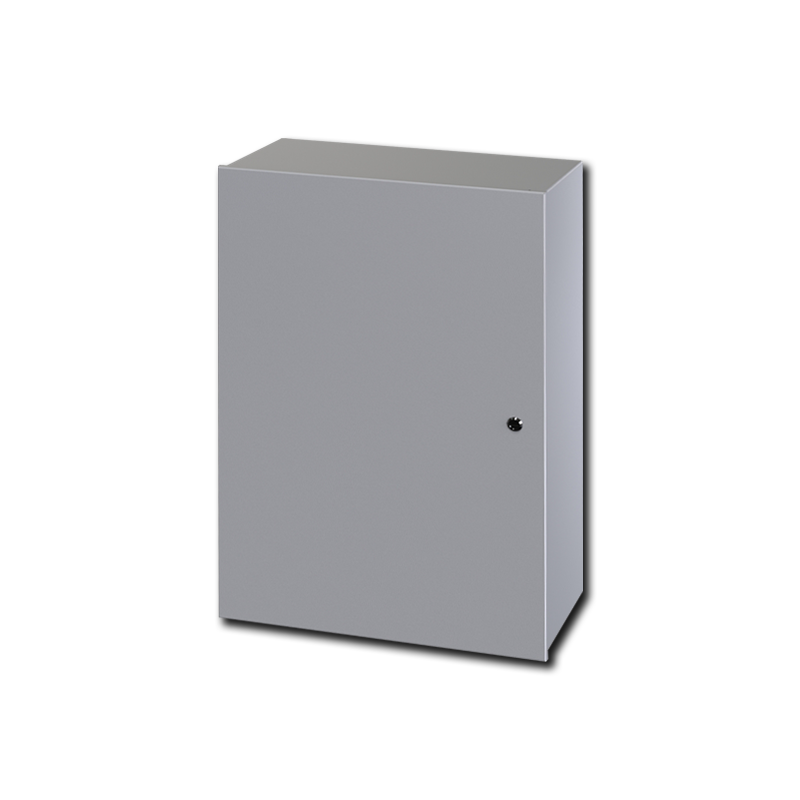

Saginaw Control & Engineering SCE-24N2408LP 24x24x8 Enclosure, Nema-1

Product Description

The Saginaw Control & Engineering SCE-24N2408LP is a Nema-1 enclosure designed for housing electrical controls and components. This enclosure is constructed from carbon steel with thickness varying from zero point zero four eight inches to zero point zero seven five inches. It features a spot weld construction ensuring durability and longevity. The doors of the enclosure open a full one hundred eighty degrees for convenient access, making it ideal for areas requiring limited protection against dust and moisture.

• Constructed from carbon steel.
• Hinged door design allows full opening.
• ANSI-61 gray powder coating finish.

Product Highlights

This enclosure comes equipped with standoffs for optional panel mounting. Quarter turn latches provide secure closure and can be operated with a standard screwdriver. It also features a ground stud on the door and has mounting holes at the back for easy installation.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• Part Number: SCE-24N2408LP

Technical Specifications

• Material: Steel
• Weight: 46.00 lbs per EA
• Color: ANSI-61 Gray
• IP Rating: IP30
• NEMA Rating: Type 1
• UL Listed: Type 1
• Actual Depth: 8 in
• Actual Width: 24 in
• Actual Height: 24 in
• Back Panel: Solid or Perforated - Sold Separately
