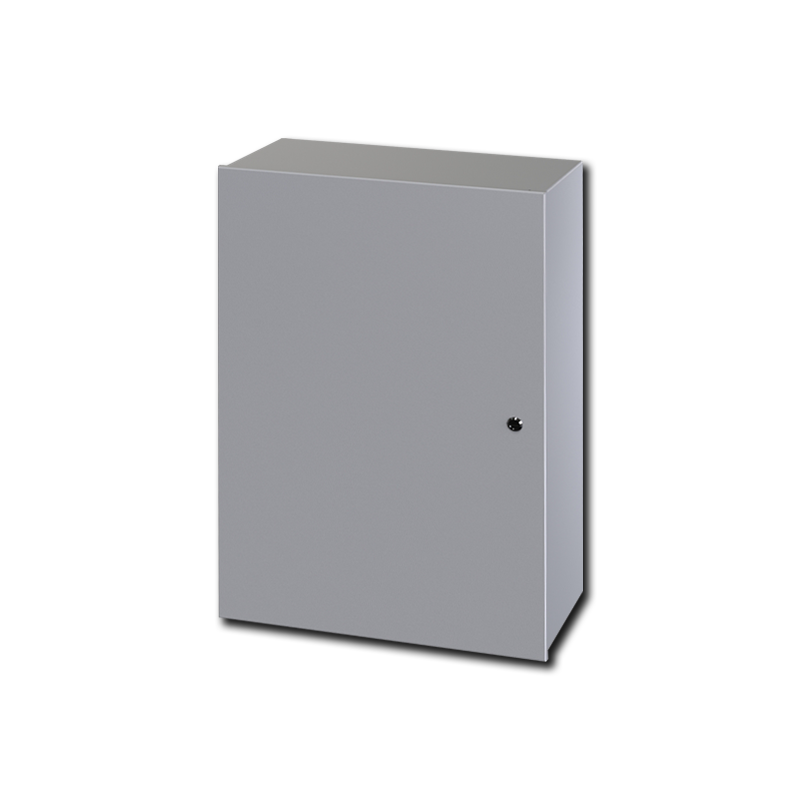

Saginaw Control & Engineering SCE-16N1606LP 16x16x6 Enclosure, Nema-1

Product Description

The Saginaw Control & Engineering SCE-16N1606LP is a sixteen by sixteen by six inch NEMA-1 enclosure. This enclosure is constructed from carbon steel, with thickness options of zero point zero four eight inches, zero point zero six three inches, and zero point zero seven five inches based on the specific enclosure size. It features spot weld construction for added durability, and standoffs are provided for optional panel mounting.

• Doors open 180 degrees for full access
• Includes black quarter turn latches for secure closure
• Ground stud on the door for improved grounding

Product Highlights

This enclosure is designed to safeguard electrical controls and instruments in environments where protection from oil, water, and dust is not necessary. It is finished with ANSI-61 gray powder coating inside and out, ensuring a durable surface.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• MPN: SCE-16N1606LP

Technical Specifications

• Material: Steel
• Color: ANSI-61 Gray
• NEMA Rating: Type 1
• UL Listed: Type 1
• CSA: Type 1
• IEC: IEC 60529
• IP Rating: IP30
• Dimensions: 16 in (width) x 16 in (height) x 6 in (depth)
• Weight: 16.00 lbs per EA
• Back Panel: Solid or Perforated - Sold Separately
