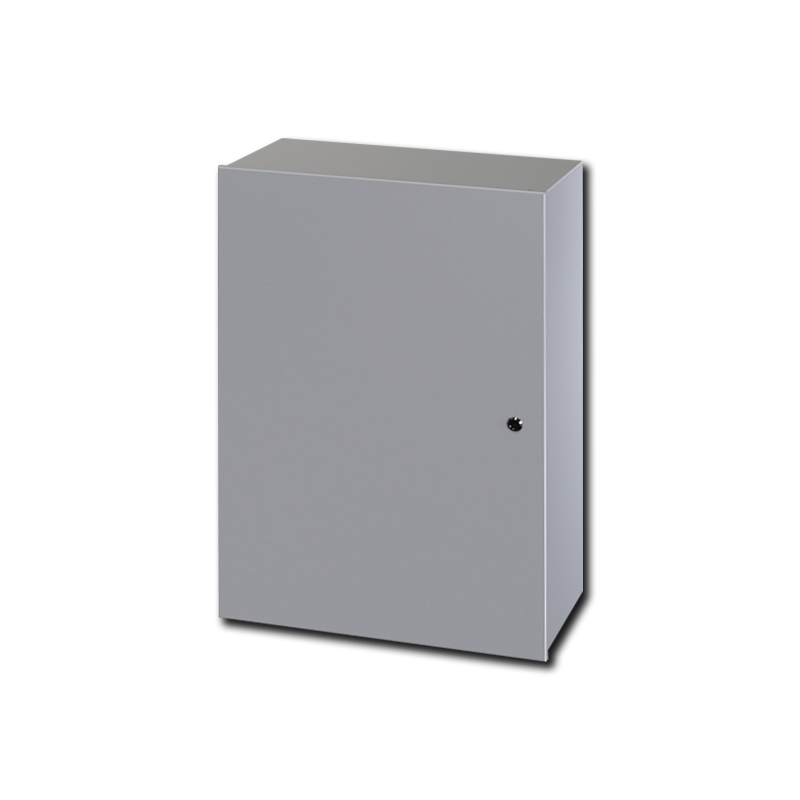

Saginaw Control & Engineering SCE-10N1006LP 10x10x6 Enclosure Nema-1

Product Description

The Saginaw Control & Engineering SCE-10N1006LP is a 10x10x6 enclosure designed for safe housing of electrical controls, instruments and components. This NEMA-1 rated enclosure is suitable for indoor environments where protection from oil, water, and dust is not required.

• Constructed from carbon steel with various thicknesses for durability.
• Features spot-weld construction and a butt hinge for full access.
• Comes with mounting holes and standoffs for optional panels.

Product Highlights

This enclosure is ideal for use in applications that require basic protection. Its design accommodates easy access and secure mounting of electrical components.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• MPN: SCE-10N1006LP

Technical Specifications

• Size: 10 inches x 10 inches x 6 inches
• Material: Steel
• Color: ANSI-61 Gray
• IP Rating: IP30
• NEMA Rating: Type 1
• UL Listed: Type 1
• Weight: 9.00 lbs
• Depth: 6 inches
• Width: 10 inches
• Height: 10 inches
