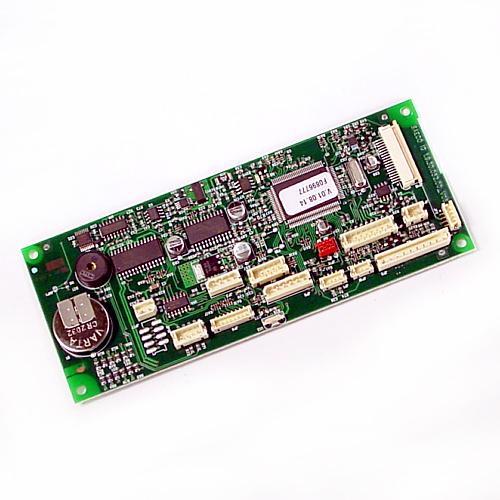

Saeco 996530002563 Cpu Control Board Assembly

Product Description

The SAECO 996530002563 is a CPU and switch assembly control board designed as an internal electronic component for SAECO espresso and coffee machines. Also referenced by part number 11004843, this assembly manages core machine functions including operational logic, user interface switching, and system control processes. It is a direct OEM-style replacement part intended for installation by qualified appliance service technicians or espresso machine repair professionals familiar with low-voltage electronics and coffee equipment service procedures.

This CPU and switch assembly is used in SAECO coffee and espresso machine applications where the control board or switch logic requires replacement due to failure, damage, or malfunction. It is suited for service scenarios involving loss of machine response, erratic operation, or confirmed board-level faults. The part is identified internally as version V1, build reference P0053/D, which may correspond to a specific hardware revision within the applicable machine line.

Key Features

• Combined CPU and switch assembly in a single replaceable unit
• Hardware version V1, build reference P0053/D
• Cross-referenced under alternate part number 11004843
• OEM SAECO replacement part for espresso and coffee machine service
• Manages operational logic and switching functions within the machine

Compatibility

Designed as an OEM replacement CPU and switch control assembly for SAECO coffee and espresso machines. Consult the SAECO parts documentation using part number 996530002563 or alternate reference 11004843 to confirm fitment for a specific machine model before installation.

Installation Notes

Installation should be performed by a qualified appliance service technician experienced with espresso machine electronics. Always disconnect the machine from mains power and allow capacitors to discharge before opening the housing or handling internal boards. Avoid touching board components with bare hands to prevent electrostatic discharge damage. Refer to the applicable SAECO service manual for disassembly sequence and connector identification before replacing this assembly.

Technical Specifications

• Assembly Type: CPU and Switch Board
• Hardware Version: V1
• Build Reference: P0053/D
• Alternate Part Number: 11004843

Standard Information

• Brand: SAECO
• Manufacturer Part Number: 996530002563
