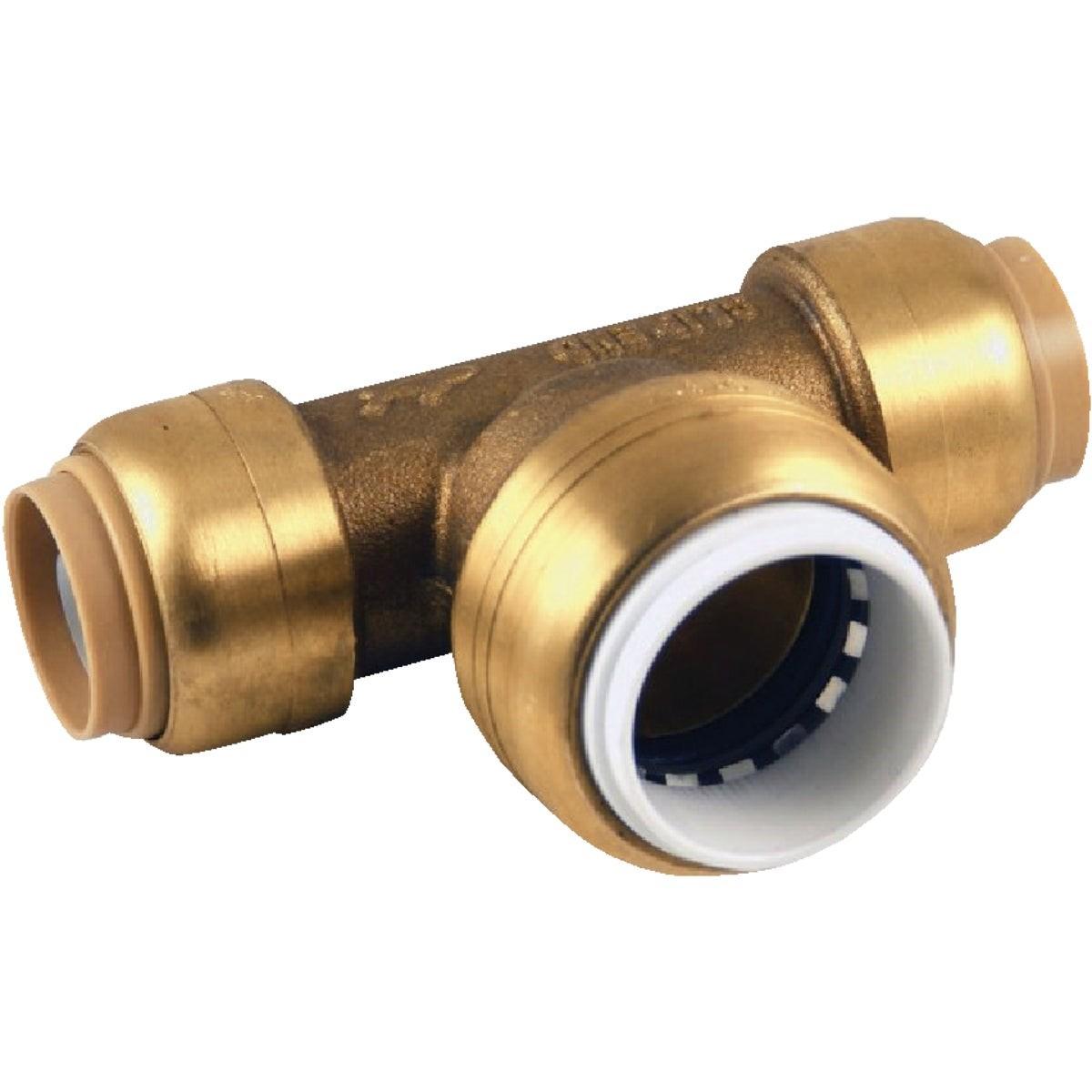

Rwc UIP375A Sharkbite 1 in Cts X 1 in Pvc Slip Tee

Product Description

The RWC UIP375A is a SharkBite push-to-connect PVC transition slip tee designed for plumbers and pipefitters who need to branch into an existing copper or CPVC line while transitioning the outlet run to PVC. The fitting uses two tan-collar ends that accept CTS copper, PEX, CPVC, or PE-RT pipe and a white-collar center connection that accepts Schedule 40, 80, or 120 PVC as well as IPS CPVC Schedule 40 and 80. No soldering, glue, or unions are required. A disconnect clip is included and allows the fitting to be released from the pipe after installation, and the fitting can be rotated on the pipe for easier work in confined spaces. Total weight is 0.734 pounds.

This slip tee is suited for residential and light commercial potable water distribution systems. The slip design allows a technician to cut into an existing copper or CPVC line and slide the fitting onto both cut ends without removing a section of pipe. The center outlet runs PVC Schedule 40, 80, or 120 away from the tee. It is certified for underground burial and behind-the-wall installations without access panels, making it appropriate for rough-in work as well as service and repair situations where access is limited.

Key Features

• Push-to-connect slip design requires no soldering, glue, unions, or special tools for installation
• Tan-collar ends accept CTS copper, PEX, CPVC, and PE-RT pipe; white-collar center accepts Schedule 40, 80, and 120 PVC and IPS CPVC Schedule 40 and 80
• Fitting rotates on pipe after installation to ease work in tight spaces
• Disconnect clip included for installation flexibility and fitting removal
• Certified for underground and behind-the-wall applications without access panels
• Corrosion-resistant construction rated for potable water distribution

Compatibility

Compatible with CTS copper, PEX, CPVC, and PE-RT pipe on the push-to-connect ends and with Schedule 40, 80, and 120 PVC and IPS CPVC Schedule 40 and 80 on the slip center connection. Suitable for use on copper, CPVC, and PVC pipe only.

Installation Notes

Installation is performed by licensed plumbers in jurisdictions governed by the UPC or IPC. Before cutting into any existing line, shut off the water supply and relieve system pressure completely. Use the included PVC depth gauge to confirm proper pipe insertion depth on the slip end before completing the connection. Do not use this fitting on pipe materials other than copper, CPVC, or PVC Schedule 40, 80, or 120.

Technical Specifications

• End Connection Size: 1 inch CTS
• Center Connection Size: 1 inch PVC Slip
• Compatible Pipe Types (Push Ends): CTS Copper, PEX, CPVC, PE-RT
• Compatible Pipe Types (Slip Center): PVC Schedule 40, 80, 120; IPS CPVC Schedule 40, 80
• Weight: 0.734 pounds
• Sold As: Each
• Certifications: IAPMO Listed, NSF/ANSI 61, NSF/ANSI 14, NSF/ANSI 372, UPC, IPC, cUPC
• Application: Potable water distribution, underground, behind-the-wall without access panels
• UPC: 00697285018761

Standard Information

• Brand: RWC
• Manufacturer Part Number: UIP375A
