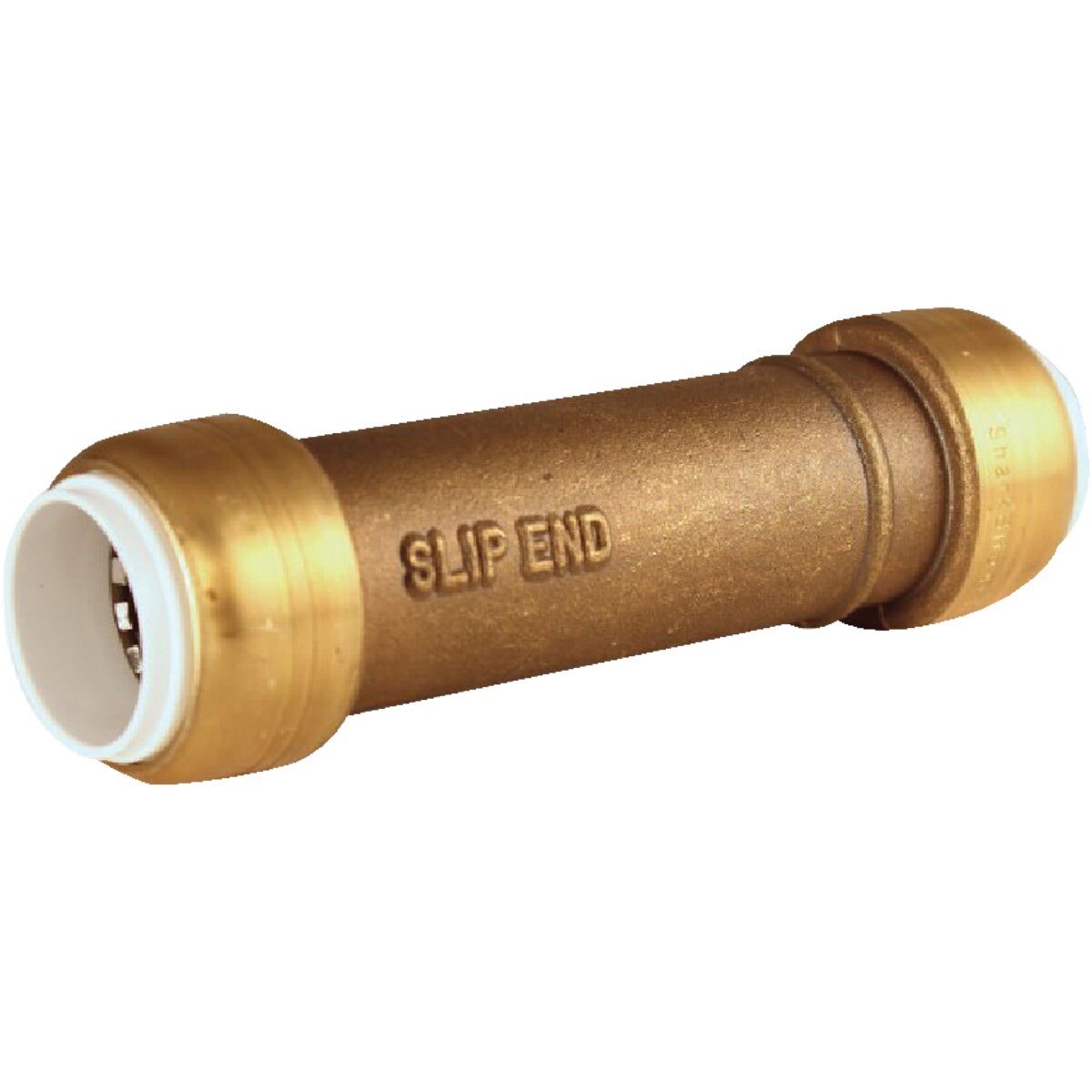

Rwc UIP3016A Sharkbite 3/4 in Pvc Slip Repair Coupling

Product Description

The RWC UIP3016A is a SharkBite push-to-connect PVC slip repair coupling designed for 3/4-inch PVC pipe in Schedule 40, 80, and 120 configurations. The slip design allows up to 2 inches of damaged pipe to be removed and replaced without cutting out a full section or adding unions. Installation requires no soldering, primer, glue, or specialty tools. The fitting slides onto the pipe using the included PVC Depth Gauge and Disconnect Clip, then slips back onto the second pipe end to complete the connection. Once installed, the coupling can be rotated on the pipe, which simplifies work in confined spaces.

This coupling is rated for potable water distribution and is certified for underground installations and behind-the-wall applications where access panels are not present. It is suited for residential and light commercial plumbing repairs on cold and hot water supply lines. Licensed plumbers and journeymen plumbers working under IPC, UPC, or cUPC jurisdictions will find this fitting code-compliant for a wide range of repair scenarios. The corrosion-resistant construction supports long service life in both buried and concealed installations.

Key Features

• Push-to-connect slip design removes up to 2 inches of damaged PVC pipe without soldering or glue
• Compatible with Schedule 40, 80, and 120 PVC pipe
• Fitting rotates on pipe after installation for easier positioning in tight spaces
• Certified for underground and behind-the-wall use without access panels
• Includes PVC Depth Gauge and Disconnect Clip for controlled installation and release
• Rated for potable water distribution with NSF/ANSI 61, NSF/ANSI 14, and NSF/ANSI 372 certification

Compatibility

Designed for use with 3/4-inch Schedule 40, Schedule 80, and Schedule 120 PVC pipe. Certified and listed to NSF/ANSI 61, NSF/ANSI 14, and NSF/ANSI 372. Meets UPC, IPC, and cUPC requirements. Listed by IAPMO.

Installation Notes

Installation is performed by a licensed plumber. Shut off the water supply and relieve system pressure before beginning any pipe repair. Use the included Depth Gauge to confirm proper pipe insertion depth before slipping the fitting onto the second pipe end. The included Disconnect Clip allows the fitting to be released and repositioned if needed during the repair sequence.

Technical Specifications

• Connection Type: PVC Slip x PVC Slip (Push-to-Connect)
• Pipe Size: 3/4 inch
• Compatible Pipe Schedule: Schedule 40, Schedule 80, Schedule 120
• Maximum Pipe Removal: 2 inches
• Application: Potable water distribution
• Certifications: NSF/ANSI 61, NSF/ANSI 14, NSF/ANSI 372, IAPMO listed, UPC, IPC, cUPC
• Weight: 0.55 pounds

Standard Information

• Brand: RWC
• Manufacturer Part Number: UIP3016A
