Rwc UC256LFA 3/4 in Barb 90 Degree Brass Pex Elbow

Product Description

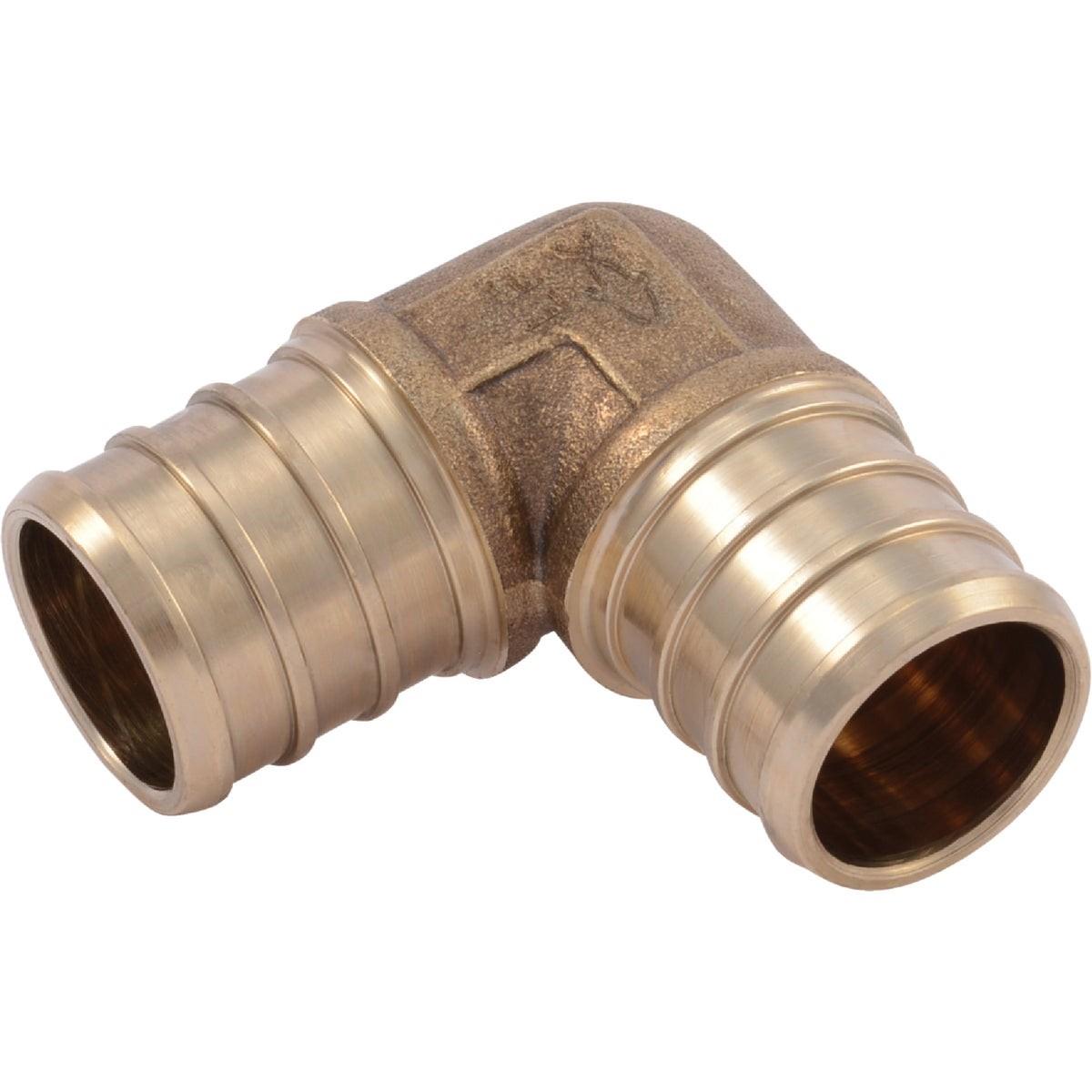

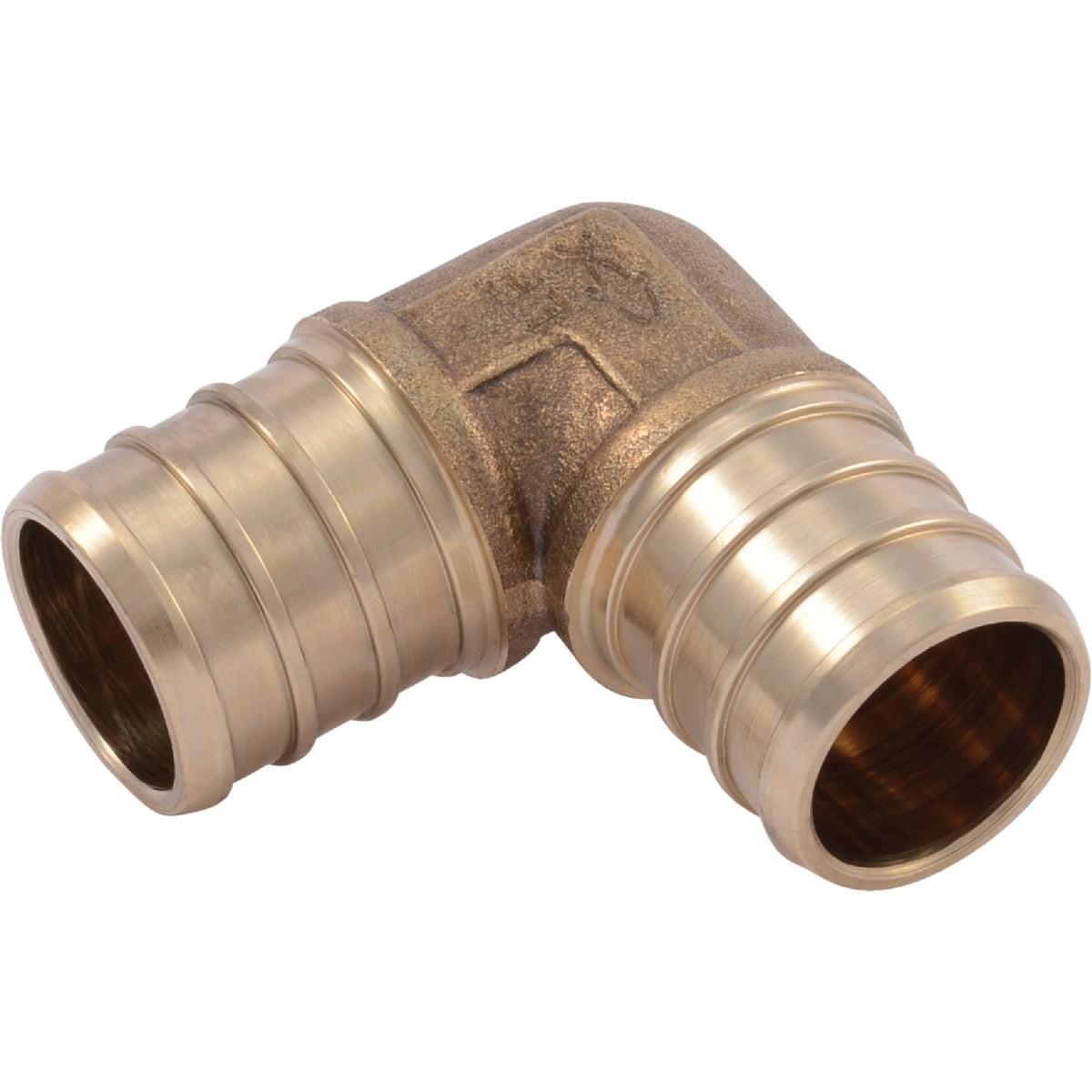

The RWC UC256LFA is a 3/4-inch by 3/4-inch barb 90-degree PEX elbow fitting manufactured from lead-free DZR brass. It connects PEX tubing at a right angle and is designed for low-cost, reliable performance in plumbing distribution systems. The fitting meets ASTM F1807, NSF/ANSI 61, and NSF 372 certifications, confirming compliance with lead-free and potable water safety standards. Licensed plumbers and experienced DIYers install this fitting using standard PEX clamp or crimp tools. Its straightforward barb design keeps installation time low without sacrificing joint integrity.

This fitting is suited for residential and light commercial applications including potable water distribution and hydronic heating systems. It is compatible with both stainless steel clamp ring systems and copper crimp ring systems, giving installers flexibility to work with whatever tooling is already on the job. Clamp rings and crimp rings are each sold separately. The 90-degree angle makes this elbow a practical choice for tight turns in wall cavities, mechanical chases, and manifold runs.

Key Features

• Lead-free DZR brass construction meets NSF 372 lead-free requirements
• Certified to ASTM F1807 and NSF/ANSI 61 for potable water use
• Compatible with both stainless steel clamp ring and copper crimp ring installation systems
• 90-degree barb design allows right-angle direction changes in PEX tubing runs
• Suitable for potable water distribution and hydronic heating applications

Compatibility

Compatible with 3/4-inch PEX tubing in stainless steel clamp ring systems and copper crimp ring systems used in potable water distribution and hydronic heating applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off water supply and relieve system pressure before cutting into any existing line. Use a dedicated PEX clamp tool or PEX crimp tool appropriate for 3/4-inch fittings to secure the ring over the barb. Inspect the seated barb connection before restoring pressure to the system.

Technical Specifications

• Connection Size: 3/4 inches x 3/4 inches
• Connection Type: Barb
• Angle: 90 degrees
• Material: Lead-Free DZR Brass
• Weight: 0.092 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Application: Potable Water Distribution, Hydronic Heating

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC256LFA
