Rwc UC134LFA10 Sharkbite Brass Pex Barb Adapter 3/4 in

Product Description

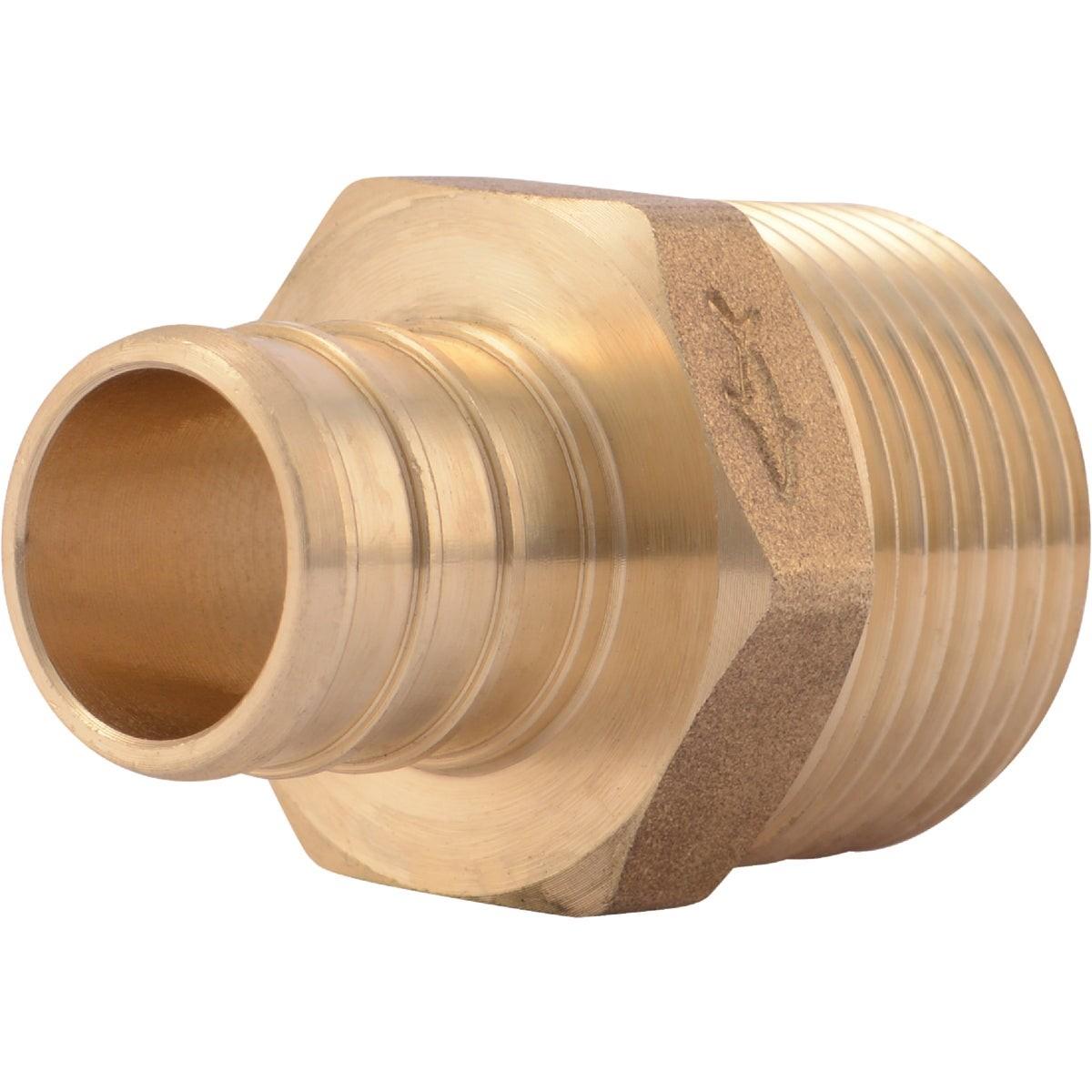

The RWC UC134LFA10 is a SharkBite PEX barb threaded male adapter designed for fast, reliable connections in PEX tubing systems. Constructed from lead-free DZR brass, this fitting features a 3/4 inch CF (crimp/clamp) barb inlet on one end and a 3/4 inch male NPT (MNPT) threaded outlet on the other. It is approved for potable water distribution and hydronic heating applications. The fitting is compatible with both stainless steel clamp ring and copper crimp ring installation methods, making it a flexible option for plumbers working across different jobsite conditions. Clamp and crimp rings are sold separately.

This adapter is suited for residential and light commercial plumbing installations where PEX tubing must transition to a threaded male connection. Typical applications include potable water supply lines and hydronic heating distribution loops. The MNPT end connects directly to standard female-threaded fittings, valves, and manifolds. Its lead-free DZR brass construction meets current NSF and ASTM standards for water contact applications, making it appropriate for any jurisdiction requiring NSF 372 lead-free compliance.

Key Features

• Lead-free DZR brass construction meets NSF 372 and NSF/ANSI 61 standards
• 3/4 inch CF barb inlet compatible with stainless steel clamp rings and copper crimp rings
• 3/4 inch MNPT threaded outlet for connection to standard female-threaded fittings
• Listed under ASTM F1807 for PEX crimp fittings
• Approved for potable water distribution and hydronic heating systems

Compatibility

Approved for use in potable water distribution and hydronic heating applications. Compatible with both stainless steel clamp ring and copper crimp ring systems (sold separately) per ASTM F1807.

Installation Notes

Installation is performed by a licensed plumber following applicable IPC or local plumbing code requirements. Shut off the water supply and depressurize the line before making any connections. Use the appropriate crimp or clamp tool rated for the ring system being used. Do not overtighten the MNPT threaded end — apply thread sealant tape per standard practice and hand-tighten before using a wrench for final seating.

Technical Specifications

• Inlet Size: 3/4 inch CF (crimp/clamp barb)
• Outlet Size: 3/4 inch MNPT
• Material: Lead-free DZR brass
• Weight: 1.284 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• UPC: 00697285022447

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC134LFA10
