Rwc UC020LFA Sharkbite Brass Pex Barb Coupling 1 in X 1 in

Product Description

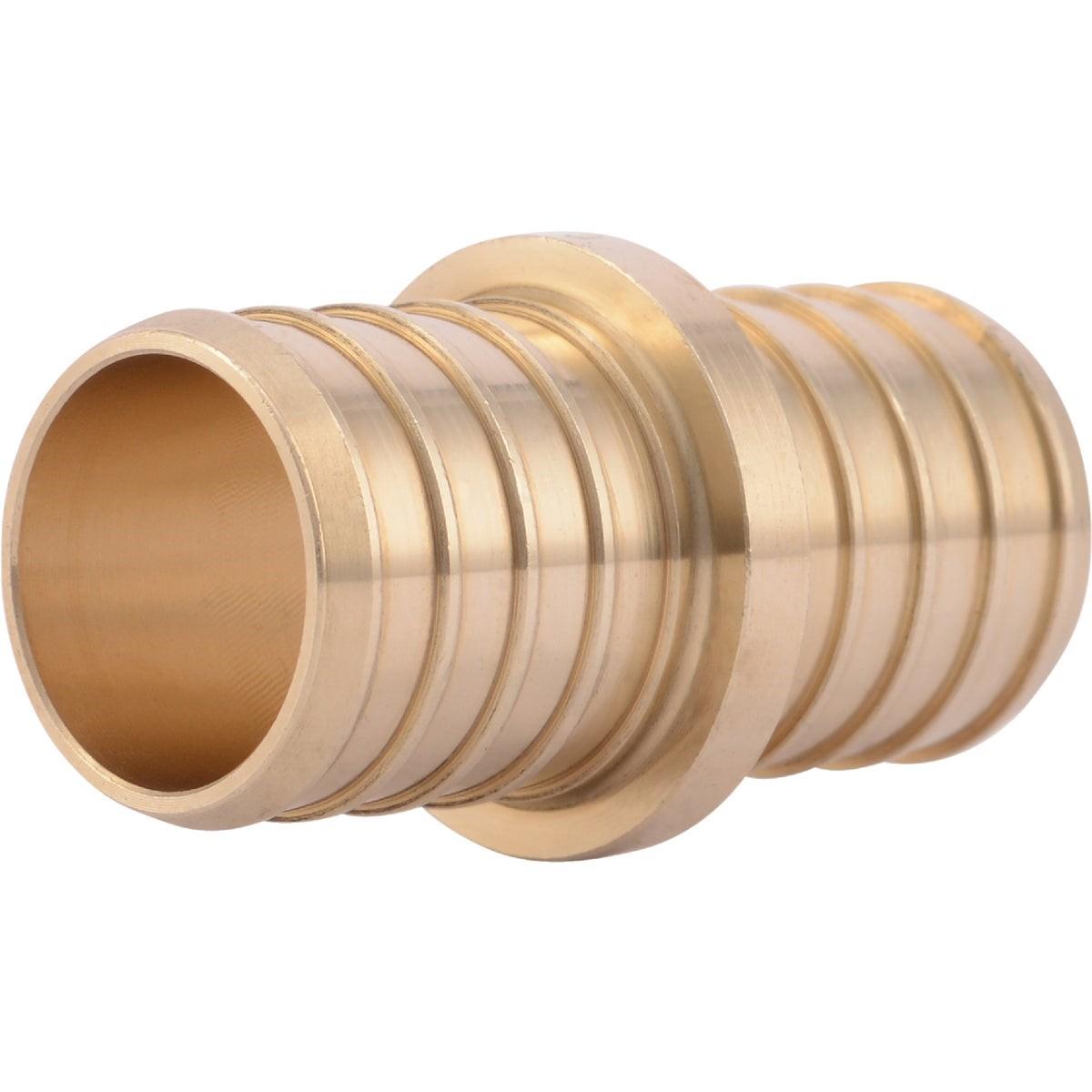

The RWC UC020LFA is a lead-free DZR brass PEX barb coupling designed to connect PEX tubing in residential and light commercial plumbing systems. The fitting features a 1-inch barb on each end and is built to meet NSF/ANSI 61 and NSF 372 standards for potable water contact, ensuring safe use in drinking water lines. Compliant with ASTM F1807, it is compatible with both stainless steel clamp ring and copper crimp ring installation methods, giving technicians flexibility depending on the tooling on hand. Plumbers and pipefitters install this fitting as a low-cost, reliable solution where PEX-to-PEX connections are needed.

This coupling is suited for potable water distribution and hydronic heating applications. It works in residential new construction, remodel work, and repair scenarios where PEX tubing is the pipe material of choice. The fitting accepts standard clamp or crimp rings, which are sold separately, and is sized at 1 inch barb by 1 inch barb for straight inline connections. Its lead-free DZR brass construction meets current regulatory requirements for installations in potable water systems across most jurisdictions.

Key Features

• Lead-free DZR brass construction meets NSF 372 lead-free requirements
• 1 inch barb x 1 inch barb configuration for straight inline PEX connections
• Compatible with stainless steel clamp ring and copper crimp ring systems
• Rated for potable water distribution and hydronic heating applications
• Meets ASTM F1807 and NSF/ANSI 61 standards

Compatibility

Compatible with PEX tubing in potable water distribution and hydronic heating systems. Works with stainless steel clamp ring systems and copper crimp ring systems; rings sold separately.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter. Shut off the water supply and depressurize the line before cutting and fitting. Use the appropriate clamp or crimp tool rated for the ring system selected; do not mix clamp and crimp rings on the same fitting. Installations in potable water systems should comply with applicable local plumbing codes and NSF 372 lead-free requirements.

Technical Specifications

• Connection Type: Barb x Barb
• Size: 1 inch x 1 inch
• Material: Lead-Free DZR Brass
• Weight: 0.084 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC020LFA
