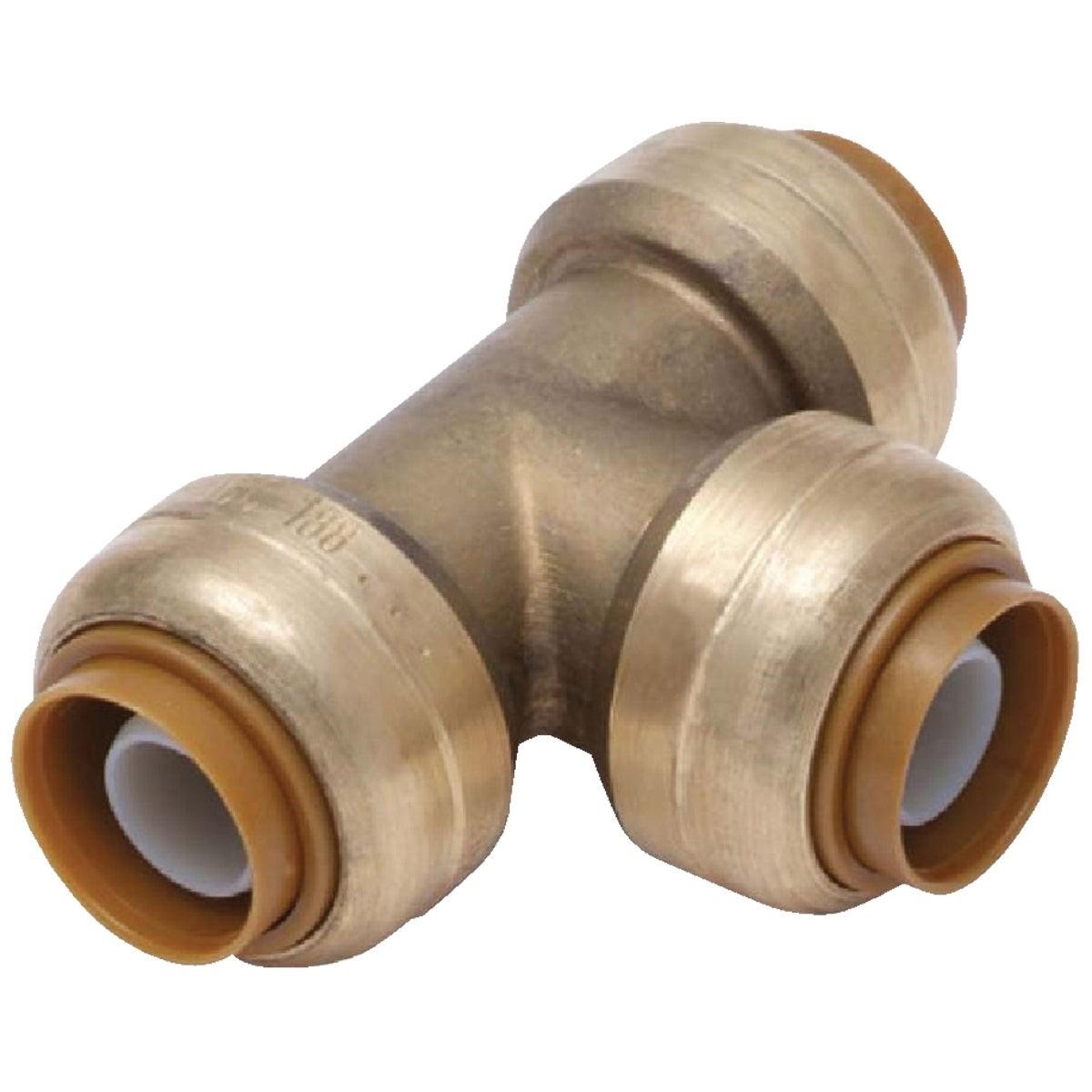

Rwc U374LFA Sharkbite Max Brass Push-to-connect Tee 1 in

Product Description

The RWC U374LFA is a SharkBite Max brass push-to-connect tee fitting designed for fast, tool-free pipe connections in residential and light commercial plumbing systems. All three ports measure 1 inch, making this a full-size tee for main-line branching work. The fitting features a stainless-steel retainer and a 250 psi pressure rating, delivering added strength over first-generation push-to-connect designs. No soldering, clamps, unions, glue, or special tools are required. The redesigned body reduces insertion effort and eliminates the need for a PEX tube liner. Licensed plumbers and experienced DIYers install this fitting during new construction, remodel, or repair work where speed and reliability are the priority.

The U374LFA is suited for residential and light commercial plumbing installations where a 1-inch tee connection is required. It is compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe. The fitting can be rotated after installation for quick adjustments and removed with a standard SharkBite disconnect tool, allowing it to be repositioned or reused. Typical applications include water supply branch-offs, manifold connections, and in-line service points where shut-off access or future modification is anticipated.

Key Features

• 250 psi pressure rating for added system integrity
• Stainless-steel retainer for increased grip strength and durability
• Reduced insertion effort compared to first-generation SharkBite fittings
• No PEX tube liner required
• Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
• Rotatable after installation and removable with a disconnect tool for reuse

Compatibility

Compatible with 1-inch PEX, copper, CPVC, PE-RT, and HDPE pipe. No additional adapters or liners are required for these pipe types.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson in accordance with local plumbing codes and the IPC. Shut off the water supply and relieve system pressure before cutting into any existing line. Ensure pipe ends are cut square, deburred, and clean before insertion. Use a SharkBite disconnect clip or disconnect tool for removal — do not attempt to pull the fitting free without the proper tool.

Technical Specifications

• Connection Size: 1 inch x 1 inch x 1 inch
• Pressure Rating: 250 psi
• Retainer Material: Stainless Steel
• Body Material: Brass
• Compatible Pipe Types: PEX, Copper, CPVC, PE-RT, HDPE
• Weight: 0.734 pounds
• UPC: 00697285466012

Standard Information

• Brand: RWC
• Manufacturer Part Number: U374LFA
