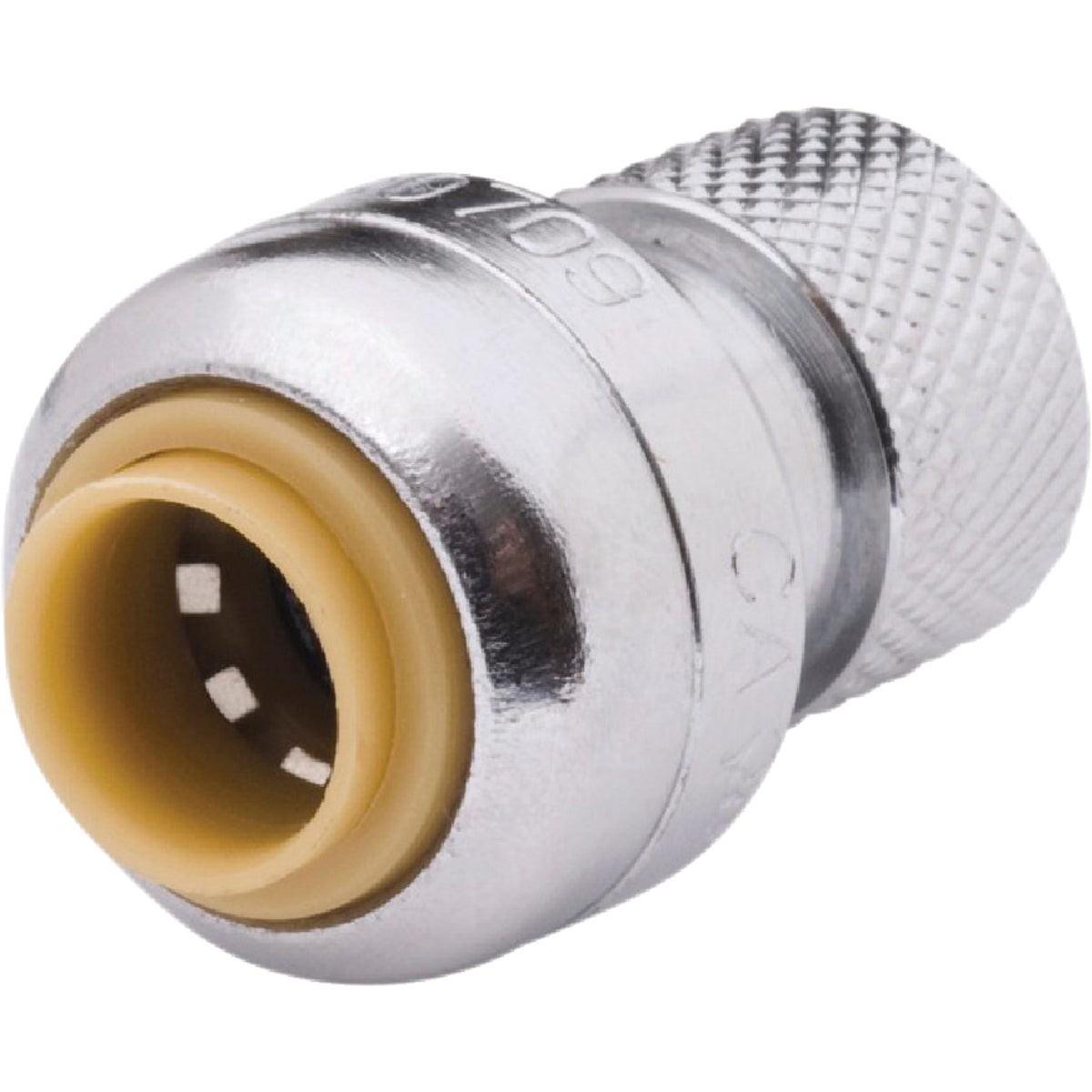

Rwc U3523LFA Push-to-connect Brass Stop Valve Adapter

Product Description

The RWC U3523LFA is a chrome-plated, push-to-connect brass stop valve adapter designed for quick, tool-free connections in water supply applications. It features a 1/4-inch SharkBite (SB) inlet and a 3/8-inch outside diameter (OD) compression outlet. Constructed from one-piece DZR (dezincification-resistant) brass, it resists corrosion in high-mineral and aggressive water conditions. Rated for service up to 200 degrees F and 200 psi, this adapter is suitable for demanding residential and light commercial plumbing environments. Plumbers and skilled tradespeople install this fitting when connecting stop valves to supply lines without soldering or special tooling.

This adapter is compatible with copper, CTS (copper tube size), PEX (cross-linked polyethylene), and CPVC (chlorinated polyvinyl chloride) tubing, making it versatile across common supply line materials. Typical install scenarios include under-sink fixture connections, toilet supply risers, and any application requiring a transition from a SharkBite push-fit connection to a 3/8-inch OD compression stop valve. The fitting can be installed in concealed locations, including buried runs and behind drywall, without requiring access panels for ongoing maintenance.

Key Features

• 1/4-inch SharkBite push-to-connect inlet by 3/8-inch OD compression outlet
• One-piece DZR brass construction resists dezincification in aggressive water conditions
• Rated to 200 degrees F and 200 psi for residential and light commercial service
• Compatible with copper, CTS, PEX, and CPVC tubing — no soldering or crimping required
• Approved for concealed installations including buried and behind-drywall locations
• Removable and reusable fitting — allows reconnection without replacing the adapter

Compatibility

Designed for use with copper, CTS, PEX, and CPVC tubing. Suitable as an OEM-style push-to-connect stop valve adapter in residential and light commercial plumbing systems where a 1/4-inch SharkBite connection transitions to a 3/8-inch OD compression stop valve.

Installation Notes

Installation is performed by licensed plumbers or qualified tradespeople following local plumbing codes and IPC guidelines. Shut off the water supply and relieve line pressure before installing or removing the fitting. No solder, clamps, or special tooling are required for the push-to-connect end; ensure tubing is cut cleanly and squarely and inserted to full depth. To disconnect a SharkBite fitting, use the manufacturer-recommended disconnect clip or tool to avoid damaging the collet.

Technical Specifications

• Inlet Connection: 1/4 inches SharkBite push-to-connect
• Outlet Connection: 3/8 inches OD compression
• Material: One-piece DZR brass, chrome-plated
• Maximum Pressure Rating: 200 psi
• Maximum Temperature Rating: 200 degrees F
• Compatible Tube Types: Copper, CTS, PEX, CPVC
• Weight: 0.134 pounds
• Sold As: Each, individually bagged

Standard Information

• Brand: RWC
• Manufacturer Part Number: U3523LFA
