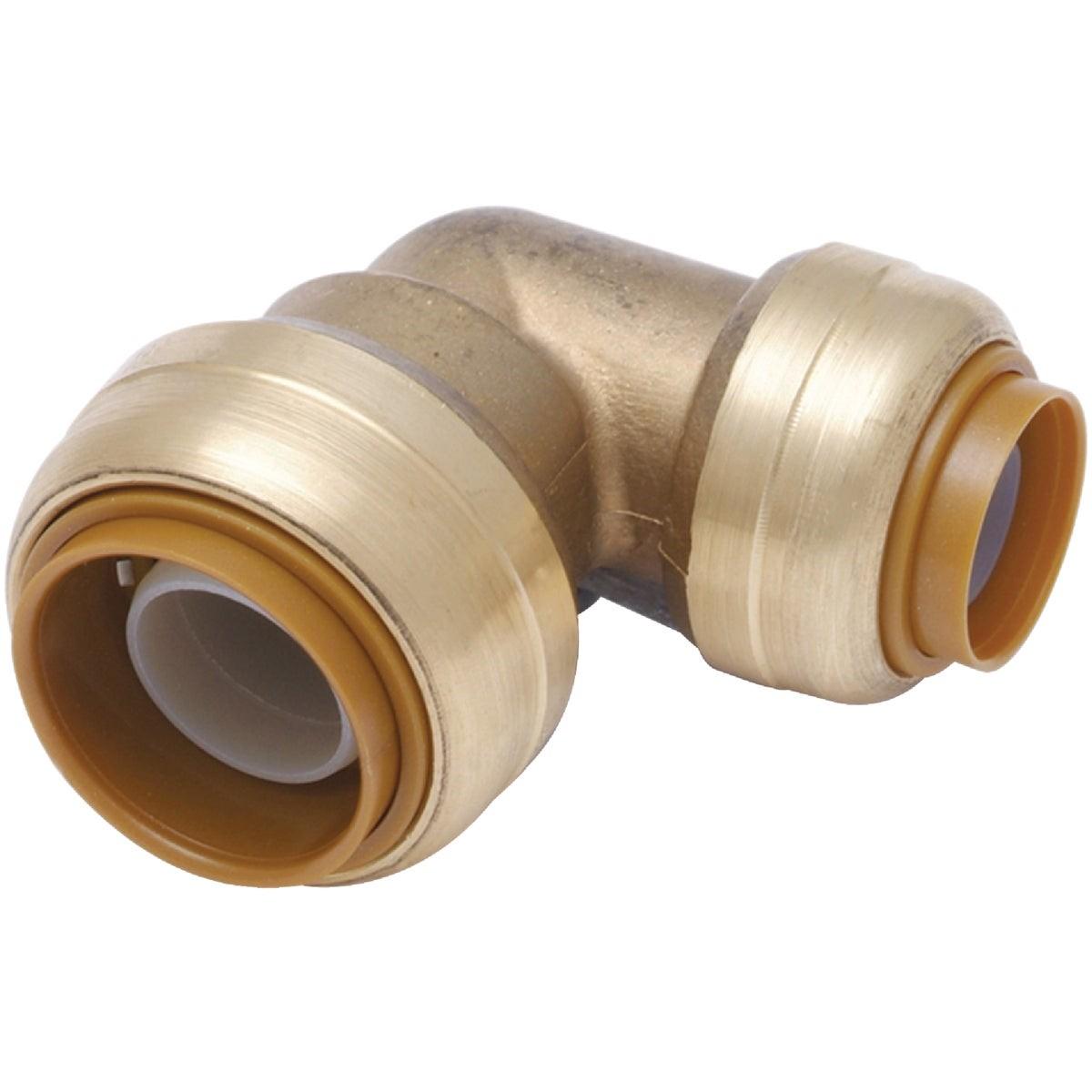

Rwc U274LFA Sharkbite Reducing Brass Elbow 3/4x1/2 in

Product Description

The RWC U274LFA is a SharkBite push-to-connect reducing brass elbow designed to make a 90-degree directional change while transitioning from a 3/4-inch line to a 1/2-inch line. The fitting connects without soldering, crimping, or gluing, making it a fast and reliable choice for licensed plumbers and experienced DIYers working on water distribution systems. It is rated to 200 psi and 200 degrees F, and it carries IAPMO IGC 188 and ANSI/NSF 61 certifications with a low-lead brass construction. Compatible with OD-controlled copper, CPVC, and PEX tubing, this elbow covers the most common pipe types found in residential and light commercial plumbing.

This fitting is suited for residential and light commercial water supply applications where a reducing 90-degree turn is needed between 3/4-inch and 1/2-inch pipe runs. Typical installation scenarios include branch lines off a main distribution line, fixture supply connections, and repair or retrofit work where torch access is limited or not desirable. The push-to-connect design allows the fitting to be installed quickly on copper, CPVC, or PEX without special tools beyond a pipe cutter and deburring tool.

Key Features

• Push-to-connect installation requires no soldering, crimping, or solvent welding
• Rated to 200 psi and 200 degrees F for demanding water supply service
• Low-lead brass construction meets modern plumbing code requirements
• IAPMO IGC 188 and ANSI/NSF 61 certified for potable water contact
• Compatible with OD-controlled copper, CPVC, and PEX tubing
• Reduces from 3/4 inch to 1/2 inch in a single 90-degree fitting

Compatibility

Designed for use with OD-controlled copper, CPVC, and PEX tubing. Suitable as a push-to-connect reducing elbow in residential and light commercial potable water supply systems.

Installation Notes

Installation is performed by licensed plumbers or qualified tradespeople in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and relieve system pressure before making any connections. Ensure pipe ends are cut square, fully deburred, and clean before inserting into the fitting to achieve a proper seal. Do not exceed the rated pressure and temperature limits of 200 psi and 200 degrees F during service.

Technical Specifications

• Inlet Size: 3/4 inches
• Outlet Size: 1/2 inches
• Connection Type: Push-to-Connect
• Fitting Angle: 90 degrees (1/4 Bend)
• Material: Low-Lead Brass
• Maximum Pressure Rating: 200 psi
• Maximum Temperature Rating: 200 degrees F
• Compatible Pipe Types: OD-Controlled Copper, CPVC, PEX
• Certifications: IAPMO IGC 188, ANSI/NSF 61
• Weight: 0.259 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: U274LFA
