Rwc U068LFA 1/2x3/4 in Fnpt Reducing Push-to-connect Adapter

Product Description

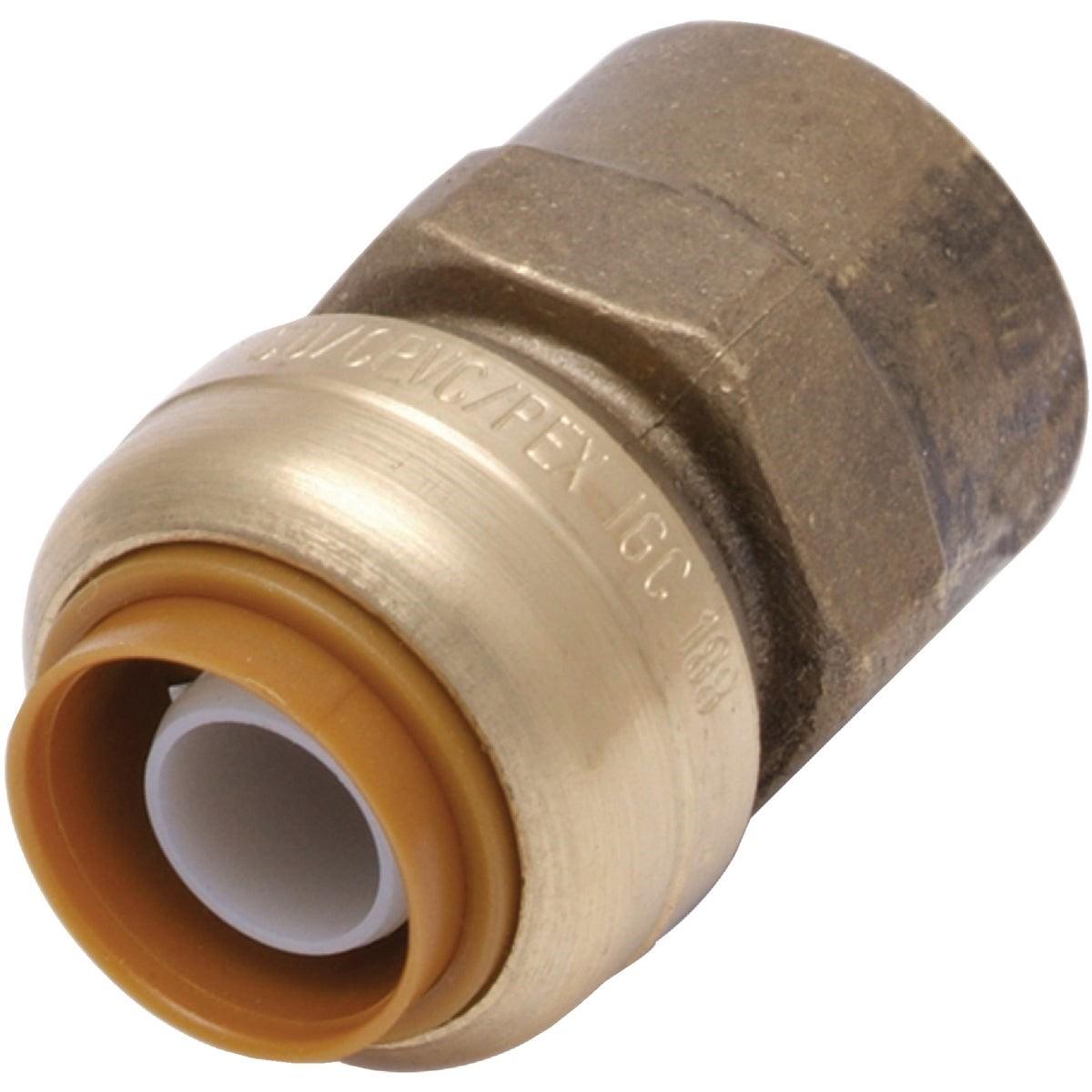

The RWC U068LFA is a reducing brass push-to-connect female adapter designed for fast, tool-free plumbing connections in residential and light commercial water systems. It transitions from a 1/2-inch push-to-connect inlet to a 3/4-inch female NPT threaded outlet, eliminating the need for solder, glue, or unions. Constructed from one-piece DZR brass with a weighted average lead content of no more than 0.25% on wetted surfaces, it is rated for service up to 200 degrees F and 200 psi. The fitting is removable with a disconnect clip and fully reusable, making it a practical choice for service and repair work.

This adapter is suited for potable water distribution lines in residential and commercial plumbing systems. It is compatible with copper, PEX, and CPVC pipe and is appropriate for concealed installations, including behind drywall and buried applications where permitted by local code. Licensed plumbers and experienced mechanical contractors typically install this fitting in retrofit and new-construction scenarios where speed and reliability are priorities. The fitting ships individually bagged for single-unit use.

Key Features

• Tool-free push-to-connect installation — no solder, glue, or unions required
• Removable with a disconnect clip and fully reusable
• Rated to 200 degrees F and 200 psi
• Compatible with copper, PEX, and CPVC pipe
• One-piece DZR brass construction with no more than 0.25% weighted average lead content on wetted surfaces
• Approved for concealed installations behind drywall and in buried applications

Compatibility

Compatible with copper, PEX, and CPVC pipe. Suitable for potable water systems meeting UPC, IAPMO, and NSF-61 requirements.

Installation Notes

Installation is performed by licensed plumbers or qualified mechanical contractors. Shut off the water supply and depressurize the line before installing or removing the fitting. Ensure pipe ends are cut cleanly and deburred before inserting into the push-to-connect inlet. To remove, use a manufacturer-approved disconnect clip — do not force or pry the fitting from the pipe without the proper tool.

Technical Specifications

• Inlet Size: 1/2 inch push-to-connect
• Outlet Size: 3/4 inch FNPT
• Pressure Rating: 200 psi
• Temperature Rating: 200 degrees F
• Material: One-piece DZR brass
• Lead Content: No more than 0.25% weighted average on wetted surfaces
• Compatible Pipe Types: Copper, PEX, CPVC
• Weight: 0.225 pounds
• Certifications: UPC, IAPMO, NSF-61
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: U068LFA
