Rwc U066LFA Sharkbite Push-to-connect Female Adapter

Product Description

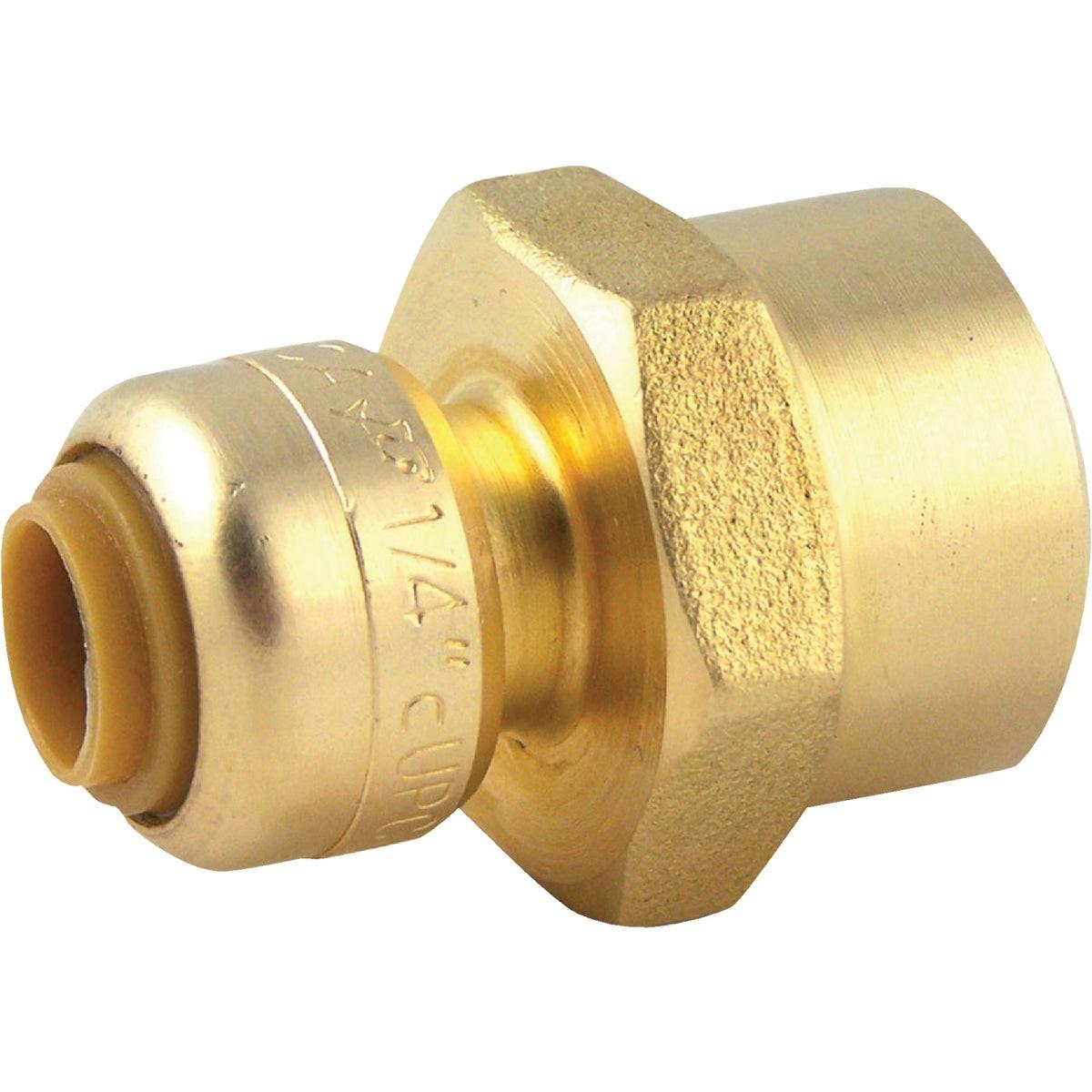

The RWC U066LFA is a SharkBite push-to-connect reducing female adapter that joins a 1/4-inch nominal (3/8-inch OD) push-fit connection to a 1/2-inch female NPT threaded port. Constructed from one-piece DZR brass, it requires no solder, glue, unions, or special tools for installation. The fitting is rated for 200 degrees F and 200 psi, making it suitable for a wide range of residential and light commercial plumbing applications. Licensed plumbers and experienced service techs install this fitting when a quick, reliable transition between push-fit tubing and a threaded female port is needed without heat or adhesives.

This adapter is suited for residential and light commercial potable water systems. It is compatible with copper, PEX, and CPVC tubing. The push-to-connect mechanism allows fast connections in tight spaces, including locations behind drywall or in buried applications where access is limited. It ships individually bagged and is sold as a single unit.

Key Features

• No-solder, no-glue installation — push-to-connect design requires no special tools
• One-piece DZR brass construction for corrosion resistance in potable water service
• Rated at 200 degrees F and 200 psi
• Removable and reusable with a disconnect clip (clip sold separately)
• Approved for behind-drywall and buried installations
• Lead content limited to no more than 0.25% weighted average on wetted surfaces, meeting low-lead requirements

Compatibility

Compatible with copper, PEX, and CPVC tubing at the push-fit end. The threaded end accepts standard 1/2-inch female NPT connections. Suitable for potable water distribution in residential and light commercial plumbing systems.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve line pressure before connecting or disconnecting the fitting. Ensure tubing is cut square and deburred before insertion into the push-fit end to achieve a proper seal. To disconnect, use a SharkBite disconnect clip tool against the collet ring before pulling the tubing free.

Technical Specifications

• Inlet Size (Push-Fit): 1/4 inches nominal (3/8 inches OD)
• Outlet Size (Threaded): 1/2 inches FNPT
• Material: DZR Brass (one-piece)
• Pressure Rating: 200 psi
• Temperature Rating: 200 degrees F
• Lead Content: 0.25% maximum weighted average on wetted surfaces
• Weight: 0.192 pounds
• Certifications: UPC, IAPMO, NSF-61
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: U066LFA
