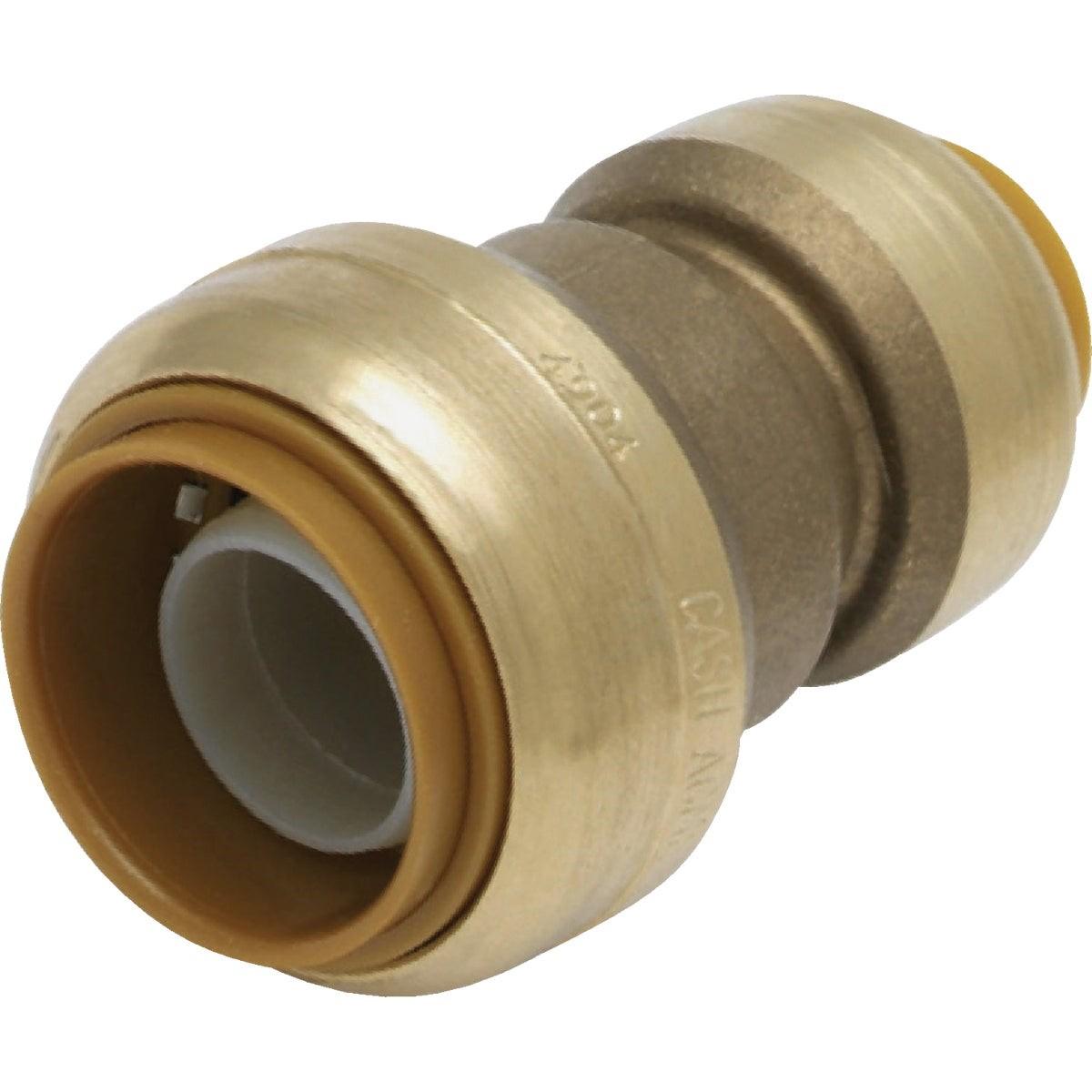

Rwc U060LFA Sharkbite Brass Reducing Coupling 1x3/4 in

Product Description

The RWC U060LFA is a SharkBite push-to-connect reducing coupling designed for fast, tool-free connections in residential and light commercial plumbing systems. Constructed from one-piece DZR (dezincification-resistant) brass, this fitting reduces a 1-inch line to a 3/4-inch line without soldering, crimping, or gluing. It is rated for 200 degrees F and 200 psi, making it suitable for both hot and cold water supply applications. The fitting carries UPC, IAPMO, and NSF-61 certifications and meets lead-free requirements with no more than 0.25% weighted average lead content on wetted surfaces. Licensed plumbers and experienced DIYers install this fitting in minutes.

This reducing coupling is compatible with copper, PEX, and CPVC pipe in potable water systems. It is approved for concealed installations, including burial and placement behind drywall, which makes it a practical solution for repairs and remodels where access is limited. Each fitting is individually bagged and sold as a single unit. Typical applications include branch line reductions, water heater connections, and service line transitions where two different pipe sizes must be joined quickly and reliably.

Key Features

• Push-to-connect design — no soldering, crimping, or gluing required
• One-piece DZR brass construction for corrosion resistance
• Rated for 200 degrees F and 200 psi service conditions
• Compatible with copper, PEX, and CPVC pipe
• Approved for burial and behind-drywall installation
• Removable and reusable with a SharkBite disconnect clip or removal tool
• NSF-61 certified and meets lead-free weighted average requirements

Compatibility

Compatible with copper, PEX, and CPVC pipe. Designed for 1-inch inlet to 3/4-inch outlet reducing connections in potable water plumbing systems.

Installation Notes

Installation is performed by licensed plumbers or qualified trades. Shut off the water supply and relieve line pressure before installing or removing the fitting. Ensure pipe ends are cut cleanly and squarely and are free of burrs, debris, and moisture before insertion. To disconnect, use a SharkBite removal tool or disconnect clip — never attempt to pull the fitting free without releasing the collet, as this can damage the pipe and fitting. Follow all applicable local plumbing codes and IPC guidelines for push-fit fittings in concealed locations.

Technical Specifications

• Inlet Size: 1 inch
• Outlet Size: 3/4 inch
• Connection Type: Push-to-Connect
• Material: DZR Brass (one-piece)
• Pressure Rating: 200 psi
• Temperature Rating: 200 degrees F
• Compatible Pipe Types: Copper, PEX, CPVC
• Lead Content: 0.25% maximum weighted average on wetted surfaces
• Certifications: UPC, IAPMO, NSF-61
• Weight: 0.334 pounds
• Sold As: Each (individually bagged)
• UPC: 00697285465671

Standard Information

• Brand: RWC
• Manufacturer Part Number: U060LFA
