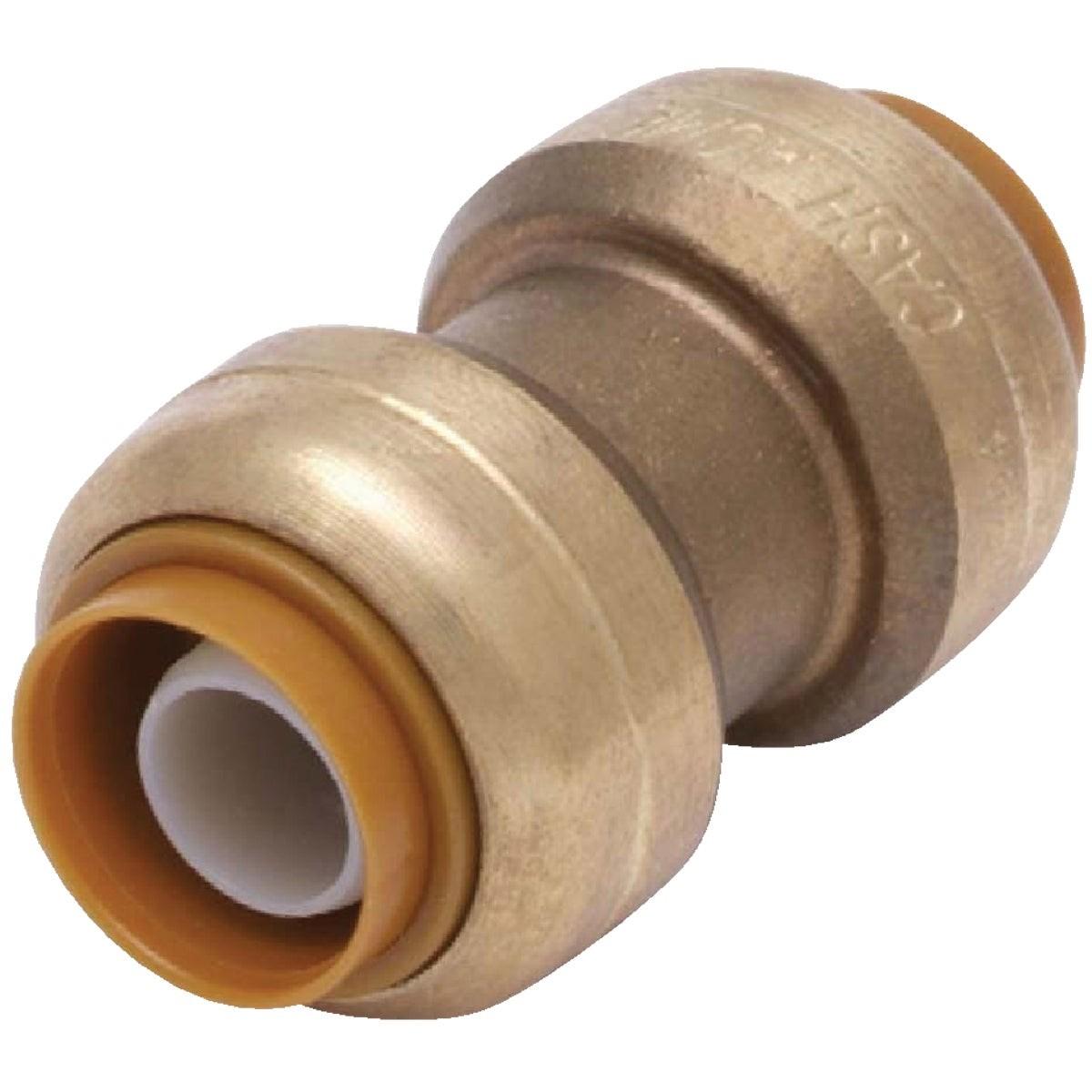

Rwc U020LFA Sharkbite Max 1 in Brass Coupling

Product Description

The RWC U020LFA is a 1-inch push-to-connect straight brass coupling from the SharkBite Max product line. It creates a leak-free joint without soldering, clamps, glue, or special tools. The redesigned stainless-steel retainer delivers a 250 psi pressure rating and is engineered to accept pipe insertion with reduced effort compared to first-generation SharkBite fittings. The body does not require a PEX tube liner. Once installed, the fitting can rotate freely for quick positional adjustments. Removal is accomplished with a standard SharkBite disconnect tool, making the fitting reusable. Licensed plumbers and pipefitters are the primary installers, though the tool-free design also suits knowledgeable service technicians.

The U020LFA is suited for residential and light commercial plumbing systems where fast, reliable pipe joining is required. It connects PEX, copper, CPVC, PE-RT, and HDPE pipe in a single straight-run configuration. Typical applications include water supply lines, fixture supply branches, and repair connections where torch work is restricted or impractical. Sold individually, it is a direct push-to-connect solution for 1-inch pipe diameter runs.

Key Features

• 250 psi pressure rating for residential and commercial water supply applications
• Stainless-steel retainer provides increased strength and durability over first-generation design
• Reduced insertion effort compared to original SharkBite push-to-connect fittings
• No PEX tube liner required
• Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
• Fitting rotates after installation for positional adjustments; removable and reusable with a disconnect tool

Compatibility

Designed for use with 1-inch PEX, copper, CPVC, PE-RT, and HDPE pipe. Verify pipe outside diameter and pipe type markings before installation to confirm fitment.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters. Shut off the water supply and depressurize the line before making or breaking any connection. Cut pipe ends square, deburr, and clean before insertion to ensure a full, leak-free seat. Use an approved SharkBite disconnect clip or disconnect tool when removing the fitting; do not attempt to pull the fitting free without the proper tool.

Technical Specifications

• Pipe Size: 1 inch
• Connection Type: Push-to-connect, straight coupling
• Pressure Rating: 250 psi
• Retainer Material: Stainless steel
• Body Material: Brass
• Compatible Pipe Types: PEX, copper, CPVC, PE-RT, HDPE
• Weight: 0.35 pounds
• Sold As: Each
• UPC: 00697285465657

Standard Information

• Brand: RWC
• Manufacturer Part Number: U020LFA
