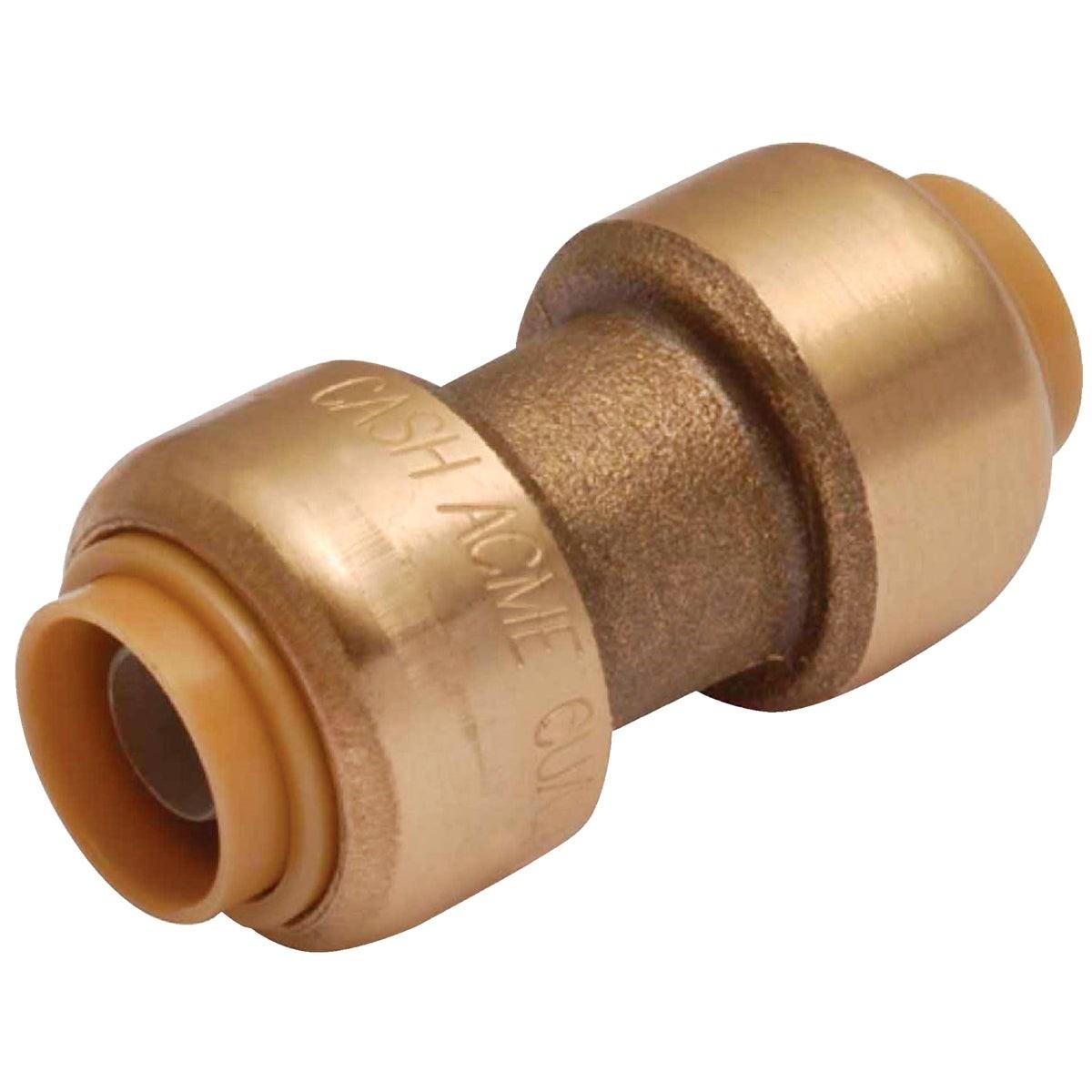

Rwc U006LFA Sharkbite Max Straight Brass Coupling

Product Description

The RWC U006LFA is a SharkBite Max push-to-connect straight brass coupling designed for 3/8-inch pipe with a 1/2-inch outside diameter. It joins two sections of pipe without soldering, clamps, glue, or special tools, making it a fast solution for repairs and new installations. The stainless-steel retainer delivers a 250 psi pressure rating and is engineered for reduced insertion effort compared to first-generation SharkBite fittings. A re-engineered body eliminates the need for a PEX tube liner. Licensed plumbers and experienced tradespeople use this fitting in both rough-in and repair scenarios where speed and reliability are required.

The U006LFA is suited for residential and light commercial plumbing applications. It is compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe, covering the most common pipe materials found in modern plumbing systems. The fitting can be rotated after installation to ease alignment, and it is removable and reusable with a standard SharkBite disconnect tool, making it practical for tight spaces and retrofit work where access is limited.

Key Features

• 250 psi pressure rating with stainless-steel retainer for added strength
• Reduced insertion effort versus first-generation SharkBite push-to-connect fittings
• No soldering, clamps, unions, glue, or special tools required
• No PEX tube liner needed due to re-engineered body design
• Rotates after installation for quick alignment adjustments
• Removable and reusable with a SharkBite disconnect tool

Compatibility

Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe in 3/8-inch pipe size with 1/2-inch outside diameter.

Installation Notes

Installation is performed by licensed plumbers or qualified tradespeople. Shut off the water supply and relieve system pressure before making any connections. Cut pipe ends should be clean, square, and deburred to ensure a proper seal. Follow all applicable local plumbing codes and IPC guidelines when using push-to-connect fittings in permanent installations.

Technical Specifications

• Pipe Size: 3/8 inches
• Outside Diameter: 1/2 inches
• Pressure Rating: 250 psi
• Retainer Material: Stainless Steel
• Body Material: Brass
• Connection Type: Push-to-Connect
• Pipe Compatibility: PEX, Copper, CPVC, PE-RT, HDPE
• Weight: 0.138 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: U006LFA
