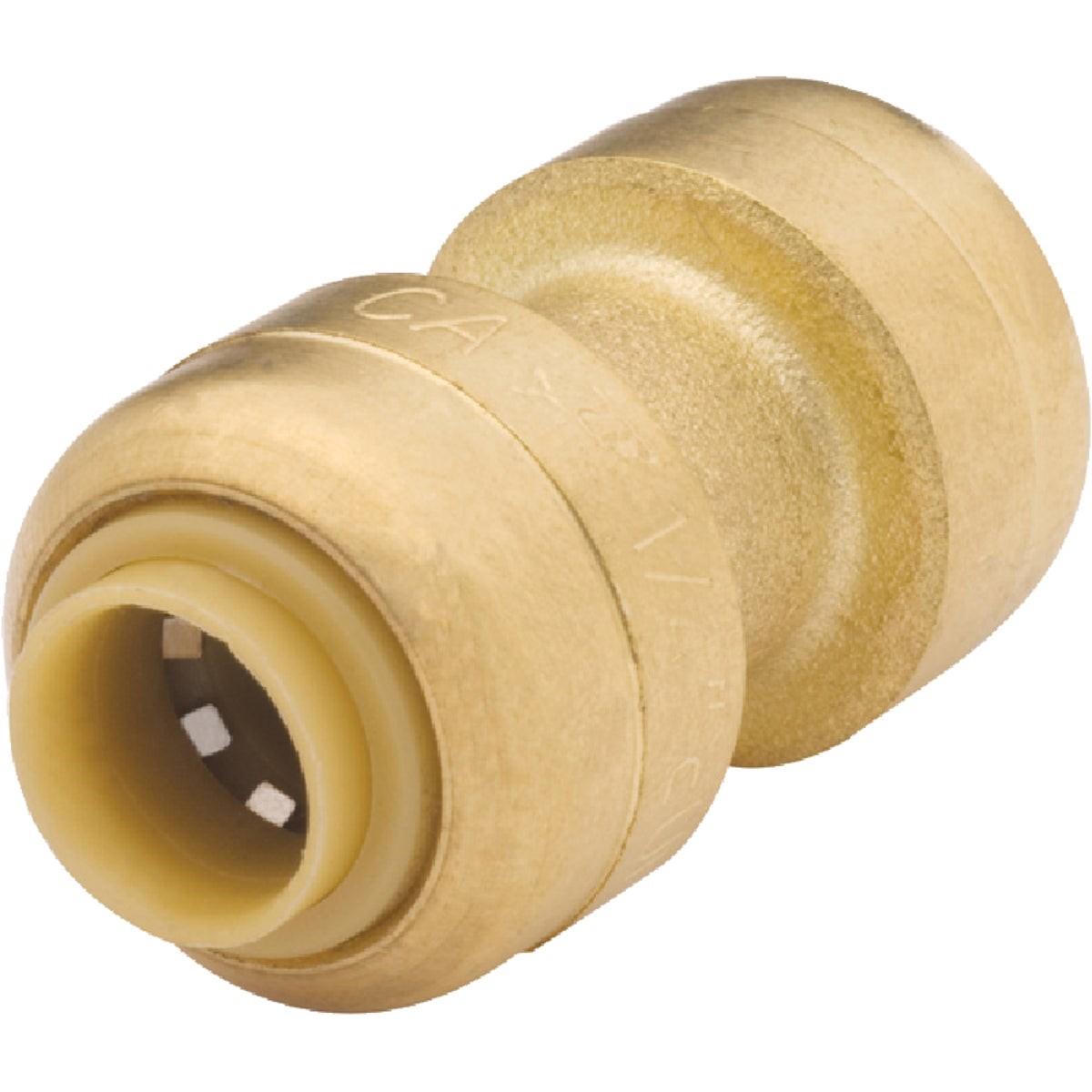

Rwc U004LFA Sharkbite Max Straight Brass Coupling 1/4 in

Product Description

The RWC U004LFA is a SharkBite Max push-to-connect straight brass coupling designed for fast, tool-free pipe connections in residential and light commercial plumbing systems. This 1/4-inch (3/8-inch OD) fitting features a redesigned stainless-steel retainer for added strength and durability, and carries a 250 psi pressure rating. The re-engineered body reduces insertion effort and eliminates the need for a PEX tube liner. No soldering, clamps, unions, glue, or special tools are required. Licensed plumbers and experienced installers use this fitting for efficient, code-compliant connections across a wide range of pipe types.

The U004LFA is suited for residential and light commercial water distribution applications where quick, reliable connections are needed. It connects PEX, copper, CPVC, PE-RT, and HDPE pipe without transition fittings or primers. The fitting can be rotated after installation to ease alignment in tight spaces, and it can be removed and reused with a standard SharkBite disconnect tool, making it practical for retrofit work, repairs, and valve replacements in accessible or concealed installations.

Key Features

• 250 psi pressure rating for reliable performance in pressurized water lines
• Stainless-steel retainer provides added grip strength and long-term durability
• Reduced insertion effort compared to first-generation SharkBite push-to-connect fittings
• No PEX tube liner required
• Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
• Fitting rotates after installation and can be removed and reused with a disconnect tool

Compatibility

Designed for use with 1/4-inch (3/8-inch OD) PEX, copper, CPVC, PE-RT, and HDPE pipe as stated by the manufacturer.

Installation Notes

Installation is performed by licensed plumbers or qualified tradespeople. Shut off the water supply and relieve line pressure before installing or removing the fitting. Ensure pipe ends are cut cleanly and squarely and are free of burrs or debris before insertion. Use a SharkBite disconnect clip or disconnect tool when removing the fitting to avoid damaging the collet or pipe surface.

Technical Specifications

• Connection Type: Push-to-Connect
• Configuration: Straight Coupling
• Pipe Size: 1/4 inches
• Pipe OD: 3/8 inches
• Pressure Rating: 250 psi
• Retainer Material: Stainless Steel
• Body Material: Brass
• Weight: 0.109 pounds
• Sold As: Each
• UPC: 00697285008045

Standard Information

• Brand: RWC
• Manufacturer Part Number: U004LFA
