Rwc SBDC41 Demount Clip 1-1/2 Inches Sharkbite

Product Description

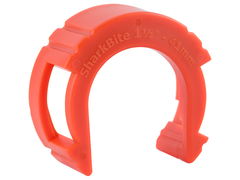

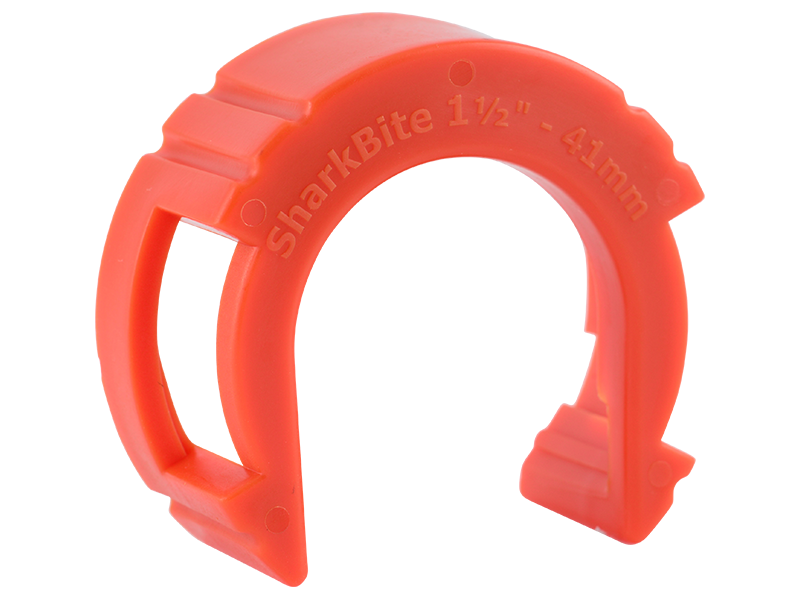

The RWC SBDC41 is a 1-1/2 inch demount clip designed for use with SharkBite push-fit fittings and related SB-series components. This small tool allows technicians and plumbers to disengage push-to-connect fittings from pipe without damaging the fitting or the pipe end. It is used during service, repair, or system modification where push-fit connections need to be released cleanly. The SBDC41 is sized specifically for 1-1/2 inch connections and is a standard item in the toolkit of any plumber working with push-fit plumbing systems.

This demount clip is intended for use in residential and light commercial plumbing applications wherever SharkBite SB-series push-fit fittings are installed. It is the appropriate tool for 1-1/2 inch pipe connections, commonly found in drain, waste, and supply configurations. Plumbers use this clip during retrofit work, fixture replacement, and any repair scenario requiring non-destructive disconnection of push-fit joints. Note that this part has been replaced by UXLDC41 in the current product line.

Key Features

• Sized for 1-1/2 inch push-fit fittings in the SharkBite SB product family
• Allows non-destructive release of push-to-connect fittings from pipe
• Compatible with SB-series fitting components
• Compact clip design for use in tight installation spaces
• Superseded by UXLDC41 for current replacement orders

Compatibility

Designed for use with SharkBite SB-series push-fit fittings at 1-1/2 inch pipe size. This part has been replaced by UXLDC41.

Installation Notes

This clip is used by licensed plumbers to release push-fit connections during service or repair. Shut off water supply and relieve system pressure before attempting to disconnect any push-fit fitting. Slide the demount clip evenly around the pipe at the fitting collar and push toward the fitting body to release the collet before withdrawing the pipe. Follow local plumbing codes and the fitting manufacturer's instructions for disconnection procedures.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Application: Push-fit fitting demount tool
• Replaces: UXLDC41 (current replacement part number)

Standard Information

• Brand: RWC
• Manufacturer Part Number: SBDC41
