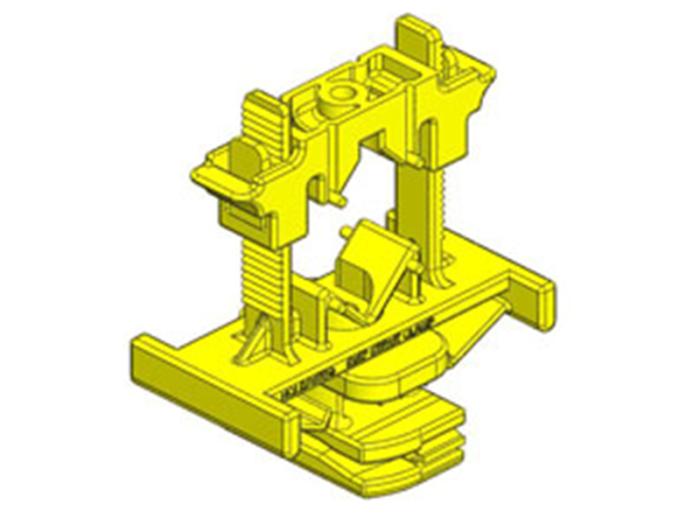

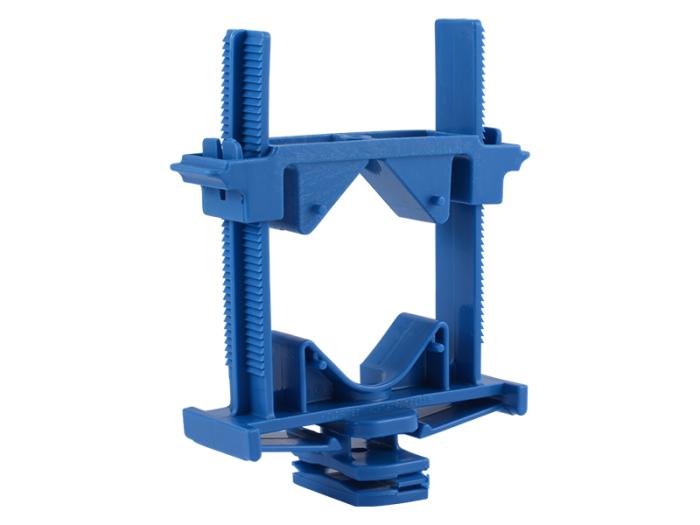

RWC 287S Strut Clamp

Product Description

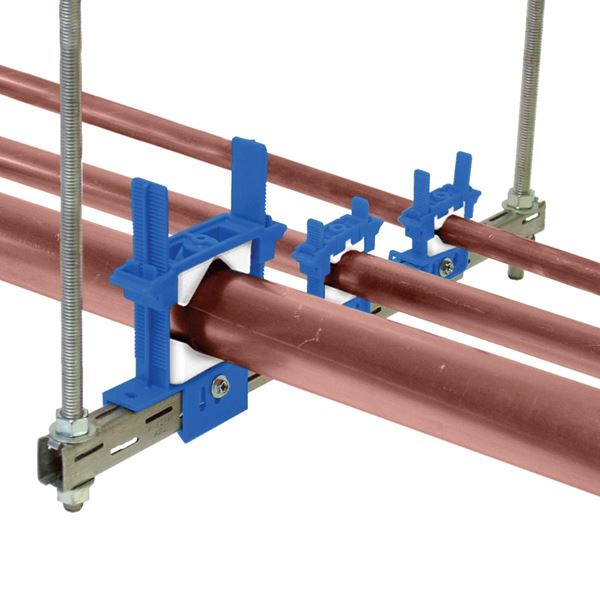

The RWC 287S strut clamp is used for securing various tubing types directly to a strut or channel. It is compatible with copper, PEX, and CPVC tubing, supporting sizes from one to two CTS/IPS. This clamp is made of flame and smoke rated material, meeting ASTM E-84 25/50 and UL94V-0 fire safety standards. Tool-free installation simplifies the setup process.

• Compatible with tubing sizes from one to two CTS/IPS
• Designed for use with copper, PEX, and CPVC
• Tool-free installation feature

Product Highlights

Efficiently secures tubing to struts, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: RWC
• MPN: 287S

Technical Specifications

• Pipe Size: 1-2 inches CTS
• Load Rating (Suspended Mode): 75 lb
• Load Rating (Top Mount): 300 lb
• Dimensions: 3.5 inches x 4.875 inches
• Top & Bottom Clamp Material: Kynar Flex, Yellow
• Pads Material: TPR, natural (off-white), 50 shore A
• Industry Standards/Certifications: ASTM E-84 25/50, UL94V-0
• Operating Temperature (Min): -20 °F
• Operating Temperature (Max): 200 °F
