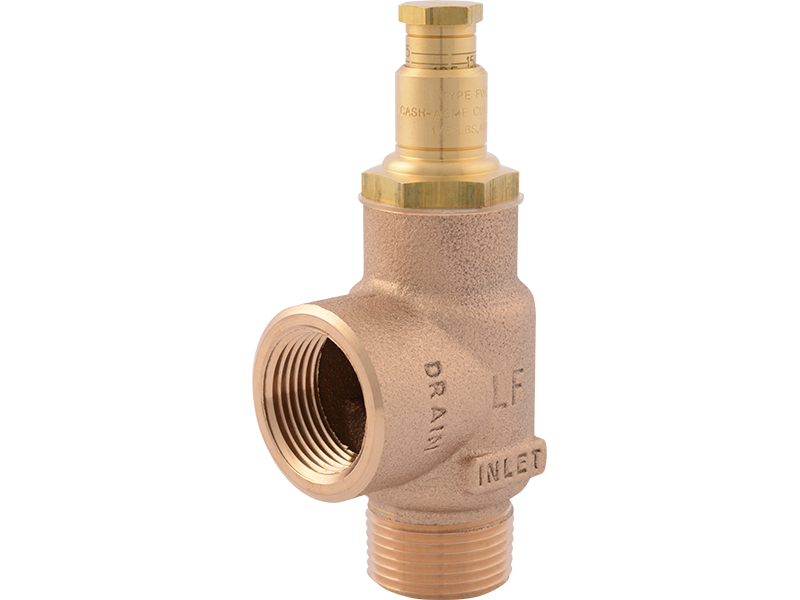

Rwc 09564-0125LF Pressure Relief Valve 125 Psi 3/4 in

Product Description

The RWC 09564-0125LF is a lead-free, static over-pressure relief valve designed for water systems requiring low-cost pressure protection at 125 PSI. The valve features a bronze body with a male inlet and female outlet, a silicone seat for reliable sealing, and a stainless steel spring for consistent pressure response. A calibrated adjusting screw allows field adjustment of the pressure setting without a pressure gauge. The 3/4-inch configuration makes it suitable for residential and light commercial plumbing applications where compact, dependable over-pressure protection is required. Licensed plumbers install this valve during new construction or retrofit service work.

The 09564-0125LF is intended for static over-pressure protection in potable water and plumbing systems. Its lead-free construction meets requirements for drinking water applications under applicable safe drinking water regulations. The 3/4-inch port size fits standard residential and small commercial supply lines. The valve is well-suited for installations where the pressure setting may need occasional adjustment without removing the valve from service or connecting a separate gauge.

Key Features

• Rated for 125 PSI static over-pressure protection
• Lead-free construction suitable for potable water service
• Bronze body with male inlet and female outlet connections
• Silicone seat provides reliable, corrosion-resistant sealing
• Stainless steel spring for consistent set-point performance
• Calibrated adjusting screw allows pressure setting changes without a pressure gauge

Compatibility

Designed as an OEM-style replacement relief valve for 3/4-inch residential and light commercial plumbing systems requiring lead-free, static over-pressure protection at 125 PSI.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before removing an existing valve or installing this unit. Apply appropriate thread sealant to male threads and tighten to hand-tight plus the manufacturer-recommended turns without over-torquing the bronze body. Verify the adjusted pressure setting against system design pressure after installation.

Technical Specifications

• Pressure Rating: 125 PSI
• Connection Size: 3/4 inches
• Inlet Connection: Male
• Outlet Connection: Female
• Body Material: Bronze
• Seat Material: Silicone
• Spring Material: Stainless Steel
• Lead Free: Yes
• UPC: 697285993365

Standard Information

• Brand: RWC
• Manufacturer Part Number: 09564-0125LF
