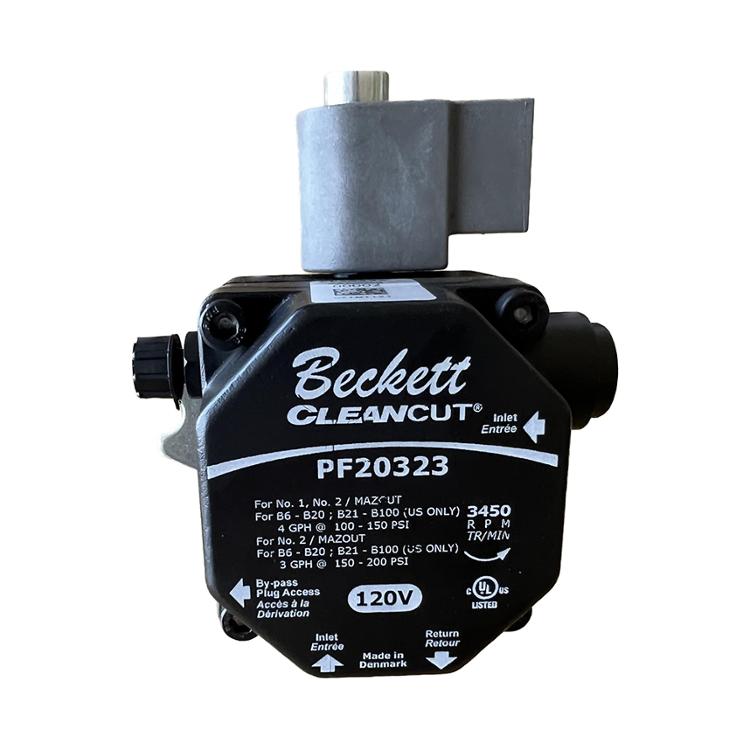

Rw Beckett pf203n2u Single Stage Fuel Pump 3450 Rpm

Product Description

The RW BECKETT pf203n2u is a single-stage fuel pump designed for residential and light commercial oil burner systems. Part of the Beckett Cleancut pump family, it combines solenoid valve control of fuel delivery to the nozzle with the lift performance associated with traditional American-style fuel pumps. Rated at 3450 RPM and UL Listed for use with fuels up to 100% biodiesel (B100), this pump is built for reliable operation in modern heating systems. It is installed by licensed oil burner technicians during new equipment installation or as a direct service replacement.

The pf203n2u is intended for use on SF and SM series oil burner applications. The Cleancut design addresses common service issues such as nozzle drip and difficult priming by integrating solenoid-controlled fuel cutoff directly into the pump body. This makes it well suited for one-pipe and two-pipe fuel delivery systems in residential forced-air and hydronic heating equipment. Technicians working on Beckett-equipped systems will find it a direct-fit replacement for worn or failed pump assemblies.

Key Features

• UL Listed for fuels up to 100% biodiesel (B100), meeting current clean-fuel requirements
• Single-stage pump design rated at 3450 RPM for consistent fuel delivery
• Integrated solenoid valve provides precise fuel cutoff at the nozzle, reducing post-fire drip
• Superior lift capability supports reliable priming in demanding installation conditions
• 5-year warranty from date of manufacture

Compatibility

Designed for use on Beckett SF and SM series oil burners. Compatible with fuel blends up to B100 biodiesel. Consult the original equipment documentation to confirm pump port configuration and rotation direction before installation.

Installation Notes

Installation and service of oil burner fuel pumps should be performed by a licensed oil burner technician in accordance with applicable local codes and NFPA 31 requirements. Shut off power to the burner and close the fuel supply valve before removing the existing pump. Verify that port size, rotation direction, and single-stage configuration match the original unit before mounting. Bleed the pump of air after installation and confirm clean ignition before returning the system to service.

Technical Specifications

• Pump Type: Single Stage Oil Burner Fuel Pump
• Speed: 3450 RPM
• Fuel Compatibility: Up to 100% Biodiesel (B100)
• Application: SF/SM Oil Burner
• Listing: UL Listed
• Warranty: 5 Years from Date of Manufacture

Standard Information

• Brand: RW BECKETT
• Manufacturer Part Number: pf203n2u
