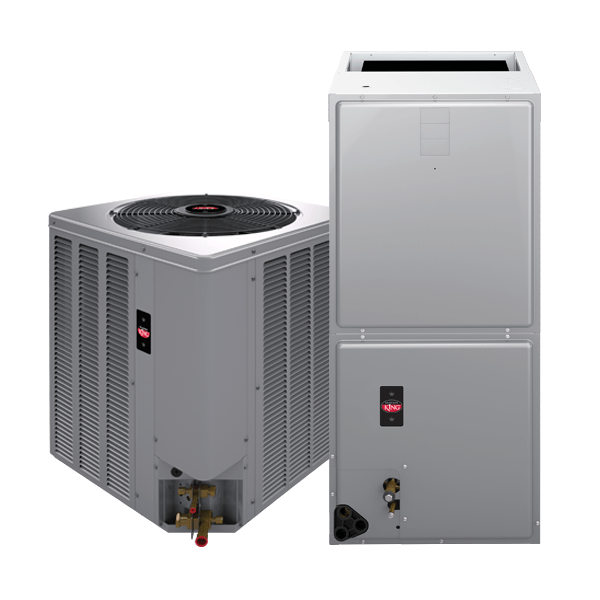

RUUD WH1P2417STANJA Standard Efficiency Air Handler PSC Motor 24000 Btuh

Product Description

The RUUD WH1P2417STANJA is a standard efficiency air handler with a PSC motor and a cooling capacity of twenty-four thousand BtuH. This air handler offers a versatile design allowing for different installation configurations. Its cabinet construction ensures durability with foil-faced insulation which enhances sound and thermal performance. A factory-installed indoor coil is included for ease of use.

• Four-way convertible design for upflow, downflow, and horizontal installation
• Robust cabinet design with foil-faced insulation for enhanced performance
• Includes a factory-installed indoor coil

Product Highlights

This air handler is suitable for both residential and commercial applications, providing reliable cooling performance in a variety of settings.

Product Information

Standard Information

• Brand: RUUD
• MPN: WH1P2417STANJA

Technical Specifications

• Blower Type: PSC
• BTU Cooling Rating: 24000 Btu/h
• Configuration: Convertible, Multi-Position
• Depth: 21.69 inches
• Height: 42.5 inches
• Horsepower: 1/5 hp
• Liquid Line (OD): 3/8 inches
• Max CFM: 800 cfm
• Phase: Single Phase
• Power Source: Electric
• Refrigerant: R-410A
• SEER: 15.0
• Stages: Single
• Suction Line (OD): 3/4 inches
• Tonnage: 2 Ton
• Volts: 208/230V
• Width: 17.5 inches
• Cooling BTU: 24000
• Maximum Air Flow: 800 CFM
• Minimum Air Flow: 600 CFM
• Frequency: 60 Hz
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• UL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 5 Years
• AMP: 15
• Minimum Circuit Ampacity: 5 Amps
• Recommended Breaker Size: 15 Amps
