Product Description

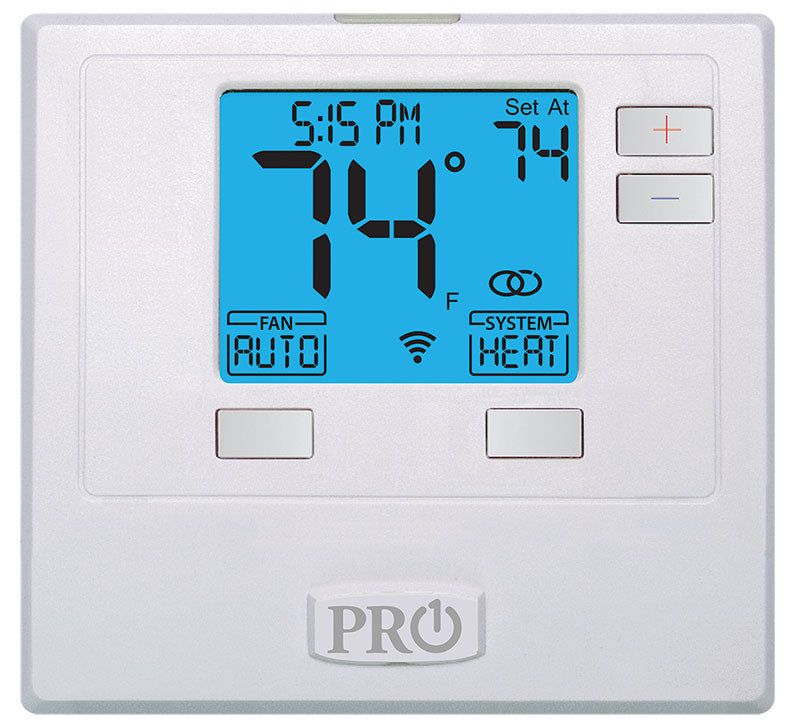

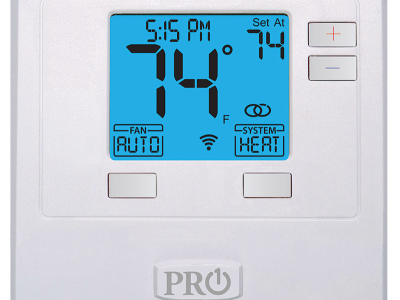

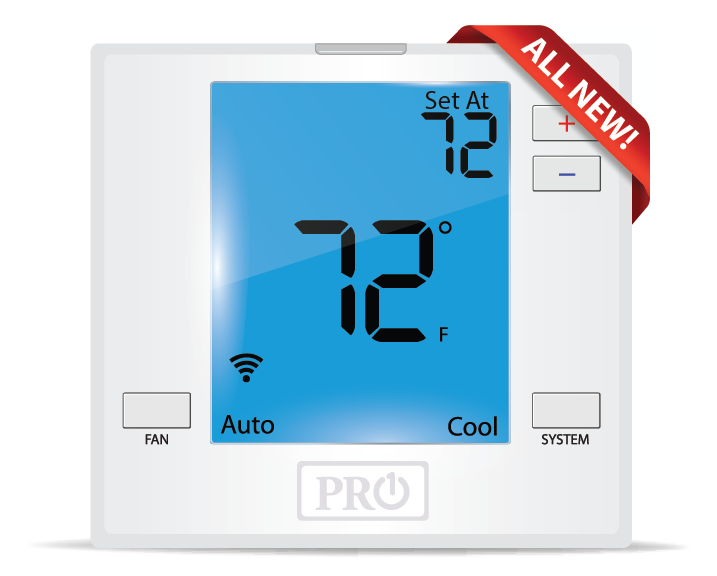

The RUUD T701I is a programmable Wi-Fi thermostat suitable for single-stage heating and cooling systems. It has a display size of seven square inches, featuring a blue backlight for enhanced visibility. This thermostat can be configured for both electric and gas heating systems. It allows for separate adjustments for heating and cooling temperature swings.
- Adjustable heating and cooling temperature swings
- Selects a five-minute compressor delay
- Color-coded terminal blocks for easy wiring
Product Highlights
Efficiently control your heating and cooling systems with the RUUD T701I, ensuring comfort and energy savings.
Product Information
Standard Information
-
Manufacturer Part Number: T701I
-
Power Source: Eighteen to thirty VAC, NEC Class II, fifty to sixty Hz
Technical Specifications
-
Voltage: Twenty-four Volt
-
Wiring: Wired
-
Type: Programmable
-
Stages: One Cool, One Heat
-
Heat Pump Compatible: Yes
-
Display Range: Forty-one degrees Fahrenheit to ninety-five degrees Fahrenheit
-
Control Temperature Range: Forty-four degrees Fahrenheit to ninety degrees Fahrenheit
-
Display Accuracy: Plus or minus one degree Fahrenheit
-
Operating Temperature: Thirty-two degrees to plus one hundred five degrees Fahrenheit
-
Operating Humidity: Ninety percent non-condensing maximum
-

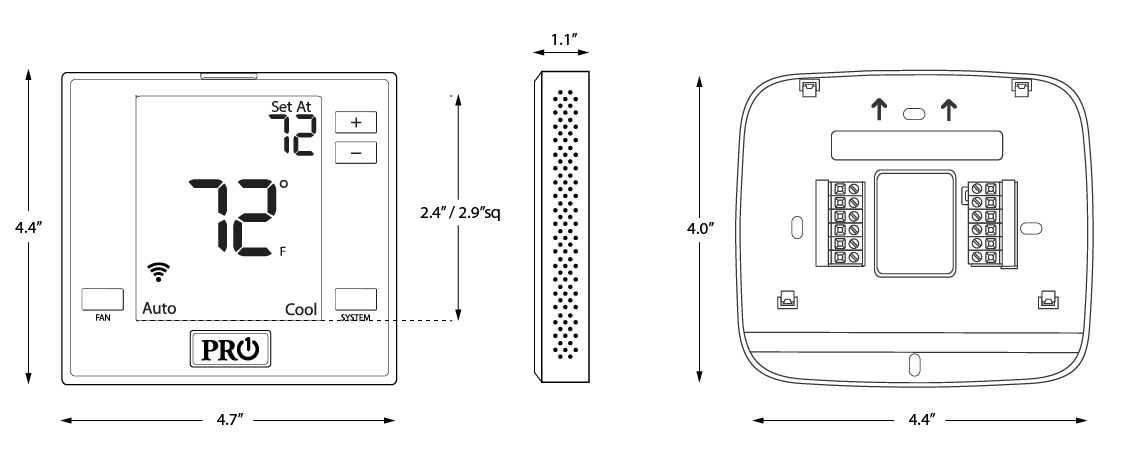

Dimensions: Four point seven inches width x four point four inches height x one point one inches depth
-
Height: Five point five inches
-
Width: One point six inches
-
Length: Five point four inches
-
Terminal Designations: B, C, G, O, Rc, Rh, Y, W/E, RH, W2
-
Humidistat: None
-
Load Rating: One amp per terminal, one point five amp maximum all terminals combined
