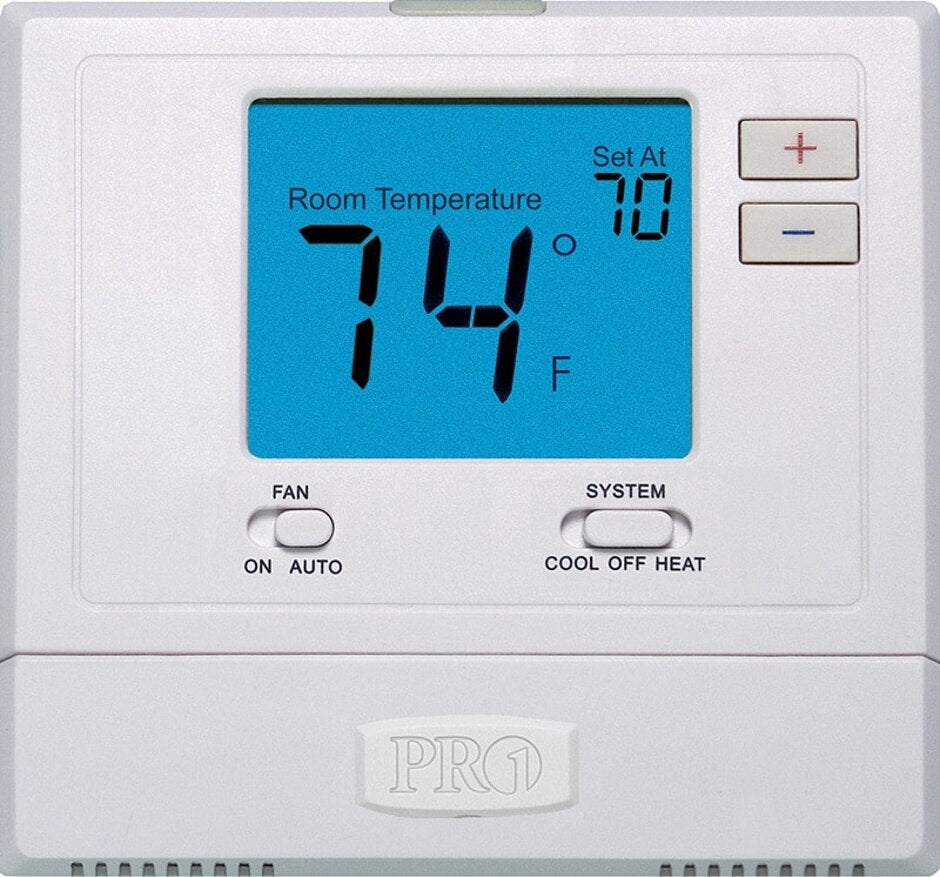

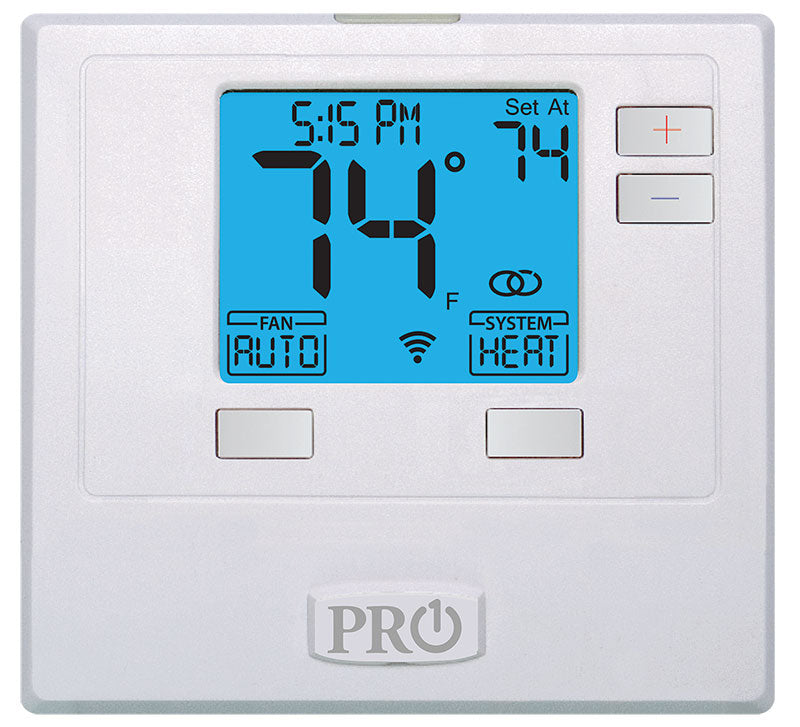

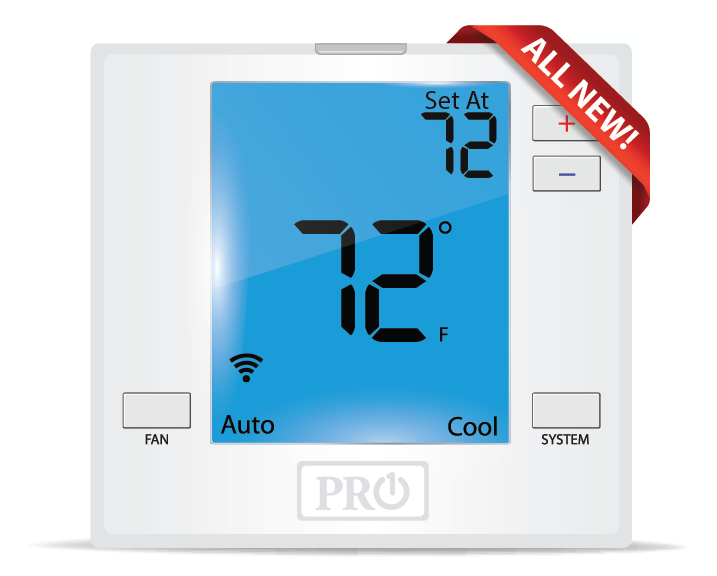

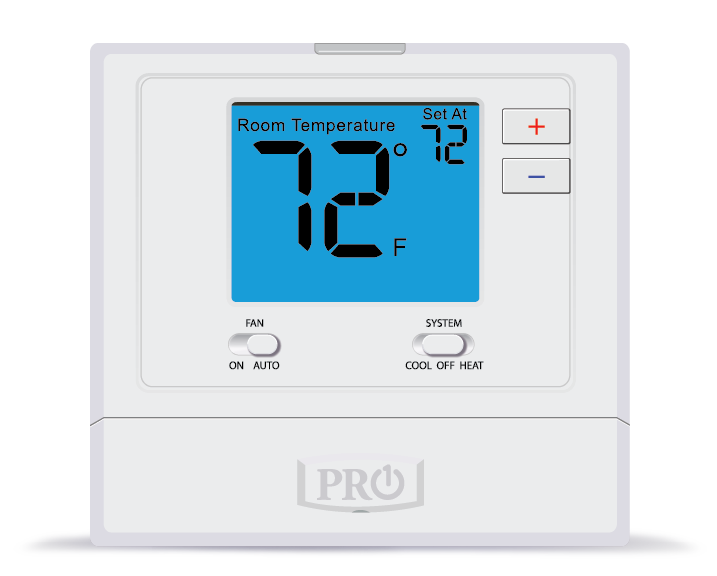

RUUD T701 RUUD Pro1 T701 Non-Programmable Thermostat

Product Description

The RUUD Pro1 T701 is a non-programmable thermostat with compatibility for single-stage heating and cooling systems, including conventional and heat pump systems. This device features a keypad interface and a backlit LCD display for user-friendly operation. It is capable of supporting millivolt heating and can be integrated with gas, electric, or oil heating systems. The thermostat operates on batteries or a twenty-four volt power source and includes a selectable five-minute compressor delay. Installation options include wall or junction box mounting through a universal sub-base.

• Compatible with single-stage heating and cooling systems.
• Backlit LCD display for easy reading.
• Supports gas, electric, or oil heating systems.

Product Highlights

Product Information

Standard Information

• Type: Non-Programmable
• Stages: 1 Cool, 1 Heat

Technical Specifications

• Heat Pump Compatible: Yes
• Power Source: Battery or 24 VAC
• Input Voltage: 18 to 30 VAC
• Terminal Designations: B, C, G, O, Rc, Rh, W, Y
• Display Type: Backlit
• User Interface: Keypad
• Mounting Type: Wall or Junction Box
• Operating Temperature: 32 to +105 °F (0 to +41 °C)
• Operating Humidity: 90% non-condensing maximum
• Width: 5.40 inches
• Height: 1.75 inches
• Overall Dimensions: 4-3/4 in x 4-7/16 in x 3/4 in
• Approximate Weight: 0.65 lbs
• Fuel Type: Electric or Gas configurable
• Millivolt Compatible: Yes
• Cooling Stages: 1 for Conventional System, 1 for Heat Pump System
• Heating Stages: 1 for Conventional System, 1 for Heat Pump System
• Frequency: 50/60 Hz
• Minimum Control Temperature: 44 °F
• Maximum Control Temperature: 90 °F
• Display Accuracy: ± 1 °F
• Swing (Cycle Rate): Heating adjustable from 0.2 °F to 2.0 °F; Cooling adjustable from 0.2 °F to 2.0 °F

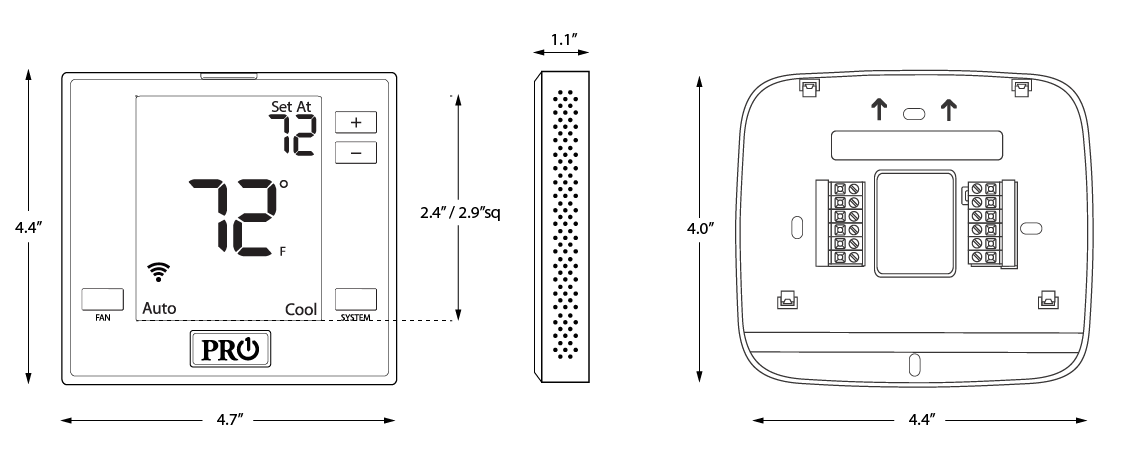

• Dimensions of Thermostat: 4.7W x 4.4H x 1.1D
