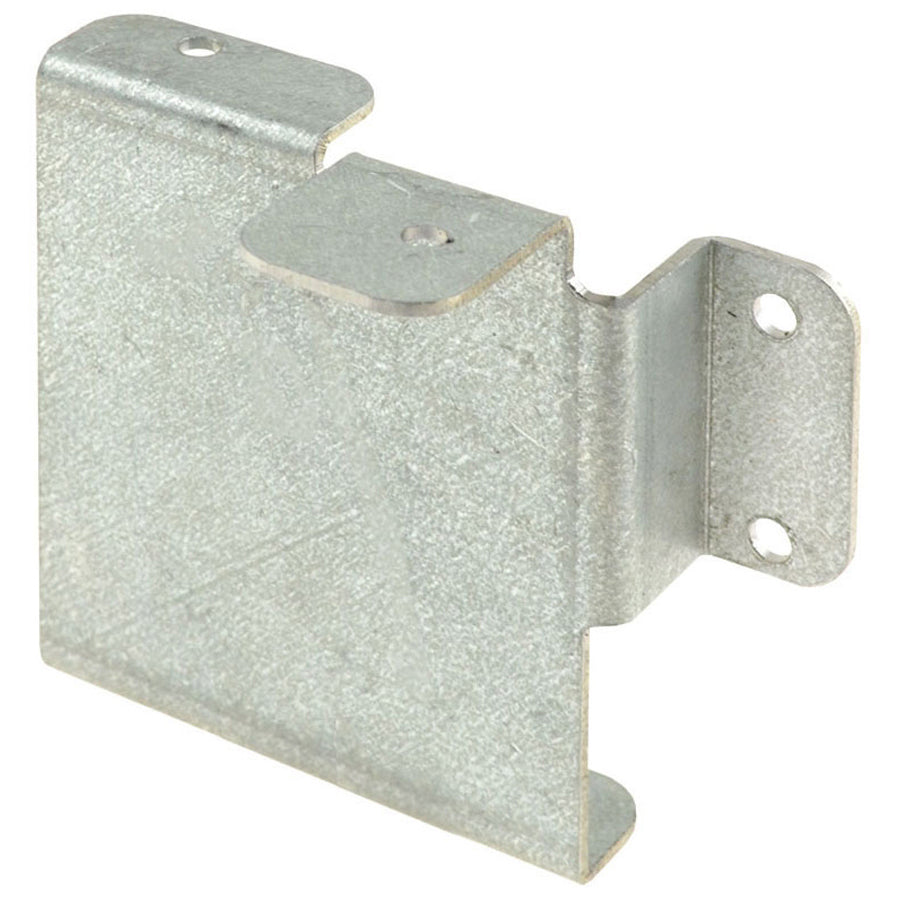

Ruud RXGY-CK Gas Furnace Conversion Kit Downflow Horizontal

Product Description

The RUUD RXGY-CK is a gas furnace conversion kit designed for downflow and horizontal installation configurations in 90-plus efficiency gas furnace systems. This kit provides the components necessary to convert compatible RUUD gas furnaces from one venting or airflow orientation to another, allowing installers to adapt equipment to fit the physical constraints of a given job site. At 0.49 pounds and compact dimensions, it ships light and stores easily in a service vehicle. Licensed HVAC technicians performing furnace installations or retrofits are the primary installers of this kit.

This conversion kit is specifically designed for use with RUUD R95PA and R96VA series gas furnaces configured in downflow or horizontal orientations. It is suited for residential applications where furnace placement in a closet, crawlspace, or utility room requires a non-upflow configuration. The kit supports proper combustion and airflow performance when the furnace is repositioned from its default orientation, and it is intended to be used only with the designated compatible furnace models listed by the manufacturer.

Key Features

• Enables downflow and horizontal installation configurations on compatible 90-plus efficiency gas furnaces
• Designed specifically for RUUD R95PA and R96VA gas furnace models
• Lightweight at 0.49 pounds for easy handling and transport
• Compact package measuring 23.75 inches in length, 8.25 inches in width, and 2.3 inches in height
• OEM-matched kit ensures proper fit and function without field fabrication

Compatibility

Designed for use with RUUD R95PA and R96VA series gas furnaces in downflow and horizontal installation configurations.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with the furnace manufacturer instructions and applicable local mechanical codes. Always shut off gas supply and disconnect electrical power to the furnace before beginning any conversion or service work. Refer to the furnace installation manual for orientation-specific wiring, venting, and drain routing requirements that apply when changing the airflow configuration. Do not attempt to use this kit on models other than those specified by RUUD.

Technical Specifications

• Package Length: 23.75 inches
• Package Width: 8.25 inches
• Package Height: 2.3 inches
• Package Weight: 0.49 pounds

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RXGY-CK
